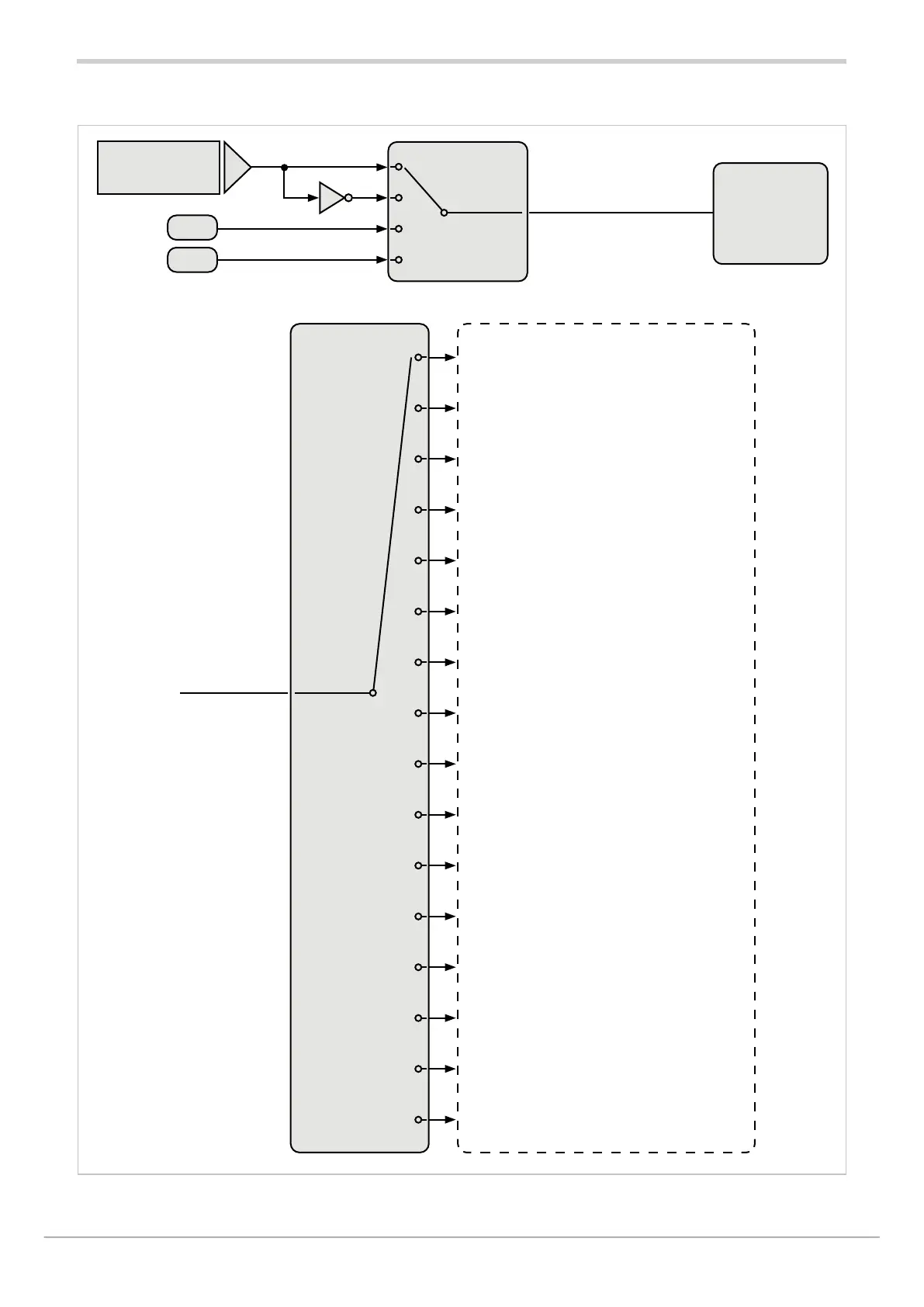

4.17.1. Functional diagram
Scrolling
message
MSG.IN pag. 131
OFF
ON
variable
selection
STAT pag. 128
Function
F.IN pag. 128
Digital
input
Stato
ingresso digitale
INPUT_DIG
Digital input
state
INPUT_DIG
NONE AU-MA1 LO-RE1 HOLD1
AL.ACK S.TUN1 A.TUN1 ON-OF
FKEY WRI.EN CY.CNT CY.RES
if the Multiset function is enabled in MODE.1:
SEL1.0 SEL1.1
if the Timer function is enabled in MODE.1:
T.STS1 T.RST1
if the Programmer 1 function is enabled in
parameter PROGR on the EN.FUN menu:
P.STS1 P.STR1 P.STP1 P.RST1
P.SKP1 ST.SK1 ST.EN1
if the Logic options function is enables :
LFB.IN KEY.U KEY.D KEY.F
if the Programmer 1 function is enabled in
parameter PROGR on the EN.FUN menu
P.PR1.0 P.PR1.1 P.PR1.2 P.PR1.3
If the Recipes of parameters function
is enabled in parameter RECP.N >= 2:
REC.0
If the Recipes of parameters function
is enabled in parameter RECP.N >= 3:
REC.1
If the Recipes of parameters function
is enabled in parameter RECP.N = 5:
REC.2
If the PID2.E function is enabled in EN.FUN:
AU.MA2 LO.RE2 HOLD2 S.TUN2
A.TUN2
if the Multiset function is enabled in MODE.2:
SEL2.0 SEL2.1
if the Programmer 1 function is enabled in
parameter PROGR on the EN.FUN menu:
P.PR2.0 P.PR2.1 P.PR2.2 P.PR2.3
P.STS2 P.STR2 P.STP2 P.RST2
P.SKP2 ST.SK2 ST.EN2
if the Timer function is enabled MODE.2:
T.STS2 T.RST2
if the Multiset function is enabled in MODE.1
and Multiset function is enabled in MODE.2:
SE12.0 SE12.1
if the Programmer 1 and 2 function is enabled in
parameter PROGR on the EN.FUN menu:
P.P12.1 P.P12.2 P.P12.3 P.SS12
P.ST12 P.SP12 P.RS12 P.SK12
ST.S12 ST.E12
If valve model with auxiliary input present, function
FUnC=VALV.P and custom linear type, and
with one output configured as V.OPEN
and one configured as V.CLOS:
VALV.P
*) Verranno rilevate commutazioni con frequenza massima di 25 Hz con tempo di ON e di OFF pari ad almeno 20 msec.
