3.4. Setting up quick configuration
The quick configuration menu lets you quickly configure and start a controller.
To do this, it uses default values for many of the parameters assigned to the functions and other parameters are
not activated.
With this configuration, the controller can satisfy the majority of operating requirements.
You can set up the first configuration with the main configuration menu (see paragraph “4.1 Programming/Configuration
Menu” on page 51), which gives access to all of the parameters.
For purposes of example, some of the controller’s main functions are listed below, with a list of parameters to be changed
after running fast configuration to adapt the controller to specific working conditions.

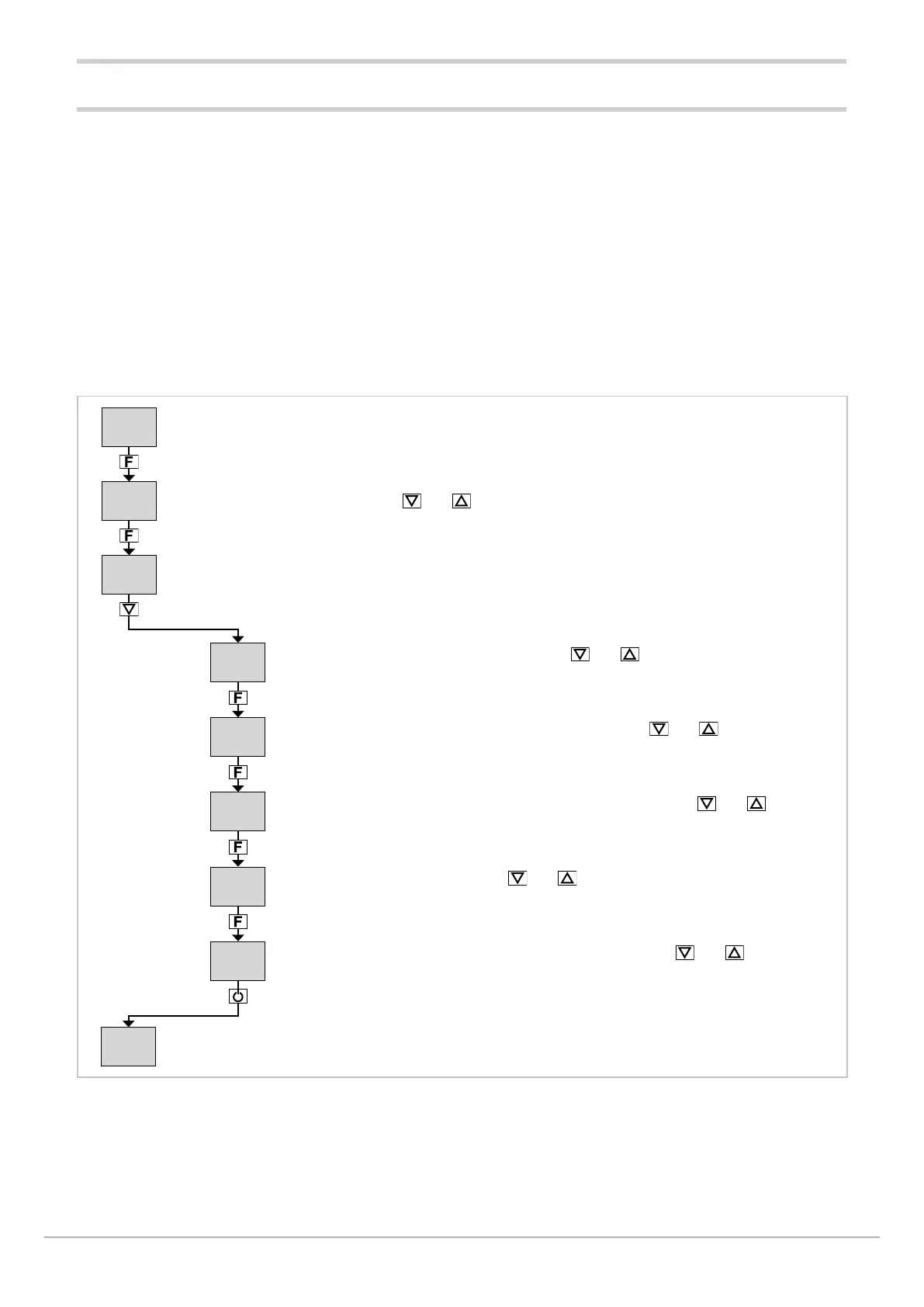

3.4.1. Setting up the Alarm
If at least one output was configured as Alarm in the fast configuration.
0000
0000
di.in
Ab.rE
HYSTE
MSG.AL
0000
0000
ALRM.N
ALARM
0
PASS1
Home page
Home page
Press > 2 seconds
Press > 2 seconds
Enter password (default = 1) with the
and
Select the Alarm number (default = 1) with the and keys
Description of parameter and list of options on page. 137
Set the alarm as direct or inverse (default = Direct) with the
and keys
Description of parameter and list of options on page.90
Set the alarm as absolute or deviation (default = Absolute) with the
and keys
Description of parameter and list of options on page. 90
Set hysteresis (default = -1) with the
and keys
Description of parameter and list of options on page. 92
Select the message assigned to the alarm (default = 0) with the
and keys
Description of parameter and list of options on page. 92
Press 3 times (if the model does not have remote setpoint input and current
transformer options and is not the Programmer)
Press twice
Press 4 times
Press twice
Submenu
ALARM
