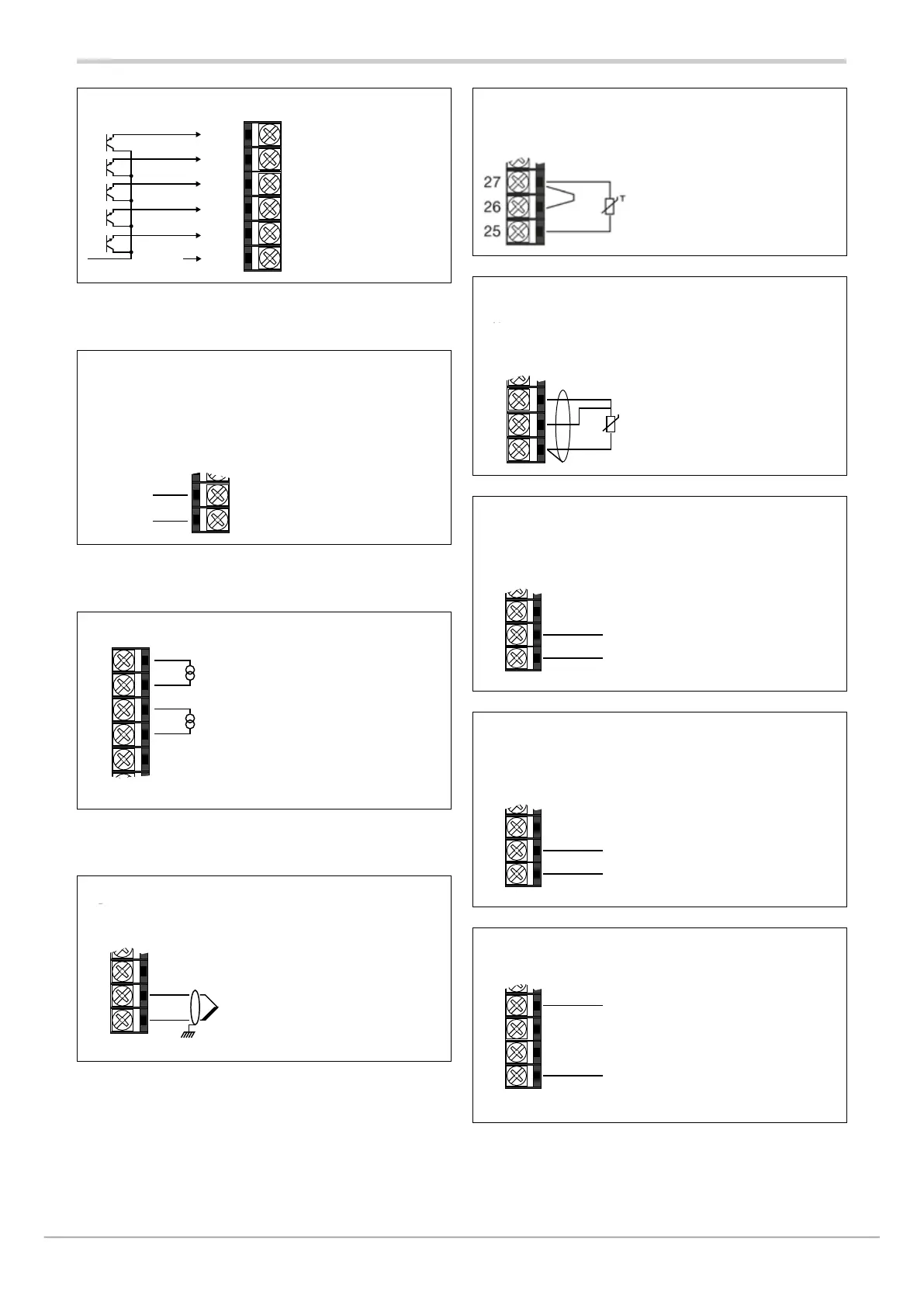

Digital inputs
41
42
43
44
45
46
COM
IN1
IN2
IN3
IN4
IN5
GND
Digital Inputs PNP
+12/24 V
max 3,6 mA
2.4.6. Serial line
Serial line
7
8
9
46
47
48
A (Data -)
B (Data +)
Serial line
RS485 2-wires
2.4.7. CT Inputs
Inputs CT1, CT2
36
35
34
33
32
31
CT1
~
~
CT2
~
~
Current transformer
50 mAac, 10 , 50/60 Hz
Second current transformer
for 2-phase / 3-phase load
2.4.8. Auxiliary inputs (AUX1)
Input TC [with option auxiliary input = 1]
6
5
4
27
26
25
+
-
Available thermocouples:
J, K,R, S, T, C, D, B, E, L, L-GOST,
U, G, N,
Pt20Rh-Pt40Rh
ITS90 or custom linearization
Respect polarity
For extensions, use a compensated
cable
Input PT100/JPT100 - 2-wires connection
[with option auxiliary input = 1]
Attention:
with this type of connection the
line resistance can introduce
measurement error, we recommend
that you use wires of adequate screen.
Input PT100/JPT100 - 3-wires connection
[with option auxiliary input = 1]
6
5
4
27
26
25
T
Attention:
with this type of connection the line
resistance can introduce measurement
error, we recommend that you use
wires of adequate screen.
The resistance of the three wires must
be equal, the line resistance must be
less than 20 ohm.
Linear input (V) [with option auxiliary input = 1]
6
5
4
27
26
25
+
-
Linear input in direct voltage
0...60 mV Ri > 100 MΩ
Linear input (V, I) [with option auxiliary input = 2 o 3]
6
5
4
27
26
25
+
-
Linear input in direct voltage
0...1 V Ri > 400 KΩ
Linear direct current input
0/4...20 mA, Ri = 50 Ω.
Linear input (V) [with option auxiliary input = 2 o 3]
6
5
28
27
26
25
+
-
Linear input in direct voltage
0...5 V / 0...10 V Ri > 400 KΩ
