8-Port Gigabit Ethernet SFP XPIM Overview
The ports of the 8-Port Gigabit Ethernet small form-factor pluggable Gigabit-Backplane
Physical Interface Module (SFP XPIM) can be used for connecting to Ethernet WAN
service as well as for local server connectivity at Gigabit Ethernet speeds. The XPIM
enables Layer 2 line-rate Gigabit switching and system-processor dependent Layer 3
service with connection of up to eight SFP Gigabit Ethernet ports. The 8-Port Gigabit
Ethernet SFP XPIM complements the on-board 10/100/1000 Mbps Ethernet interfaces
with extended WAN connectivity. It supports a variety of transceivers. This XPIM can be
used in copper and optical environments to provide maximum flexibility when upgrading
from an existing infrastructure to Metro Ethernet.
The 8-Port Gigabit Ethernet XPIM must be installed in one of the following 10-Gigabit or
20-Gigabit GPIM slots on the services gateway:
•
SRX550 Services Gateway—Slot 3 or 6
•
SRX650 Services Gateway—Slot 2 or 6
The earliest supported release on the 8-Port Gigabit Ethernet XPIM is Junos OS Release
12.1X44-D10.
Figure 21 on page 91 shows the front panel of the 8-Port Gigabit Ethernet SFP XPIM.

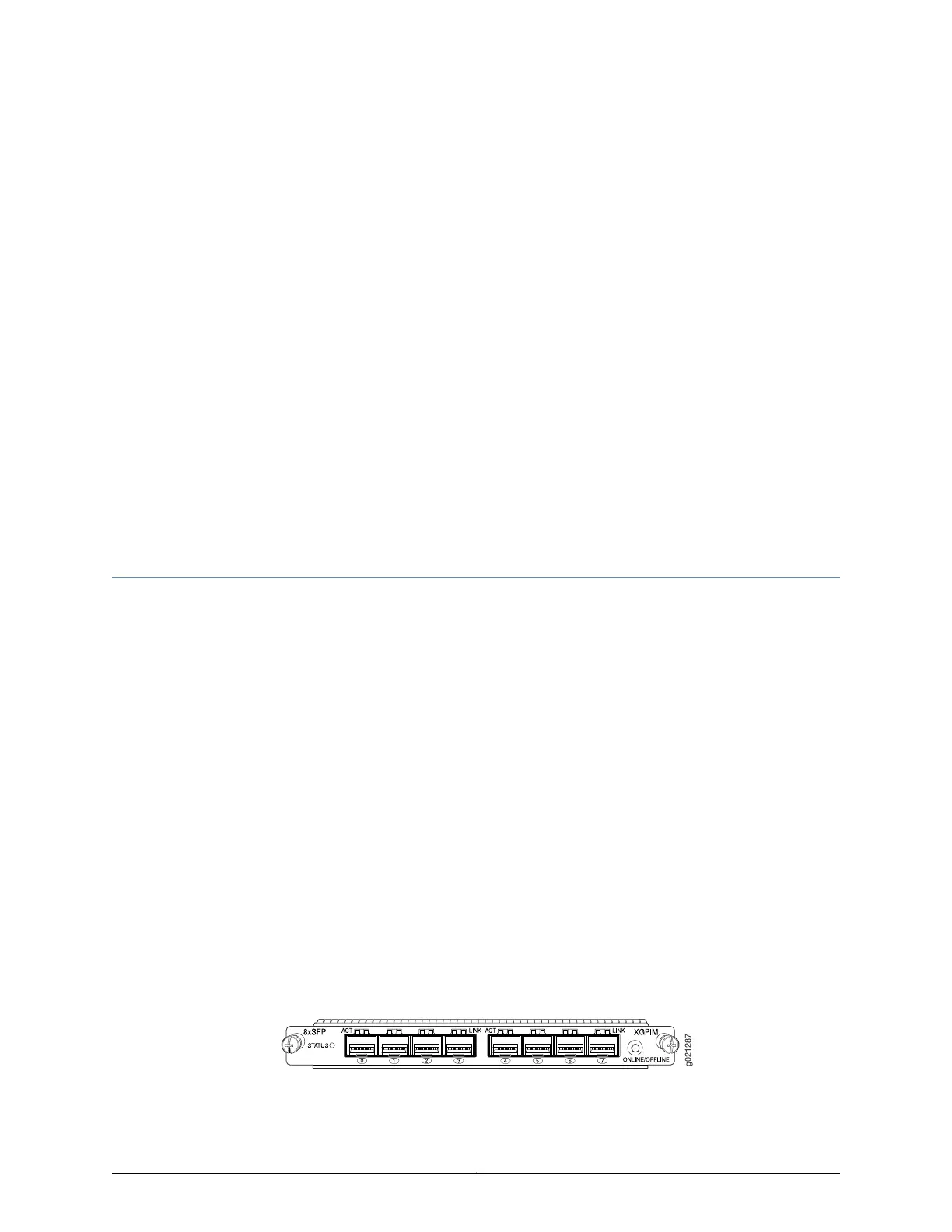

Figure 21: 8-Port Gigabit Ethernet SFP XPIM Front Panel
91Copyright © 2015, Juniper Networks, Inc.
