Juniper SRX Series User Manual

CHAPTER 10
1-Port VDSL2 (Annex A) Mini-Physical
Interface Module
•
1-Port VDSL2 (Annex A) Mini-Physical Interface Module Overview on page 71
•
1-Port VDSL2 (Annex A) Mini-Physical Interface Module Key Features on page 72
•
1-Port VDSL2 (Annex A) Mini-Physical Interface Module Hardware
Specifications on page 72
•
1-Port VDSL2 (Annex A) Mini-Physical Interface Module LEDs on page 73
•
1-Port VDSL2 (Annex A) Mini-Physical Interface Module Supported Profiles on page 74
1-Port VDSL2 (Annex A) Mini-Physical Interface Module Overview
Very-high-bit-rate digital subscriber line (VDSL) technology is part of the xDSL family of
modem technologies, which provide faster data transmission over a single flat untwisted
or twisted pair of copper wires.
The SRX210 Services Gateway supports the 1-Port VDSL2 (Annex A) Mini-Physical
Interface Module (Mini-PIM). The 1-Port VDSL2 (Annex A) Mini-PIM carries the Ethernet
backplane. When the Mini-PIM is plugged into the chassis, the Mini-PIM connects to one
of the ports of the baseboard switch. The 1-Port VDSL2 (Annex A) Mini-PIM on the SRX
Series Services Gateway provides ADSL backward compatibility.
The 1-Port VDSL2 (Annex A) Mini-PIM is compatible with the ITU-T G.993.2 (VDSL2)
standard.

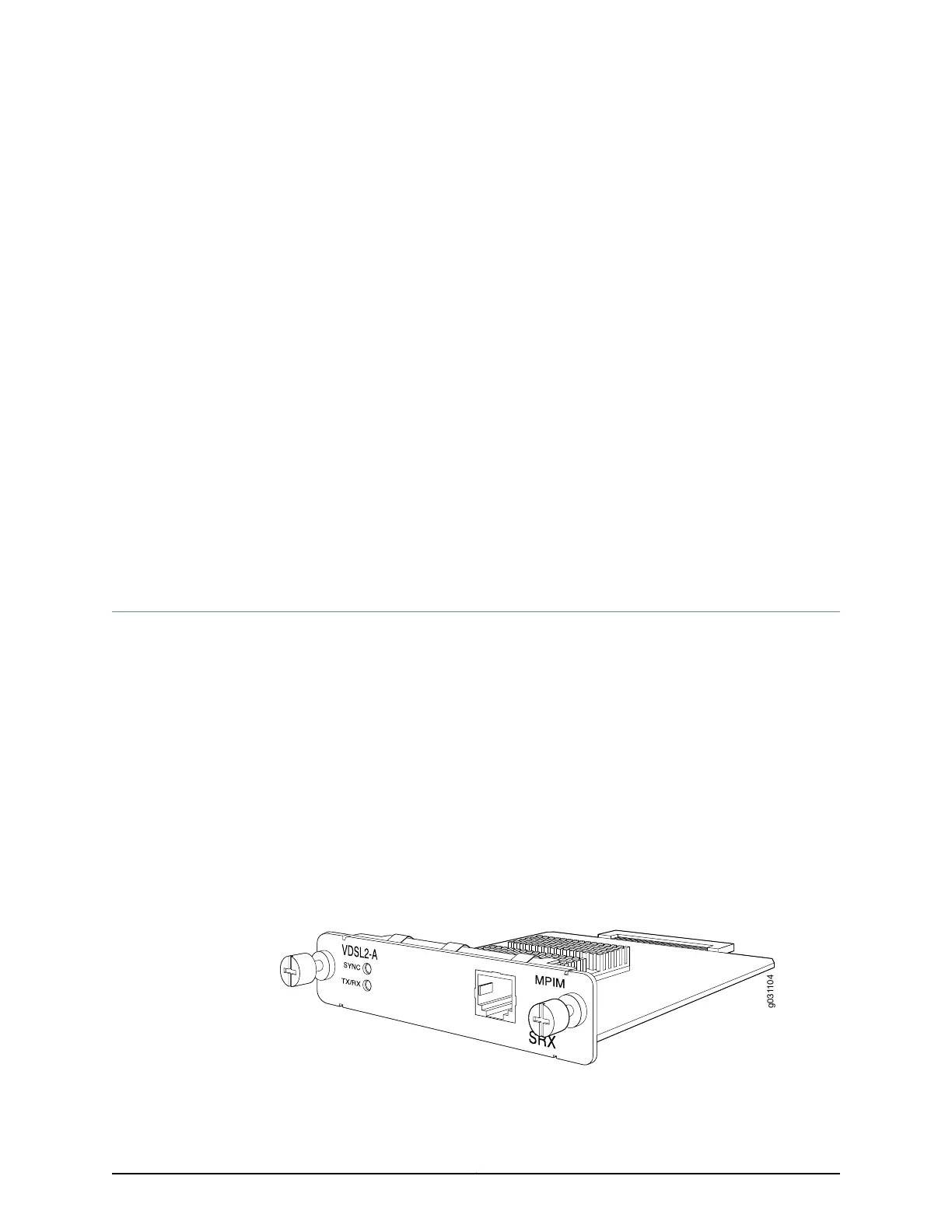

Figure 15 on page 71 shows the 1-Port VDSL2 (Annex A) Mini-PIM.
Figure 15: VDSL2 Annex A Mini-PIM
g031104
71Copyright © 2015, Juniper Networks, Inc.
