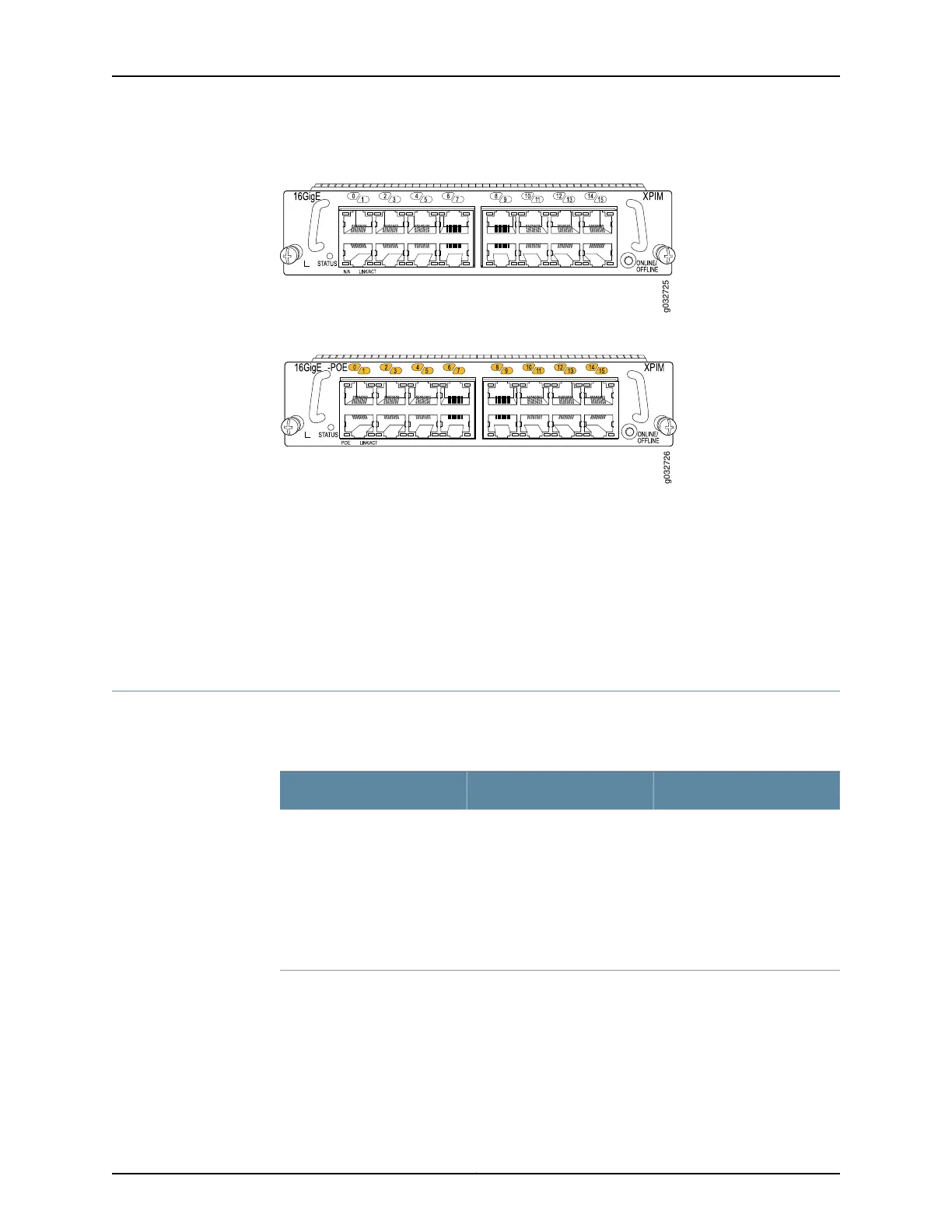

Figure 23: 16-Port Gigabit Ethernet XPIM
Figure 24: 16-Port Gigabit Ethernet with PoE XPIM
Related
Documentation
16-Port Gigabit Ethernet XPIM Key Features on page 105•
• 16-Port Gigabit Ethernet XPIM Hardware Specifications on page 106
• 16-Port Gigabit Ethernet XPIM LEDs on page 106
• 16-Port Gigabit Ethernet XPIM Components on page 104
• 16-Port Gigabit Ethernet XPIM Basic Configuration
16-Port Gigabit Ethernet XPIM Components
The 16-Port Gigabit Ethernet XPIM contains the components listed in Table 56 on page 104.
Table 56: 16-Port Gigabit Ethernet XPIM Components
DescriptionLocationComponent
Use the XPIM
ONLINE/OFFLINE button to
gracefully shut down the XPIM.
Right side of the XPIMXPIM ONLINE/OFFLINE button
Only the SRX650 Services
Gateway supports
hot-swappable functionality
for GPIMs. The SRX550
Services Gateway does not
support hot-swappable
functionality for GPIMs.
Copyright © 2015, Juniper Networks, Inc.104
SRX Series Services Gateways for the Branch Physical Interface Modules Reference
