Table 76: RJ-45 Cable (RJ-45 to Four RJ-11 Connectors) Pinout Details
Plug NumberConnections
RJ-11 Pin
NumberConnections
RJ-45 Pin
Number
P1Tip 1 of 1st port3Tip 11
Ring 1 of 2nd port4Ring 12
P2Tip 2 of 3rd port3Tip 23
Tip 0 of 1st port3Tip 04
P3Ring 0 of 1st port4Ring 05
Ring 2 of 3rd port4Ring 26
P4Tip 3 of 4th port3Tip 37
Ring 3 of 4th port4Ring 38

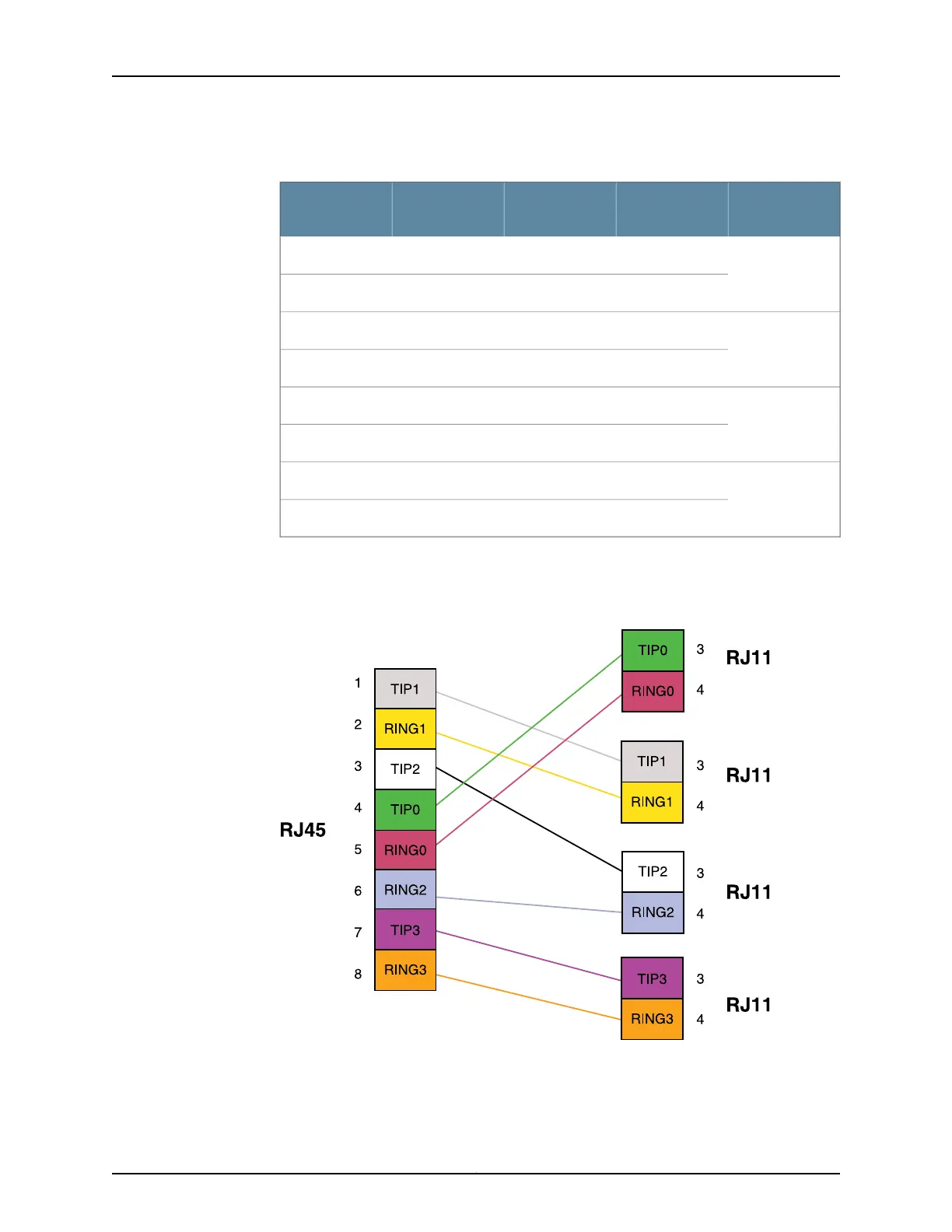

Figure 36 on page 137 shows the RJ-45 cable design that connects to four RJ-11 cable
connections.
Figure 36: RJ-45 Cable Design (RJ–45 to Four RJ-11 Connectors)
RJ-45 Cable (RJ-45 to Two RJ-11 Connectors) Pin Assignment
137Copyright © 2015, Juniper Networks, Inc.
