12 Output Wiring Procedures
12.3 External Wiring of Transistor Output (Sink/Source) Type
11
High-Speed Counters
12
Output Wiring
13
Wiring for Various Uses
14
Test Run, Maintenance, Troubleshooting
15
IInput/Output Powered Extension Units
16
Input/Output Extension Blocks
17
Extension Power Supply Unit
18
Other Extension Units and Options
19
Display Module
20
Terminal Block

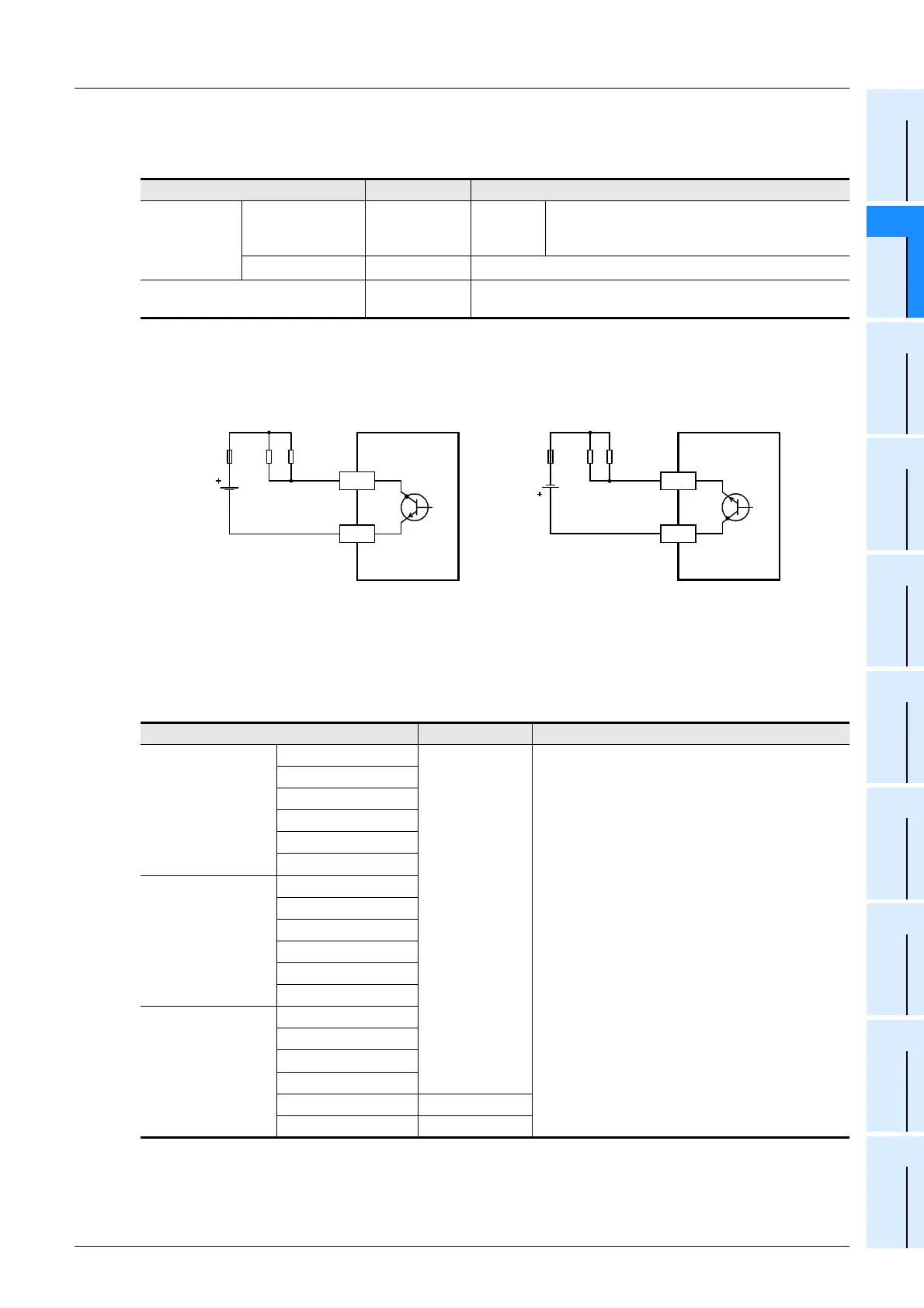

5. Response time
The time from when the PLC drives (or shuts down) the photocoupler until the transistor is turned on (or off) is
shown in the following table.
*1. The transistor OFF time is longer under lighter loads.
For example, under a load of 24V DC 40mA, the response time is approx. 0.3ms. When response
performance is required under light loads, provide a dummy resistance as shown to the right to
increase the load current.
- Sink output type - Source output type
6. Output current
The maximum resistance loads for the input/output powered extension units and output extension blocks are
shown in the following table.
The ON voltage of the output transistor is approx. 1.5V.
When driving a semiconductor element, carefully check the input voltage characteristics of the applied
element.
7. Open circuit leakage current
0.1mA or less
Classification Response time Load current
Main unit
Y000 to Y002 5 µs or less
5 to 24V
DC 10mA
or more
When using an instruction related to pulse train
output or positioning, make sure to set the load
current to 10 to 100 mA (5 to 24V DC).
Y003 or more 0.2 ms or less
24V DC 200 mA or more
*1
Input/output powered extension unit
Output extension block
0.2ms or less
24V DC 200 mA
*1
Model Output current Limitation
Main unit
FX
3U-16MT-ES(S)
0.5A/point
The total load current of resistance loads per
common terminal should be the following value.
1 point/common: 0.5A or less
4 points/common: 0.8A or less
8 points/common: 1.6A or less
For FX
2N-16EYT-C:
16 points/common: 1.6A or less
For FX
2N-8EYT-H:
4 points/common: 2A or less
FX
3U-32MT-ES(S)
FX
3U-48MT-ES(S)
FX
3U-64MT-ES(S)
FX
3U-80MT-ES(S)
FX
3U-128MT-ES(S)
Input/output powered
extension units
FX
2N-32ET-ESS/UL
FX
2N-48ET-ESS/UL
FX
2N-48ET-DSS
FX
2N-32ET
FX
2N-48ET
FX
2N-48ET-D
Extension block
FX
2N-16EYT-ESS/UL
FX
2N-8EYT-ESS/UL
FX
2N-16EYT
FX
2N-8EYT
FX
2N-8EYT-H 1A/point
FX
2N-16EYT-C 0.3A/point
PLC
Y
COM1
Dummy
resistance
LoadFuse
PLC
Y
+V0
Dummy
resistance
Load
Fuse
