Mitsubishi FX3U Series User Manual

FX3U Series Programmable Controllers
User’s Manual - Hardware Edition
333
18 Other Extension Devices and Optional Units (External Dimensions and Terminal Arrangement)
18.1 Special Function Units/Blocks
11
High-Speed Counters
12
Output Wiring
13
Wiring for Various Uses
14
Test Run, Maintenance, Troubleshooting
15
IInput/Output Powered Extension Units
16
Input/Output Extension Blocks
17
Extension Power Supply Unit
18
Other Extension Units and Options
19
Display Module
20
Terminal Block

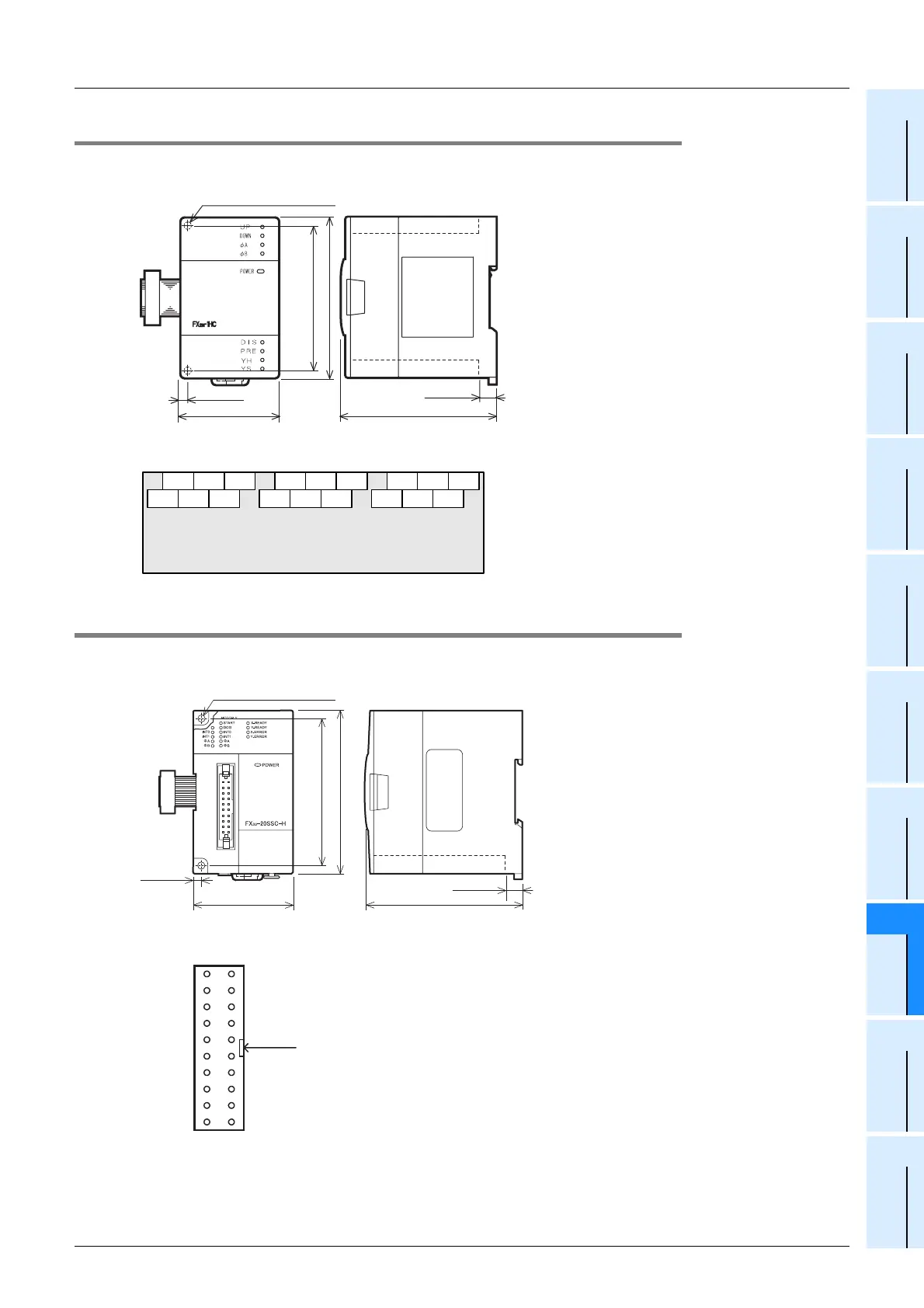

18.1.13 FX2N-1HC
External Dimensions
•MASS(Weight): 0.3kg (0.66lbs)
•Installation: DIN rail of 35 mm (1.38") in
width or screws
•Accessories: Label for indication of special
unit/block number,
Manual supplied with product
•Terminal block: M3 screws
•The extension cable is already connected to
the extension block
Terminal Layout
18.1.14 FX3U-20SSC-H
External Dimensions
•MASS(Weight): 0.3kg (0.66lbs)
•Installation: DIN rail of 35 mm (1.38") in
width or screws
•Accessories: Label for indication of special
unit/block number,
Dust Proof sheet,
FX
2NC-100MPCB Power
supply cable (1m (3’3")),
Manual supplied with product
•Terminal block: Connector
•The extension cable is already connected to
the extension block
Terminal Layout
87(3.43")
80(3.15")
(mounting hole pitch)
90(3.55")
Unit:mm (inches)
4(0.16")
9(0.36")
55(2.17")
2-φ4.5 mounting holes
A12+
A24+ A5+ B24+
B12+
B5+ XD24
COMP
XP5 YH+
B- XD5
XP24
COMD
YS+
YH- YS-A-
2-φ4.5 mounting holes
55(2.17")
80(3.15")
(mounting hole pitch)
90(3.55")
4(0.16")
9(0.36")
Unit:mm (inches)
87(3.43")
Y-INT0
X-INT0
NC
NC
Y-INT1
X-INT1
Y-
φA+
X-φA+
Y-φA-
X-φA-
Y-φB+
X-φB+
Y-φB-
X-φB-
Y-DOG
X-DOG
S/S
S/S
Y-START
X-START
Notch
