FX3U Series Programmable Controllers
User’s Manual - Hardware Edition
20 FX-16/32E*-*-TB (Terminal Block)
20.7 FX-16EYR-TB
20.7 FX-16EYR-TB
The FX-16EYR-TB is used by connecting it to the FX2N series output extension block (transistor).
The applications shown below are not supported.

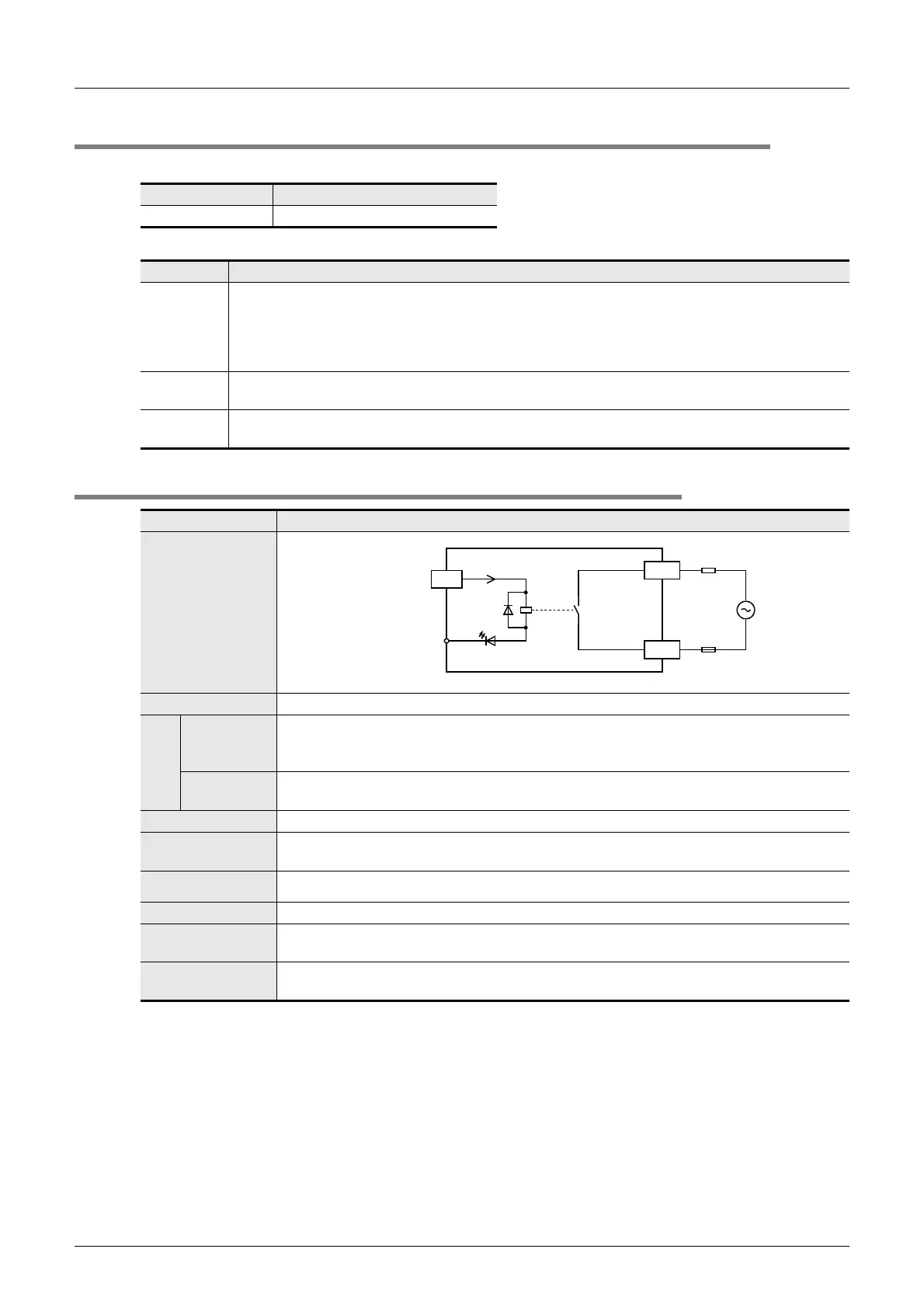

20.7.1 Specifications
*1. This response time does not include the response delay at the PLC.
Output Connector
Connectable models FX
2N-16EYT-C (sink output)
Unsupported Applications
Pulse
outputs
Pulse Y output (PLSY) instruction, acceleration/deceleration setup (PLSR) instruction, pulse width
modulation (PWM) instruction, DOG search zero return (DSZR) instruction, interruption positioning
(DVIT) instruction, batch data positioning mode (TBL) instruction, absolute current value read (ABS)
instruction, zero return (ZRN) instruction, variable speed pulse output (PLSV) instruction, drive to
increment (DRVI) instruction, drive to absolute (DRVA) instruction
Time division
input
Input matrix (MTR) instruction, hexadecimal input (HKY) instruction, digital switch (DSW) instruction,
arrow switch (ARWS) instruction
Time division
output
Seven segment with latch (SEGL) instruction, print (ASCII Code) (PR) instruction
Item Relay output
Input/output
circuitry
Load voltage 250V AC or less, 30V DC or less
Max.
load
Resistance
load
2 A / point
The total load current of resistance loads per common terminal should be the following value.
• 4 output points/common terminal : 8 A or less
Inductive
load
80 VA
Min. load 5V DC, 2mA Reference value
Open-circuit
leakage current
−
Response time
*1
Approx. 10 ms
Circuit isolation Mechanical isolation
Operation
indicators
LED lights when relay coil power is supplied
Power
consumption
1.92 W (80 mA 24V DC)
0 to 7
COMn
LED
24V DC
5mA
Fuse
CN1
Connector side
External wiring
24+
