18 Other Extension Devices and Optional Units (External Dimensions and Terminal Arrangement)
18.3 Special Adapters
11
High-Speed Counters
12
Output Wiring
13
Wiring for Various Uses
14
Test Run, Maintenance, Troubleshooting
15
IInput/Output Powered Extension Units
16
Input/Output Extension Blocks
17
Extension Power Supply Unit
18
Other Extension Units and Options
19
Display Module
20
Terminal Block

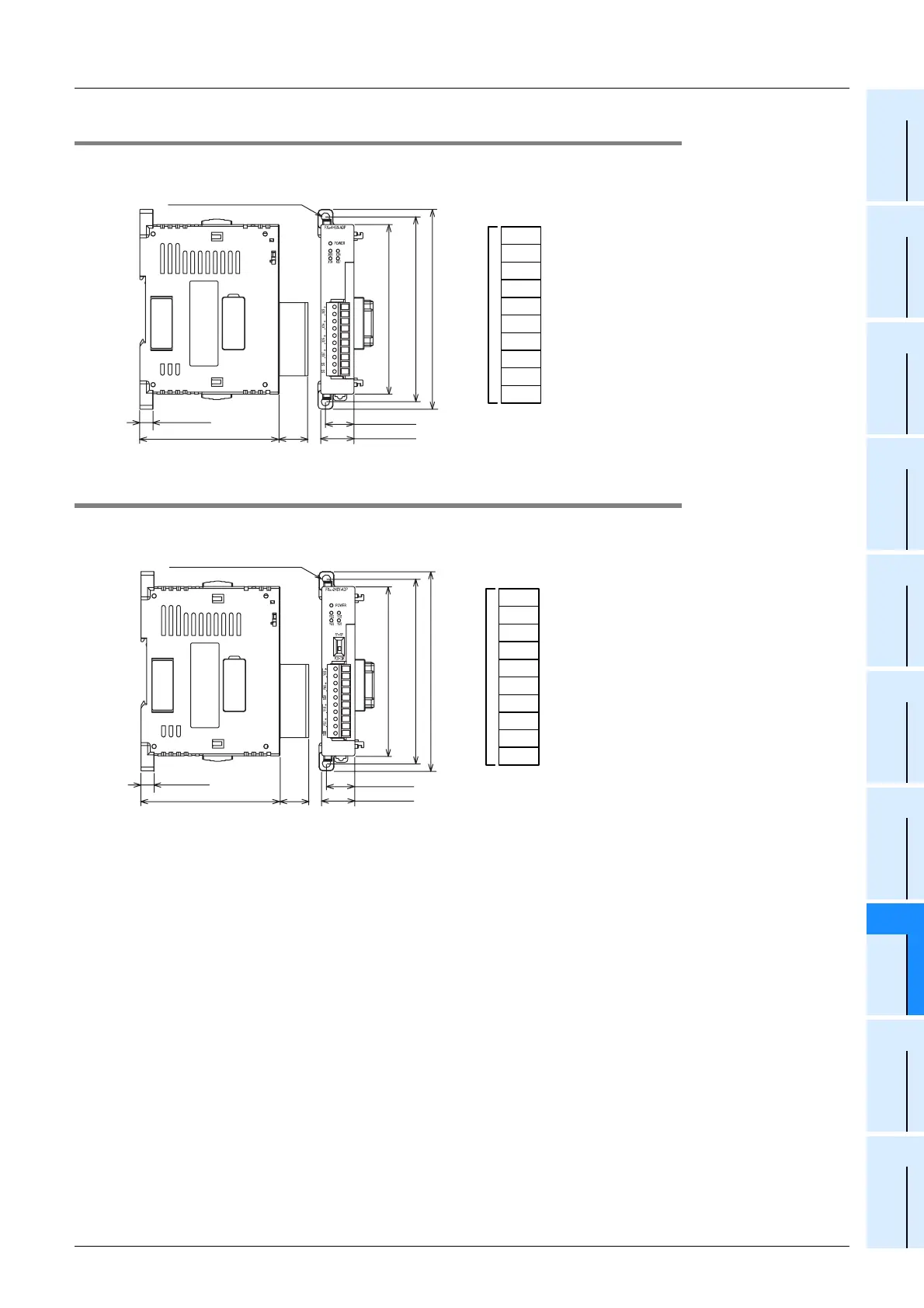

18.3.7 FX3U-4HSX-ADP
External Dimensions, Terminal Layout
•MASS(Weight): 80g (0.18lbs)
•Installation: DIN rail of 35 mm (1.38") in
width or screws
•Accessories:
Manual supplied with product
•Terminal block: European type
18.3.8 FX3U-2HSY-ADP
External Dimensions, Terminal Layout
•MASS(Weight): 80g (0.18lbs)
•Installation: DIN rail of 35 mm (1.38") in
width or screws
•Accessories:
Manual supplied with product
•Terminal block: European type
•Switch: Output form switching
between PLS
•EDIR and
FP
•ERP
7(0.28")
15.1(0.6")
17.6(0.7")
98(3.86")
(mounting hole pitch)
90(3.55")
106(4.18")
Unit:mm (inches)
74
(2.92")
15.5
(0.62")
2-φ4.5 mounting holes
X0/3+
X0/3-
X1/4-
X2/5+
X2/5-
X6/7+
X6/7-
SG
10
poles
X1/4+
SG
7(0.28")
15.1(0.6")
17.6(0.7")
98(3.86")
(mounting hole pitch)
90(3.55")
106(4.18")
Unit:mm (inches)
74
(2.92")
15.5
(0.62")
2-φ4.5 mounting holes
Y0/2+
Y0/2-
Y4/6-
SGA
Y1/3+
Y1/3-
Y5/7+
SGB
10
poles
Y4/6+
Y5/7-
