FX3U Series Programmable Controllers
User's Manual - Hardware Edition
34
2 Features and Part Names
2.2 Names and Functions of Parts
2.2.2 Sides
[1]
Cover of special adapter
connector
Remove this cover, and connect the 1st special adapter to the connector
(when the expansion board is installed).
When the expansion board is not installed, the connector is not provided.
[2]
Cover of high-speed input/
output special adapter
connector
Remove this cover, and connect the first high-speed input special adapter
(FX
3U-4HSX-ADP) or high-speed output special adapter (FX3U-2HSY-
ADP) to the connector. When the communication/analog special adapter
is connected, this connector is not used.
[3]
Expansion board securing
screw holes (2 places)
These holes are designed to secure the expansion board with screws
(supplied with the expansion board). The expansion board dummy cover
is fitted before shipment. Remove the dummy cover, and fit the board.
[4]
Nameplate The product model name, control number and power supply
specifications are shown.
[5]
DIN rail mounting groove The unit can be installed on DIN46277 rail (35 mm (1.38") wide).

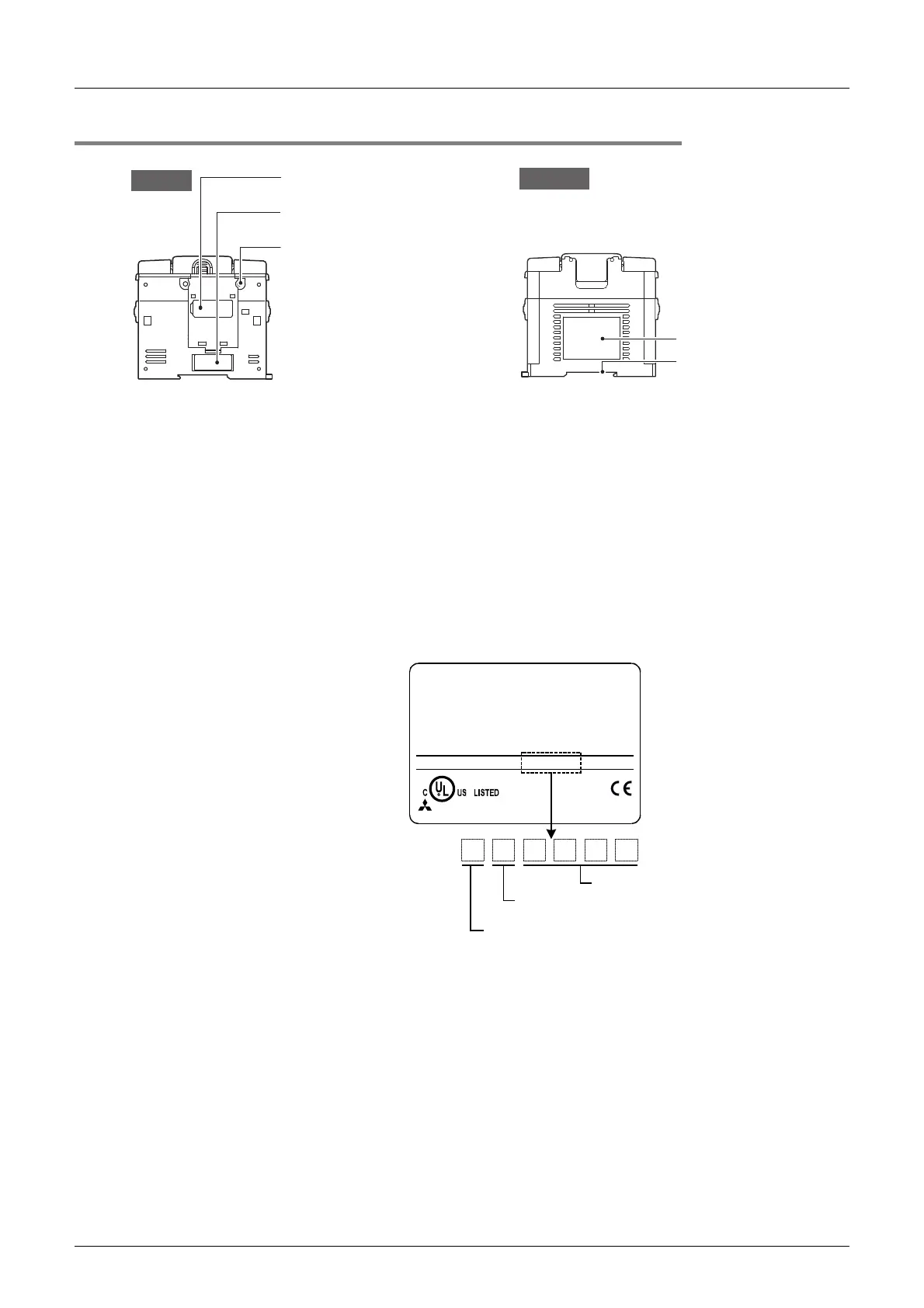

Left side
[1] Cover of special adapter
connector
[2] Cover of high-speed input/output
special adapter connector
[3] Expansion board securing
screw holes
Right side
[4] Nameplate
[5] DIN rail mounting groove
5 7 0 0 0
Control number
Year (Example: 2005): Last digit of year
1
Month (Example: July):(1 to 9 = January to September,
X = October, Y = November, Z = December)
MITSUBISHI
MODEL
100-240VAC 50/60Hz 40W
SERIAL
FX
3U
-48MR/ES
PROGRAMMABLE
CONTROLLER
570001
OUT:30VDC/240VAC 2A(COS
φ
=1)
80M1 IND. CONT. EQ.
MITSUBISHI ELECTRIC CORPORATION
MADE IN JAPAN
Example: FX
3U
-48MR/ES (manufacturer's serial number: 570001)
