Mitsubishi FX3U Series User Manual

FX3U Series Programmable Controllers
User’s Manual - Hardware Edition
342

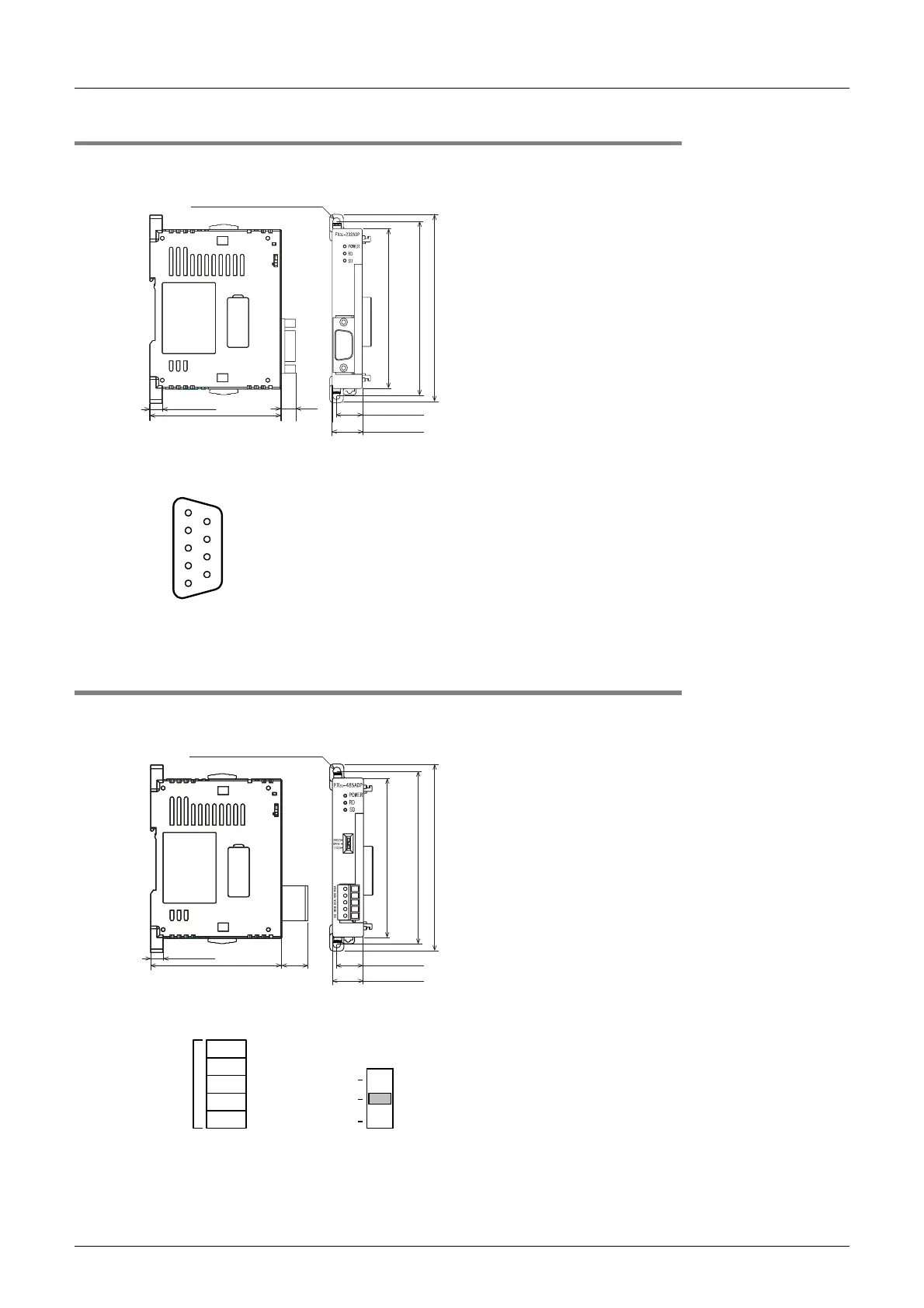

18 Other Extension Devices and Optional Units (External Dimensions and Terminal Arrangement)
18.3 Special Adapters
18.3.5 FX3U-232ADP
External Dimensions
•MASS(Weight): 80g (0.18lbs)
•Installation: DIN rail of 35 mm (1.38") in
width or screws
•Accessories:
Manual supplied with product
•Connector: RS-232C
(D-SUB 9-pin, male)
Terminal Layout
18.3.6 FX3U-485ADP
External Dimensions
•MASS(Weight): 80g (0.18lbs)
•Installation: DIN rail of 35 mm (1.38") in
width or screws
•Accessories: Label for indication of link
station number,
Manual supplied with product
•Terminal block: European type
•Terminal resistance: 330Ω/110Ω, built-in
Terminal Layout
7(0.28")
15.1(0.6")
17.6(0.7")
98(3.86")
(mounting hole pitch)
90(3.55")
106(4.18")
Unit:mm (inches)
74
(2.92")
7.5
(0.3")
2-φ4.5 mounting holes
9
8
7
6
5
4
3
2
1
1 CD(DCD)
2 RD(RXD)
3 SD(TXD)
4 ER(DTR)
5 SG(GND)
6 DR(DSR)
7 Not used
8
9
Not used
Not used
7(0.28")
15.1(0.6")
17.6(0.7")
98(3.86")
(mounting hole pitch)
90(3.55")
106(4.18")
Unit:mm (inches)
74
(2.92")
15.5
(0.62")
2-φ4.5 mounting holes
RDA
RDB
SDA
SDB
SG
5 poles
110
Ω
Terminal resistance
setting switch
330
Ω
OPEN
