14.4 Maintenance and Periodic Inspection
This PLC does not incorporate consumable parts that are factors in the reduction of service life.
However, the batteries and output relays (points of contact) have a limited life expectancy.
14.4.1 Procedures for checking model name

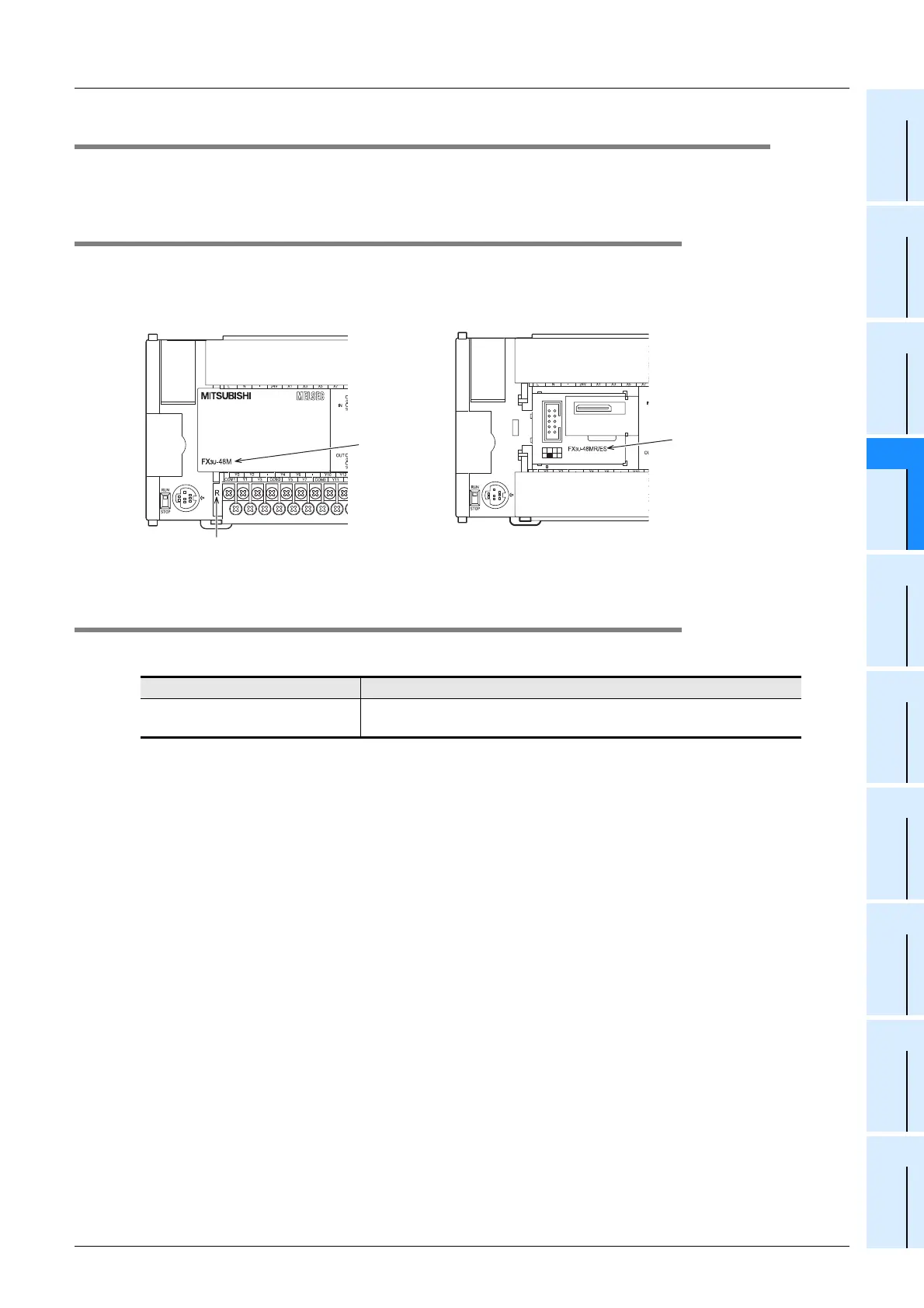

The model name of the main unit can be checked on the nameplate on the right side. After extension devices
are connected, the nameplate cannot be seen. Check the model name in the following places.
14.4.2 Periodic inspection - battery life, etc.
1. Battery
Standard life of FX3U-32BL: 5 years (at ambient temperature of 25°C (77°F))
[Free guarantee period: 1 year after delivery or up to 18 months after manufacture]
→ For frequency of replacement, refer to Subsection 22.3.1.
2. Other devices
When inspecting the battery, check the following points.
• Check that the temperature in the panel is not abnormally increased by other heat generating bodies or
direct sunlight.
• Check that dust or conductive dust has not entered the panel.
• Check for loosening of wiring and other abnormalities.
Part Life
Model FX
3U-32BL battery
Standard life: 5 years (at ambient temperature of 25°C (77°F))
[Guarantee for 1 year]
When the terminal block cover (output side)
is opened
When the top cover is removed
Model name
(abbreviation)
Model name
Output form R: Relay output
T: Transistor output
