FX3U Series Programmable Controllers
User’s Manual - Hardware Edition
293
16 FX2N-8/16E*-*(Input/Output Extension Blocks)
16.3 FX2N-8ER (24V DC Sink Input, Relay Output)
11
High-Speed
Counters
12
Output Wiring
13
Wiring for
Various Uses
14
Test Run,
Maintenance,
Troubleshooting
15
IInput/Output
Powered
Extension Units
16
Input/Output
Extension
Blocks
17
Extension
Power Supply
Unit
18
Other Extension
Units and
Options
19
Display Module
20
Terminal Block

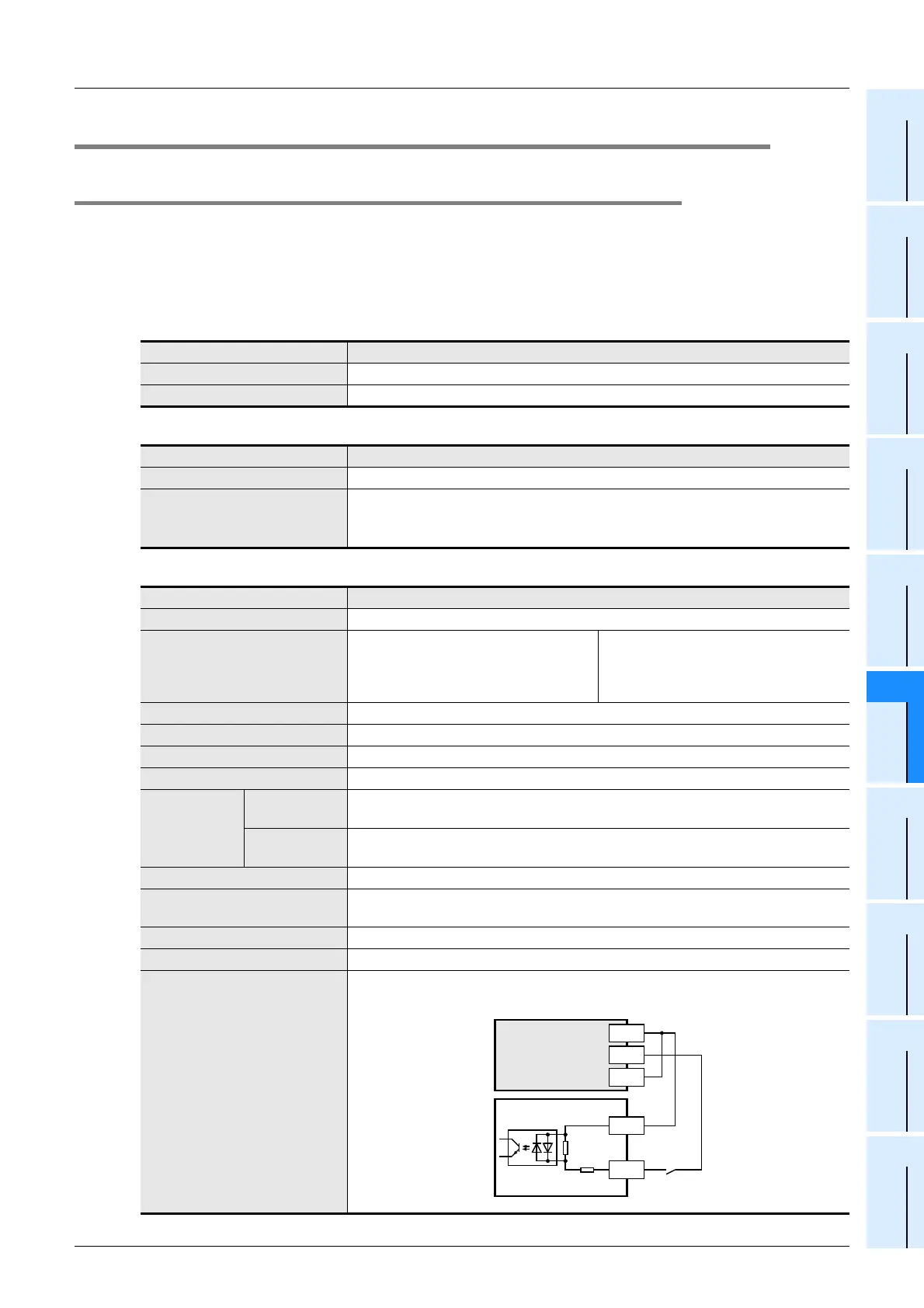

16.3 FX2N-8ER (24V DC Sink Input, Relay Output)
16.3.1 Product specifications
The generic specifications are identical to the main unit specifications.
→ Refer to Section 4.1 for generic specifications.
For external wiring, refer to the following chapters.
→ Refer to Chapter 10 for input wiring.
→ Refer to Chapter 12 for output wiring.
1. Power supply specifications
2. Weight and Other specifications
3. Input specifications
Item FX2N-8ER
Product type FX2N extension block
Rated voltage 24V DC (supplied from main unit and input/output powered extension unit)
Item FX2N-8ER
MASS (Weight) 0.2 kg (0.44lbs)
Other
• The extension cable is already connected to the extension block.
• Accessories: Label for indication of input/output number
• The DIN46277 rail (width: 35 mm (1.38")) or direct installation.
Item FX2N-8ER
Input points 4 points
Connection unit
Vertical terminal block (M3 screws) /
For a detailed description of wiring, refer
to the input line connection diagram of
the main unit.
Connector terminal block
Input type Sink
Input signal voltage 24V DC ± 10%
Input signal current 5 mA/24V DC
Input impedance 4.3kΩ
Input sensitivity
current
Input-ON
current
3.5 mA or more at 24V DC
Input-OFF
current
1.5 mA or less
Input response time Approx. 10 ms
Input signal type
No-voltage contact input
NPN open collector transistor
Input circuit insulation Photo-coupler insulation
Indication of input operation LED on panel lights when input.
Input circuit diagram
X
24+
4.3k
Ω
Sink input line
connection
Main unit
24V
S/S
0V
To Next Page
