18 Other Extension Devices and Optional Units (External Dimensions and Terminal Arrangement)
18.1 Special Function Units/Blocks

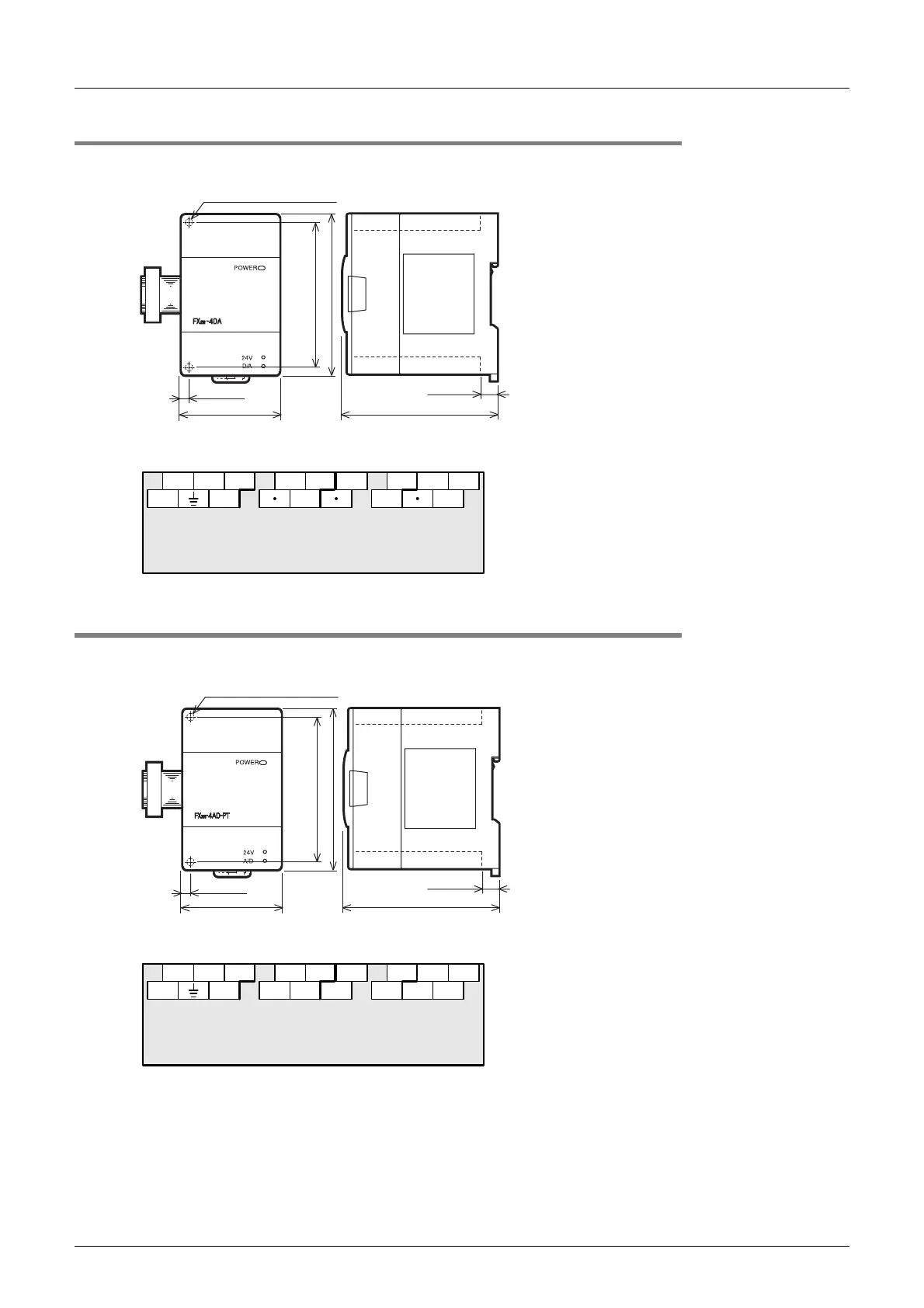

18.1.7 FX2N-4DA
External Dimensions
•MASS(Weight): 0.3kg (0.66lbs)
•Installation: DIN rail of 35 mm (1.38") in
width or screws
•Accessories: Label for indication of special
unit/block number,
Manual supplied with product
•Terminal block: M3 screws
•The extension cable is already connected to
the extension block
Terminal Layout
18.1.8 FX2N-4AD-PT
External Dimensions
•MASS(Weight): 0.3kg (0.66lbs)
•Installation: DIN rail of 35 mm (1.38") in
width or screws
•Accessories: Label for indication of special
unit/block number,
Manual supplied with product
•Terminal block: M3 screws
•The extension cable is already connected to
the extension block
Terminal Layout
87(3.43")
80(3.15")
(mounting hole pitch)
90(3.55")
Unit:mm (inches)
4(0.16")
9(0.36")
55(2.17")
2-φ4.5 mounting holes
24+
24- V+ I+
VI-
V+ I+ V+
VI- VI-
I+ V+ I+
VI-
CH1 CH2 CH3 CH4
87(3.43")
80(3.15")
(mounting hole pitch)
90(3.55")
Unit:mm (inches)
4(0.16")
9(0.36")
55(2.17")
2-φ4.5 mounting holes
24+
24- I- L-
L+
I- L- I-
L+ L+
L- I- L-
L+
CH1 CH2 CH3 CH4
FG FG FG
