Mitsubishi FX3U Series User Manual

FX3U Series Programmable Controllers
User’s Manual - Hardware Edition
371
19 FX3U-7DM (Display Module)
19.12 Clock Menu (Current Time Setting)
11
High-Speed Counters
12
Output Wiring
13
Wiring for Various Uses
14
Test Run, Maintenance, Troubleshooting
15
IInput/Output Powered Extension Units
16
Input/Output Extension Blocks
17
Extension Power Supply Unit
18
Other Extension Units and Options
19
Display Module
20
Terminal Block

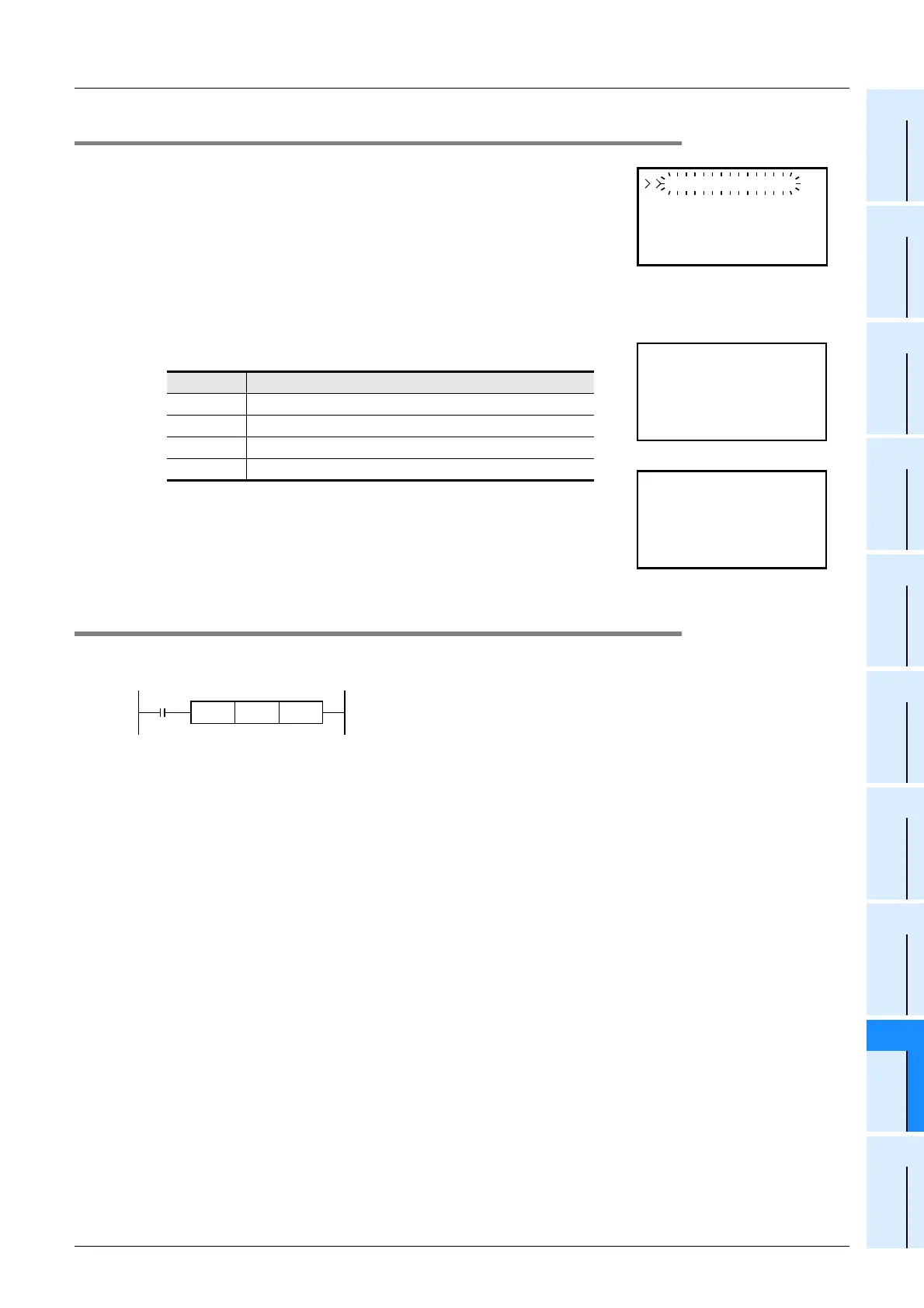

19.12.2 Displaying the current time
1) At the menu screen, use the [+] / [-] buttons to move the cursor to
the "ClockMenu" item, then press [OK] to display the selection
screen shown to the right.
To cancel the operation and return to the "top screen (time
display)", press [ESC].
2) Use the [+] / [-] buttons to move the cursor to the "Current time"
item. To cancel the operation and return to the "menu screen",
press [ESC].
3) Press the [OK] button to display the current time.
To cancel the operation and return to the "selection screen", press
[ESC].
4) Press [OK] or [ESC] to return to the "selection screen".
5) Press [ESC] to return to the "menu screen".
19.12.3 Changing the current time’s "Year" from 2-digit format to 4-digit format
The "Year" data displays as 2-digit value with a default. This can be changed to a 4-digit display by the
following programming.
It is also possible to set the current time with a sequence program.
→ Refer to the "time setting" (special devices D8013 to D8019) section of the Programming Manual.
Button Operation Description
ESC Returns to the "selection screen".
- Disabled
+ Disabled
OK Returns to the "selection screen".
Crruenttemi
tCcolkset gni
2-digit display
31. 1 . 04
23: 59: 59 [ t ]Sa
4-digit display
31. 1 . 20
23: 59: 59[ t ]Sa
04
M8002
MOV K2000 D8018
