18.1.20 FX2N-232IF

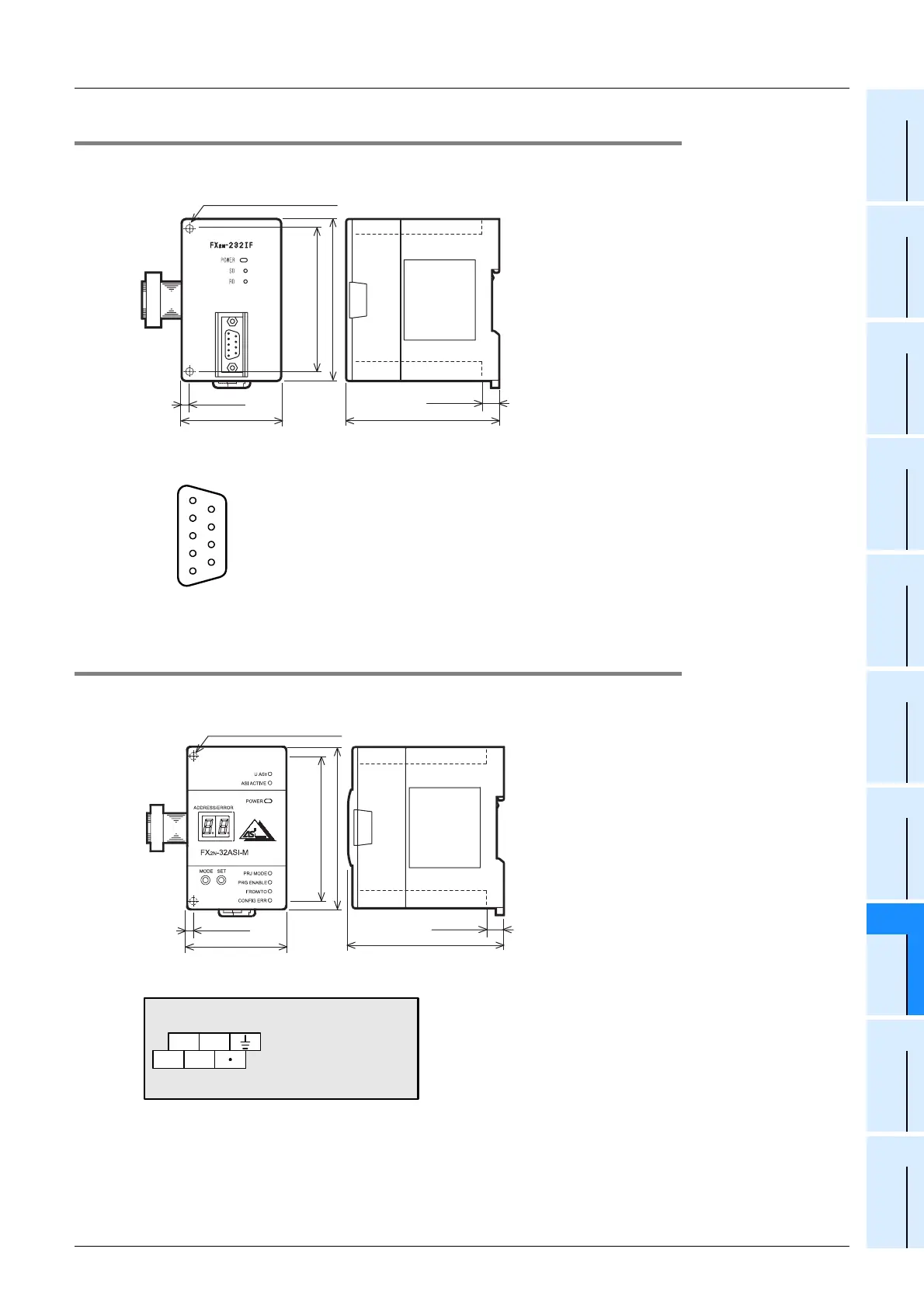

External Dimensions
•MASS(Weight): 0.3kg (0.66lbs)
•Installation: DIN rail of 35 mm (1.38") in
width or screws
•Accessories: Label for indication of special
unit/block number,
Manual supplied with product
•Connector: RS-232C
(D-SUB 9-pin, male)
•The extension cable is already connected to
the extension block
Terminal Layout
18.1.21 FX2N-32ASI-M
External Dimensions
•MASS(Weight): 0.2kg (0.44lbs)
•installation: DIN rail of 35 mm (1.38") in
width or screws
•Accessories: Label for indication of special
unit/block number,
Manual supplied with product
•Terminal block: M3 screws
•The extension cable is already connected to
the extension block
Terminal Layout
85(3.35")
80(3.15")
(mounting hole pitch)
90(3.55")
Unit:mm (inches)
4(0.16")
9(0.36")
55(2.17")
2-φ4.5 mounting holes
9
8
7
6
5
4
3
2
1
1 CD(DCD)
2 RD(RXD)
3 SD(TXD)
4 ER(DTR)
5SG
6 DR(DSR)
7 RS(RTS)
8 CS(CTS)
9CI(RI)
87(3.43")
80(3.15")
(mounting hole pitch)
90(3.55")
Unit:mm (inches)
4(0.16")
9(0.36")
55(2.17")
2-φ4.5 mounting holes
ASI+
ASI+ ASI-
ASI-
