Mitsubishi FX3U Series User Manual

214
FX3U Series Programmable Controllers
User’s Manual - Hardware Edition
12 Output Wiring Procedures
12.3 External Wiring of Transistor Output (Sink/Source) Type
12.3.3 Handling of transistor output

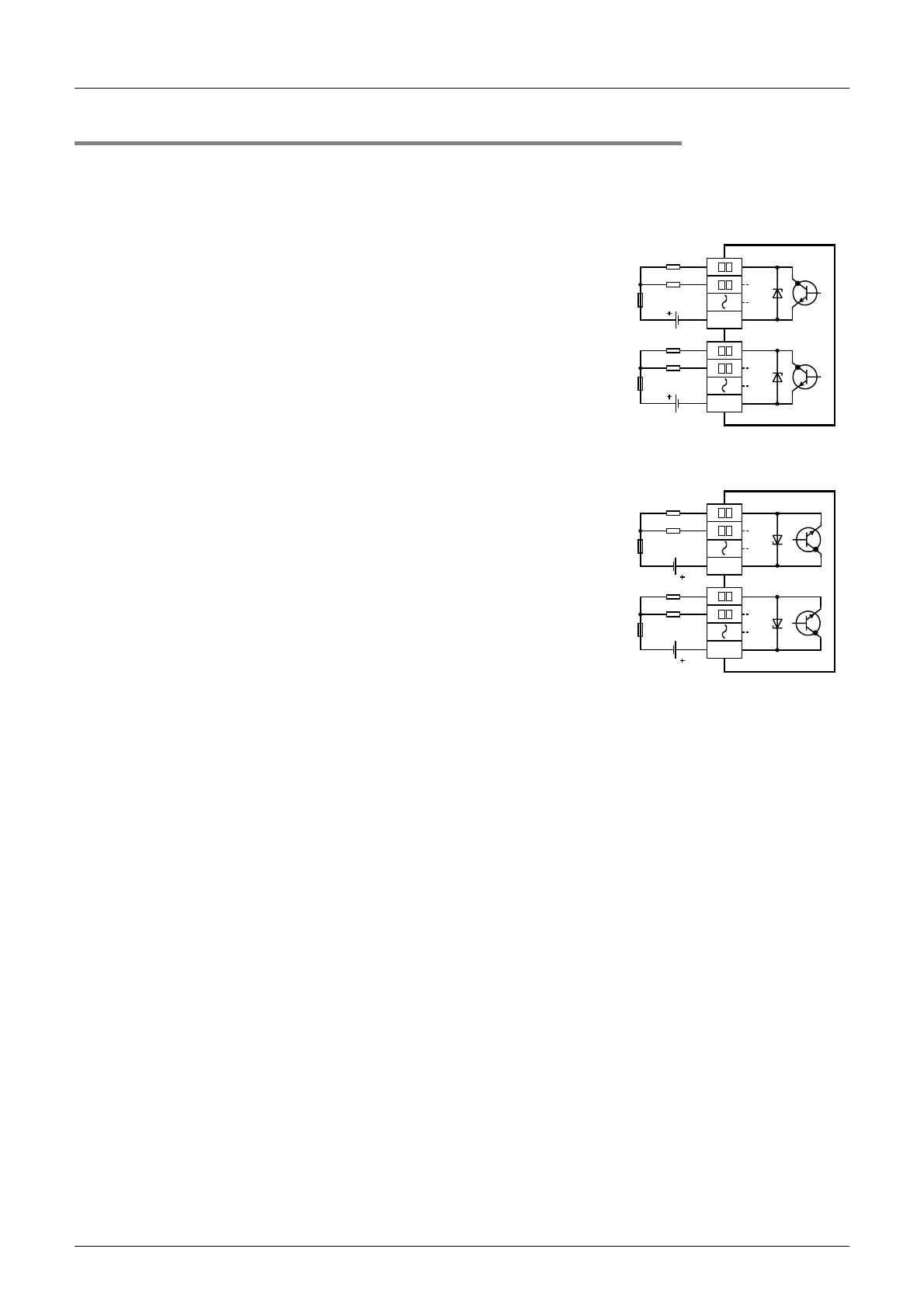

1. Output terminals
One, 4 or 8 transistor output points are covered by one common terminal.
Sink output
Load current flows into the output (Y) terminals.
Connect each COM (number) terminal to the minus side of
the load power supply.
The COM terminals are not connected internally.
Source output
Load current flows out of the output (Y) terminals.
Connect each +V (number) terminal to the plus side of the
load power supply.
The +V terminals are not connected internally.
2. External power supply
For driving the load, use a smoothing power supply of 5 to 30V DC that can output current two or more times
the rated current of the fuse connected to the load circuit.
3. Insulation of circuit
The internal circuit of the PLC and the output transistor are insulated with a photocoupler.
The common blocks are separated from one another.
4. Display of operation
When any photocoupler operates, the corresponding LED lights and corresponding output transistor turns
ON.
PLC
Load
DC power
supply
Fuse
Y 0
COM1
Load
Fuse
COM2
Sink output type
DC power
supply
Y 1
Y 5
Y 4
PLC
Load
DC power
supply
Fuse
+V0
Load
DC power
supply
Fuse
+V1
Source output type
Y 0
Y 1
Y 5
Y 4
