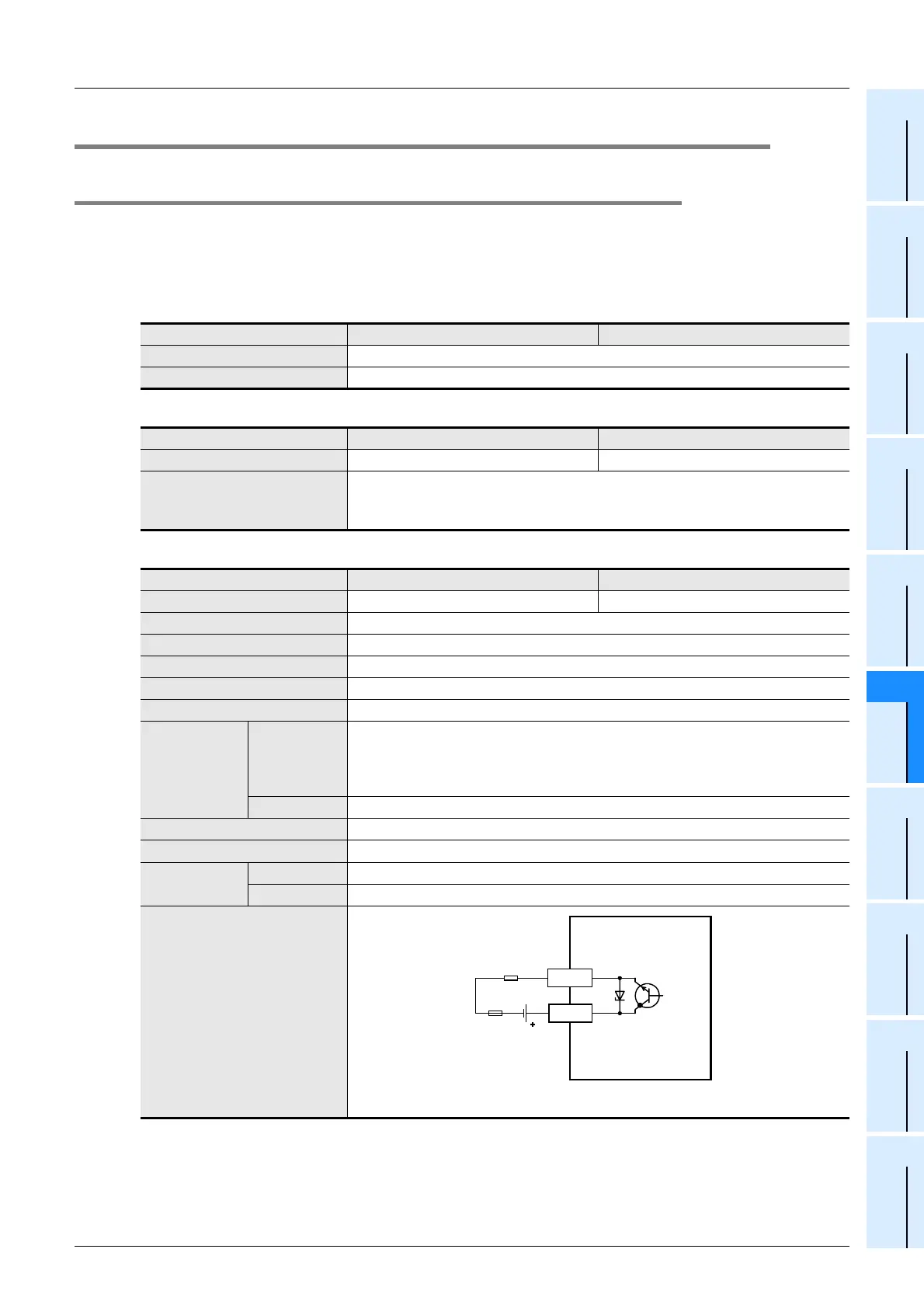

16.9 FX2N-8EYT-ESS/UL, FX2N-16EYT-ESS/UL (Transistor Output)
16.9.1 Product specifications
The generic specifications are identical to the main unit specifications.
→ Refer to Section 4.1 for generic specifications.
For external wiring, refer to the following chapter.
→ Refer to Chapter 12 for output wiring.
1. Power supply specifications
2. Weight and Other specifications
3. Output specifications (Transistor output type)
Item FX2N-8EYT-ESS/UL FX2N-16EYT-ESS/UL
Product type FX2N extension block
Rated voltage 24V DC (supplied from main unit and input/output powered extension unit)
Item FX2N-8EYT-ESS/UL FX2N-16EYT-ESS/UL
MASS (Weight) 0.2 kg (0.44lbs) 0.3 kg (0.66lbs)
Other
• The extension cable is already connected to the extension block.
• Accessories: Label for indication of input/output number
• The DIN46277 rail (width: 35 mm (1.38")) or direct installation.
Item FX2N-8EYT-ESS/UL FX2N-16EYT-ESS/UL
Output points 8 points 16 points
Connection unit Vertical terminal block (M3 screws)
Output unit/type Transistor/source output
External power supply 5 to 30V DC
Output circuit insulation method Photo-coupler insulation
Indication of output operation Activation of the photo-coupler will light the LED indicator lamp on panel.
Maximum load
Resistance
load
0.5 A/point
The total load current per common should be as follows:
• 4 output points/common: 0.8A or less
• 8 output points/common: 1.6A or less
Inductive load 12 W/24V DC
Open circuit leakage current 0.1 mA/30 A DC
Minimum load −
Response time
OFF→ON 0.2 ms or less for 200 mA (at 24V DC)
ON→OFF 0.2 ms or less for 200 mA (at 24V DC)
Output circuit diagram
A common number applies to the  of [+V  ].
Load
DC power
supply
Fuse
Y
+V 
