SCANNER UNIT 20 June 2005
3-12

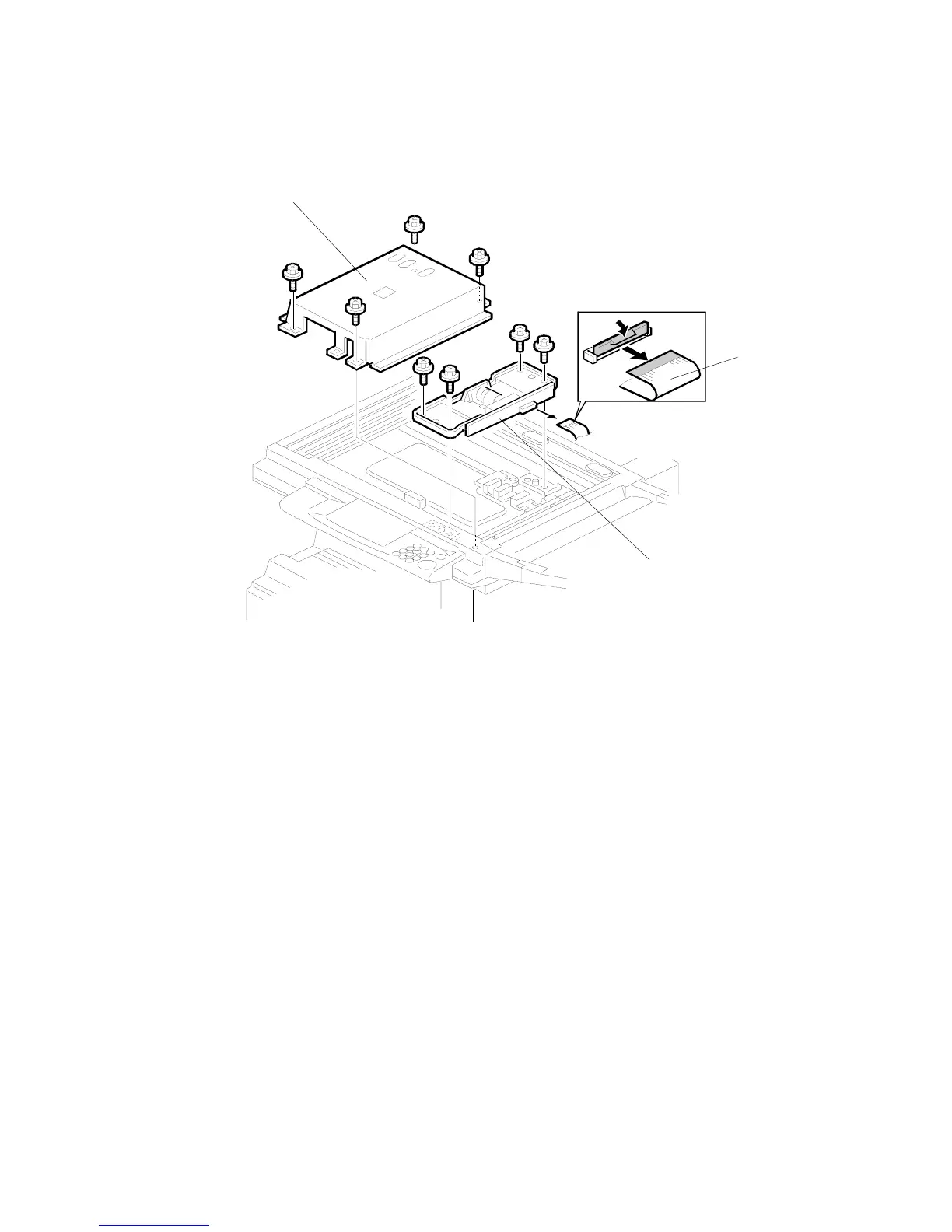

3.9.4 LENS BLOCK, SBU ASSEMBLY
1. ARDF ( 3.9.1)
2. Exposure glass and DF exposure glass (3.9.2)
3. Lens cover [A] ( x4)
4. Flexible cable [B] ( x1)
5. Lens block assembly [C] ( x4)
NOTE: The elements of the lens block assembly have been factory adjusted
and paint locked at 8 points. Do not attempt to replace these items.
Replace the unit.
6. Perform scanner and printer copy adjustments ( 3.21)
B195R910.WMF
[A]
[B]
[C]
