20 June 2005 PRINTED CIRCUIT BOARDS
3-89
Replacement
Adjustment

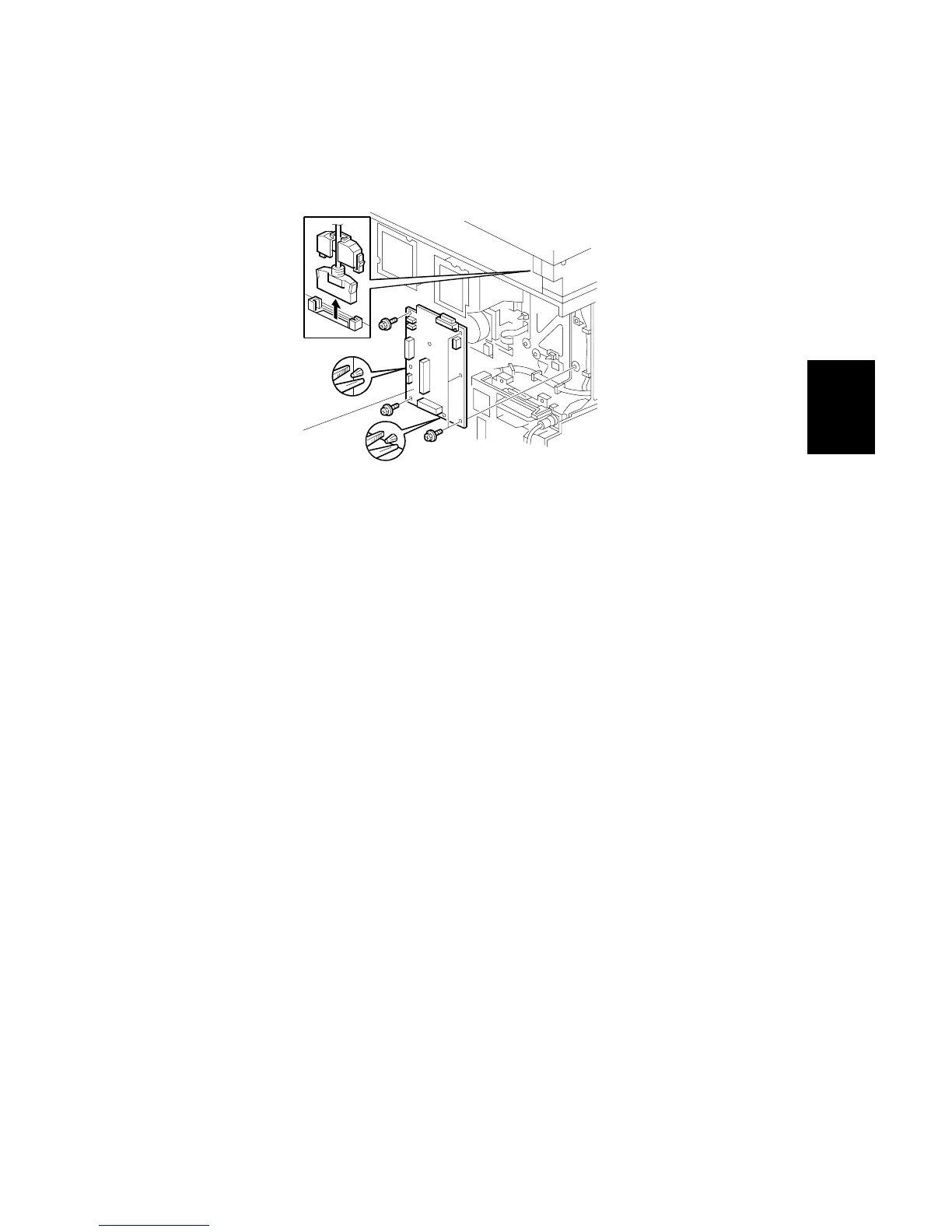

3.19.4 BICU BOARD
1. IOB (3.19.3)
2. BICU board [A] ( x5, x all)
B195R823.WMF
[A]
