Ricoh A-C4 User Manual

20 June 2005 BY-PASS TRAY
3-75
Replacement
Adjustment

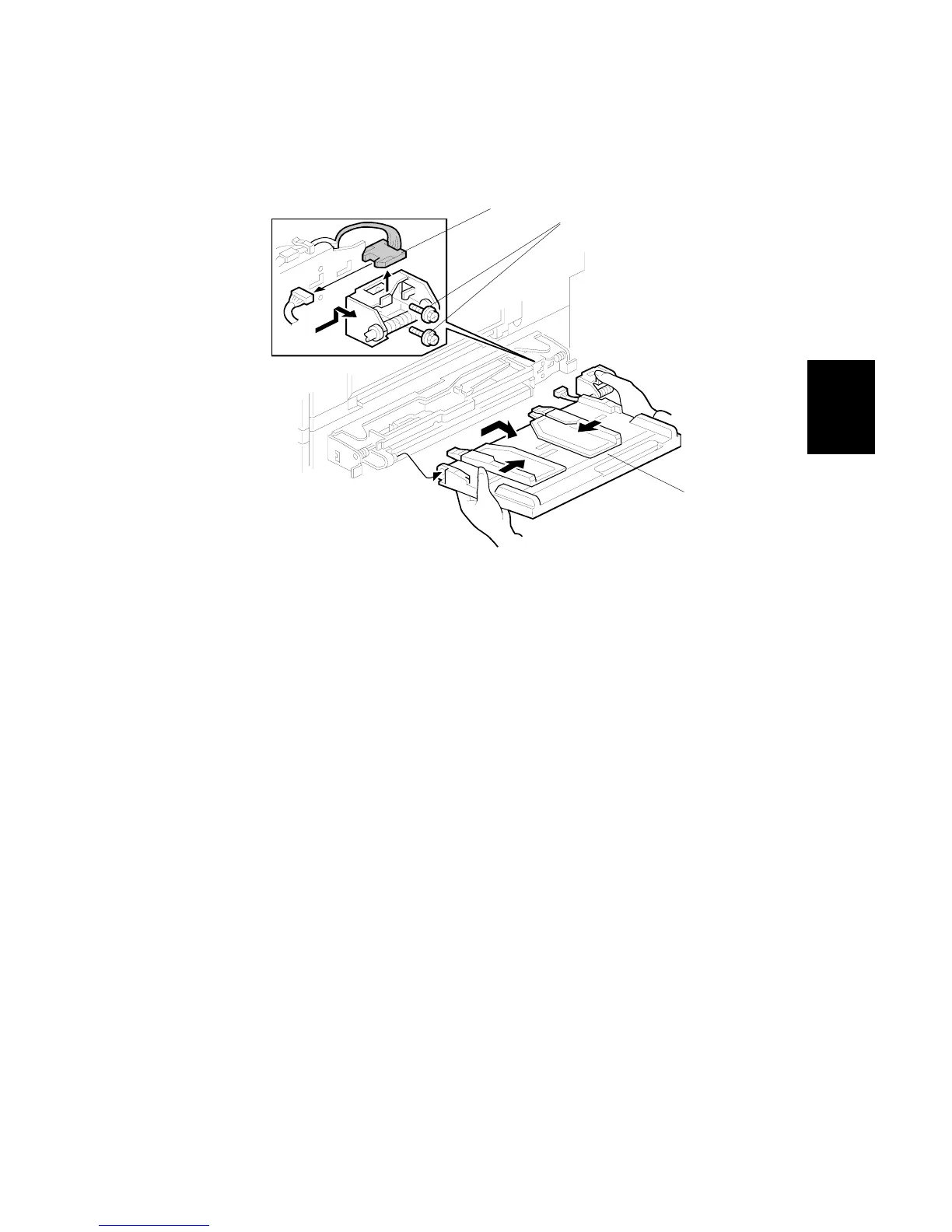

3.16.6 BY-PASS TABLE REMOVAL
Note: The entire by-pass tray unit can be removed, not just the table. (3.6)
1. Hinge cover ( 3.16.1)
2. Harness [A] ( x1).
3. Screws [B] ( x2)
4. By-pass table [C].
CAUTION: To relieve pressure on the spring during removal, depress it as
shown in the illustration.
B195R801.WMF
[A]
[C]
[B]
