20 June 2005 HDD, CONTROLLER BOARD
3-91
Replacement
Adjustment
3.20 HDD, CONTROLLER BOARD
Important!
The controller boards are machine specific and are not interchangeable:
• The controller board for the B195/B264 (35 cpm) must be installed in a
B195/B264 copier.
• The controller board for the B198/B265 (45 cpm) must be installed in a
B198/B265 copier.

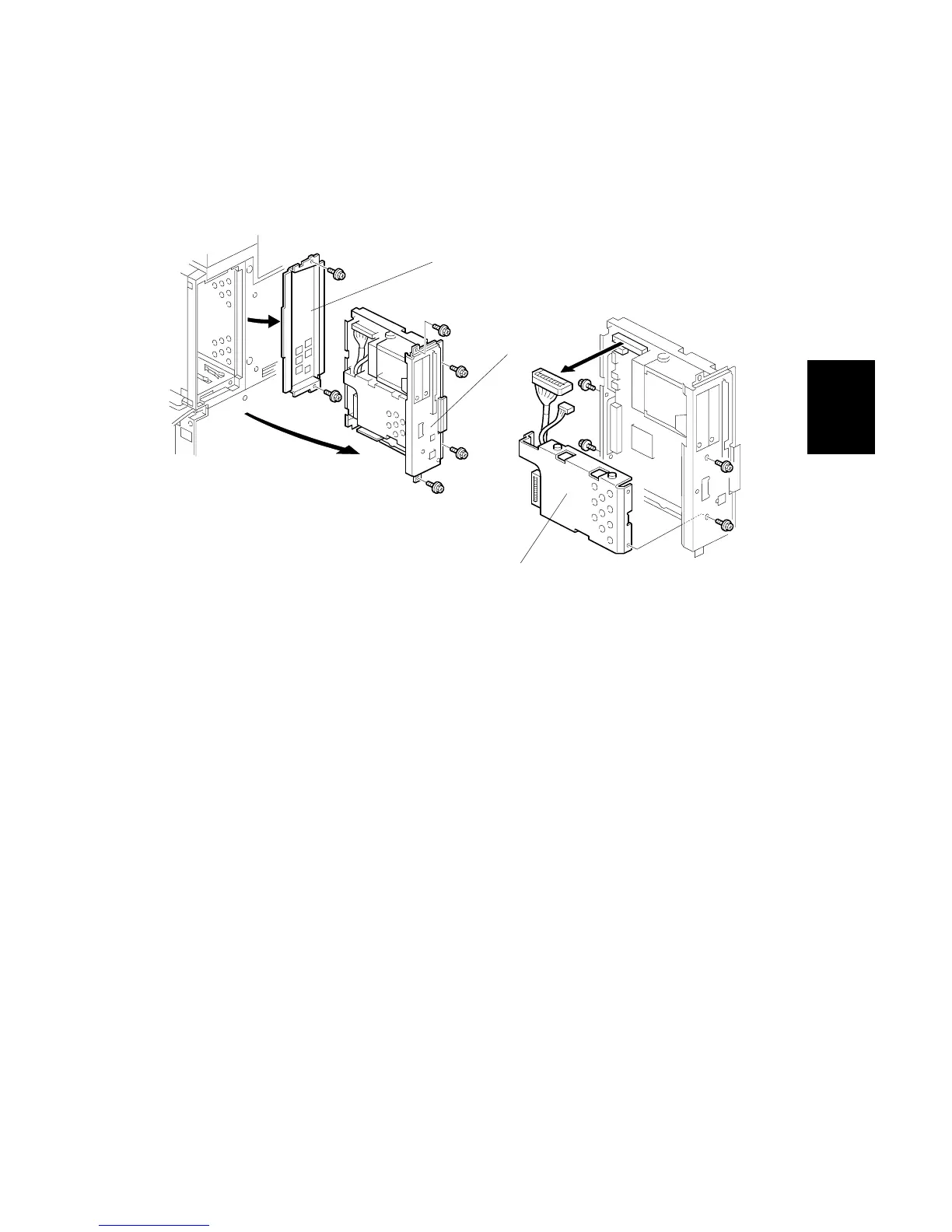

1. Remove the controller cover ( x 2). (3.7.1)
2. Controller board faceplate [A] ( x 2).
3. Controller board [B] ( x 4)
4. HDD unit bracket [C] ( x 3, x 2)
5. After replacing the HDD, execute SP 5853 to copy the stamp data from the
firmware ROM to the new disk. .
B195R825.WMF
B195R826.WMF
[C]
[A]
[B]
To Next Page
