Ricoh A-C4 User Manual

FUSING UNIT 20 June 2005
3-62

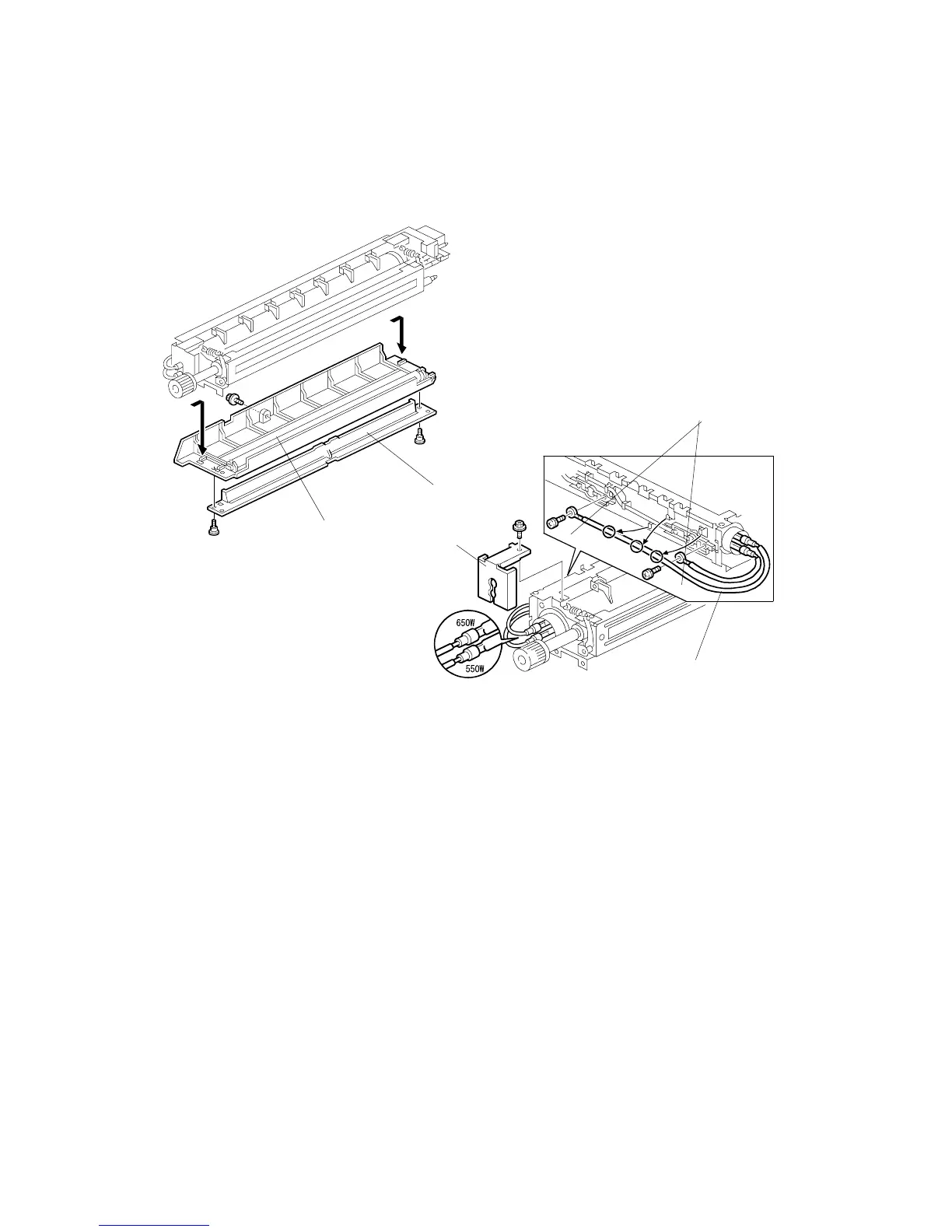

3.15.4 FUSING LAMPS
1. Fusing unit ( 3.15)
2. Fusing unit cover ( 3.15.3)
3. Fusing entrance guide [A] ( x2)
4. Lower cover [B] ( x1)
Left side
5. Two terminals [C] ( x2)
6. Center fusing lamp lead [D] (Clamps x3)
7. Bracket [E] ( x1)
B195R992.WMF
B195R993.WMF
[A]
[B]
[D]
[E]
[C]
