DEVELOPMENT 20 June 2005
6-64
Toner supply mechanism

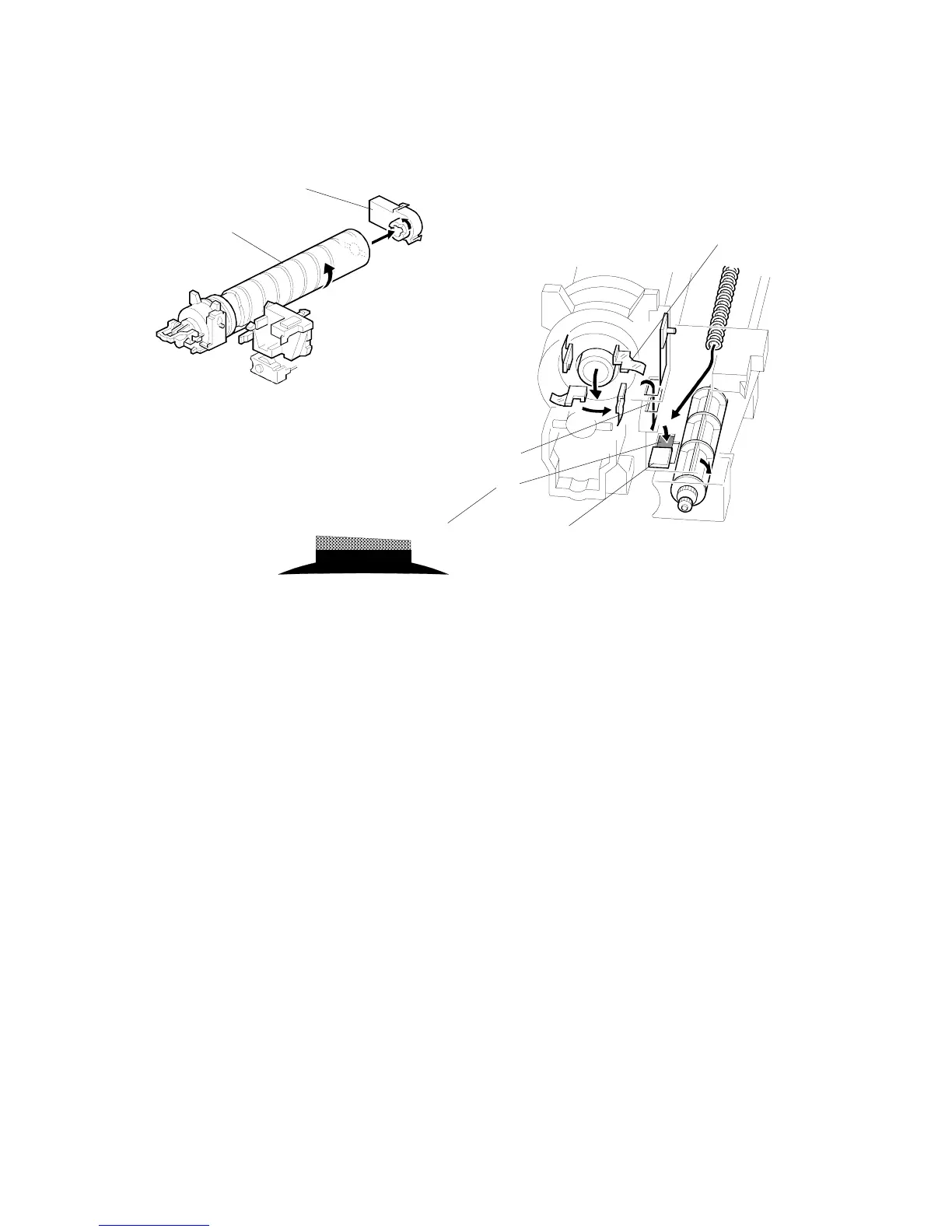

The toner supply motor [A] rotates the toner bottle [B] and the mylar blades [C]
(see below).
Toner falls into the toner bottle holder, and the toner supply mylar blades [C]
transfer the toner to slit [D]. Installing the PCU opens the shutter [E].
The toner falls into the development unit through the port.
The left side of the entrance seal is higher than the right. This improves the
efficiency of seal on the left side, especially when the PCU is removed.
B195D943.WMF
B195D944.WMF
B195D924.WMF
[A]
[B]
[C]
[D]
[E]
[F]
