20 June 2005 BY-PASS TRAY
3-71
Replacement
Adjustment

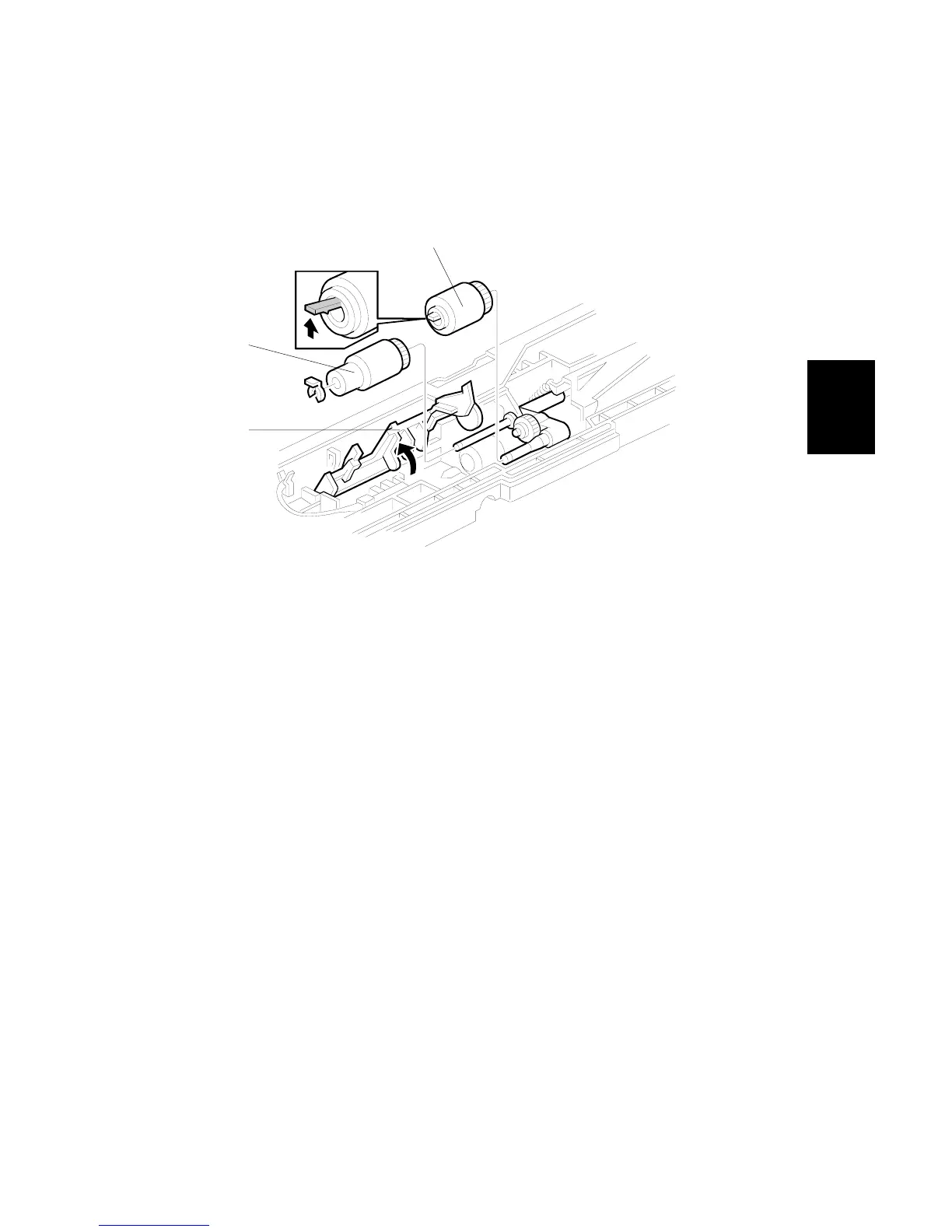

3.16.2 BY-PASS PAPER FEED AND PICK-UP ROLLER
REPLACEMENT
1. Upper cover ( 3.16.1)
2. Lift up paper end feeler [A] to lock feeler in position.
NOTE: Before reinstalling the upper cover, return the paper end feeler to its
original position.
3. Replace the paper feed roller [B] ( x1)
4. Replace the pick-up roller [C].
B195R977.WMF
[C]
[B]
[A]
