SCANNER UNIT 20 June 2005
3-18
3.9.10 SCANNER WIRE
1. ARDF ( 3.9.1)
2. Exposure glass (3.9.2)
3. Scanner exterior panels and operation panel (3.9.3)
Front wire:
4. Left stay [A] ( x5)
5. Right stay [B] ( x5)
6. Front stay [C] ( x6)
7. Front scanner rail [D] ( x2)
8. To replace the scanner wire, see page 3-20.

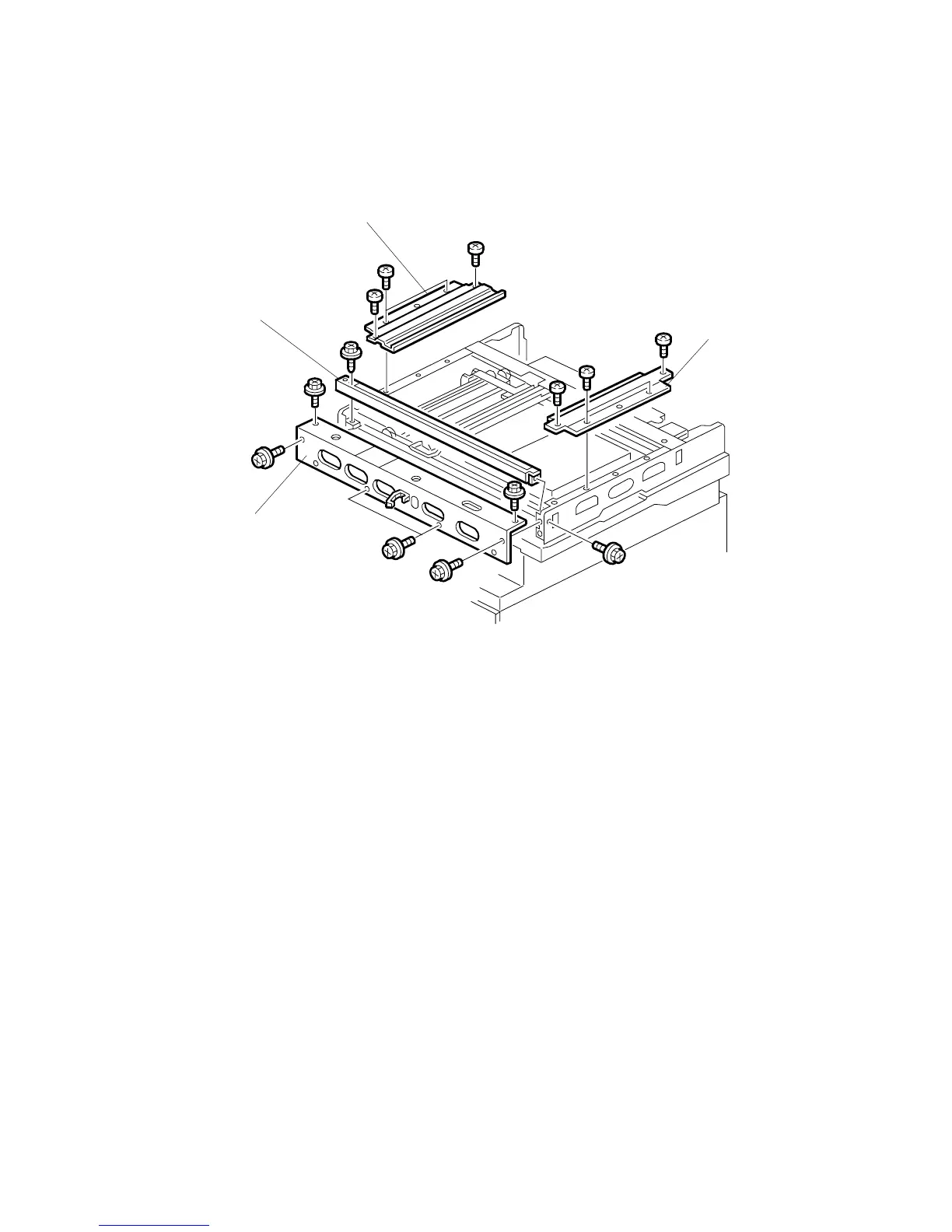

B195R916.WMF
[A]
[B]
[C]
[D]
