20 June 2005 LASER UNIT
3-25
Replacement
Adjustment

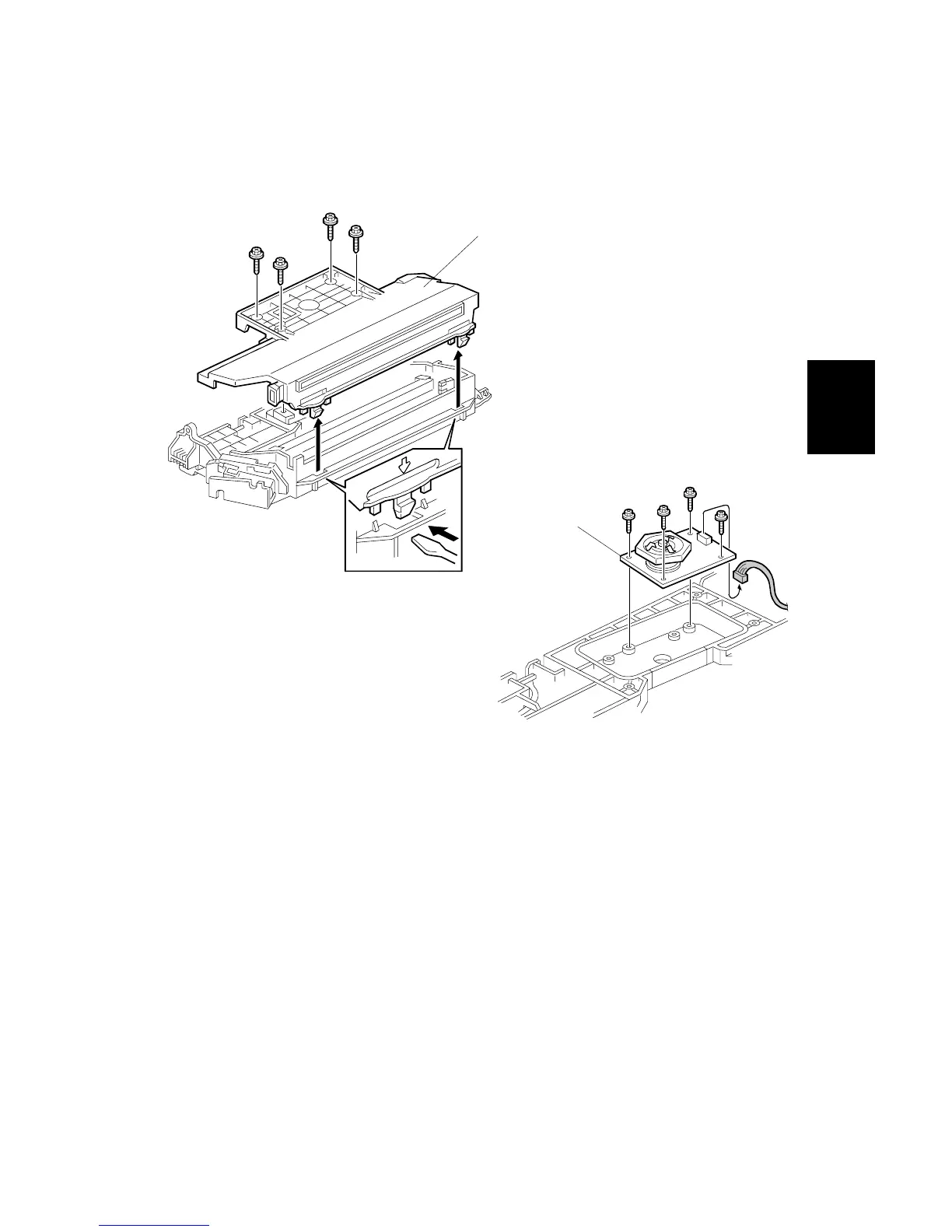

3.10.3 POLYGON MIRROR MOTOR
1. Laser unit (3.10.2)
2. Laser unit cover [A] ( x4, 2 hooks)
3. Polygon mirror motor [B] ( x4, x1)
4. After replacing the motor, do the image adjustment. (3.21)
B195R923.WMF
B195R928.WMF
[B]
[A]
