ARDF INSTALLATION (B714) 20 June 2005
1-48
1.9.3 ARDF SKEW ADJUSTMENT

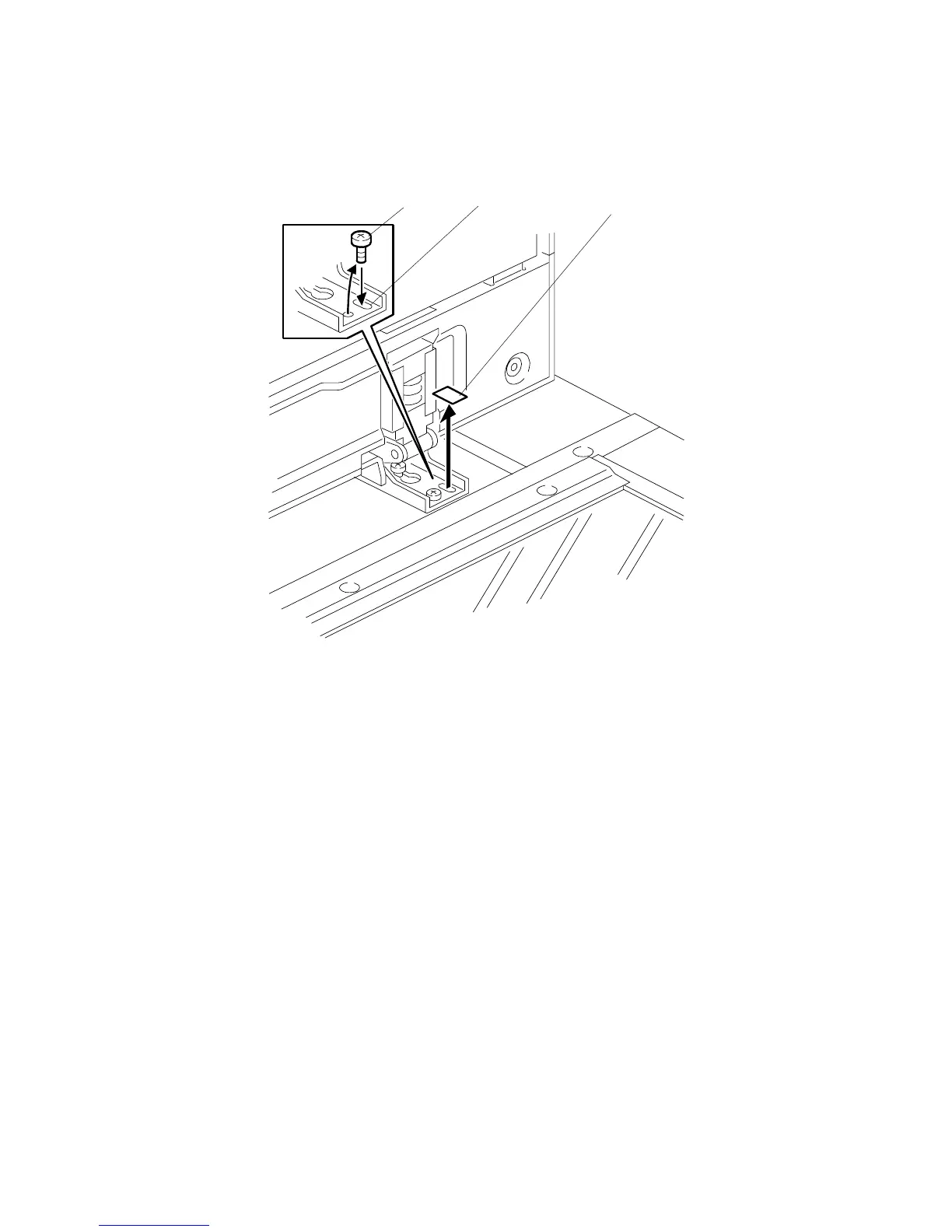

1. Remove the tape [A] covering the elliptical hole.
2. Remove right screw [B] and install it into the elliptical hole [C].
3. Move the right side of the ARDF forward or back to adjust the position then
tighten the screw.
B079I901.WMF
[A]
[B]
[C]
