SCANNER UNIT 20 June 2005
3-16

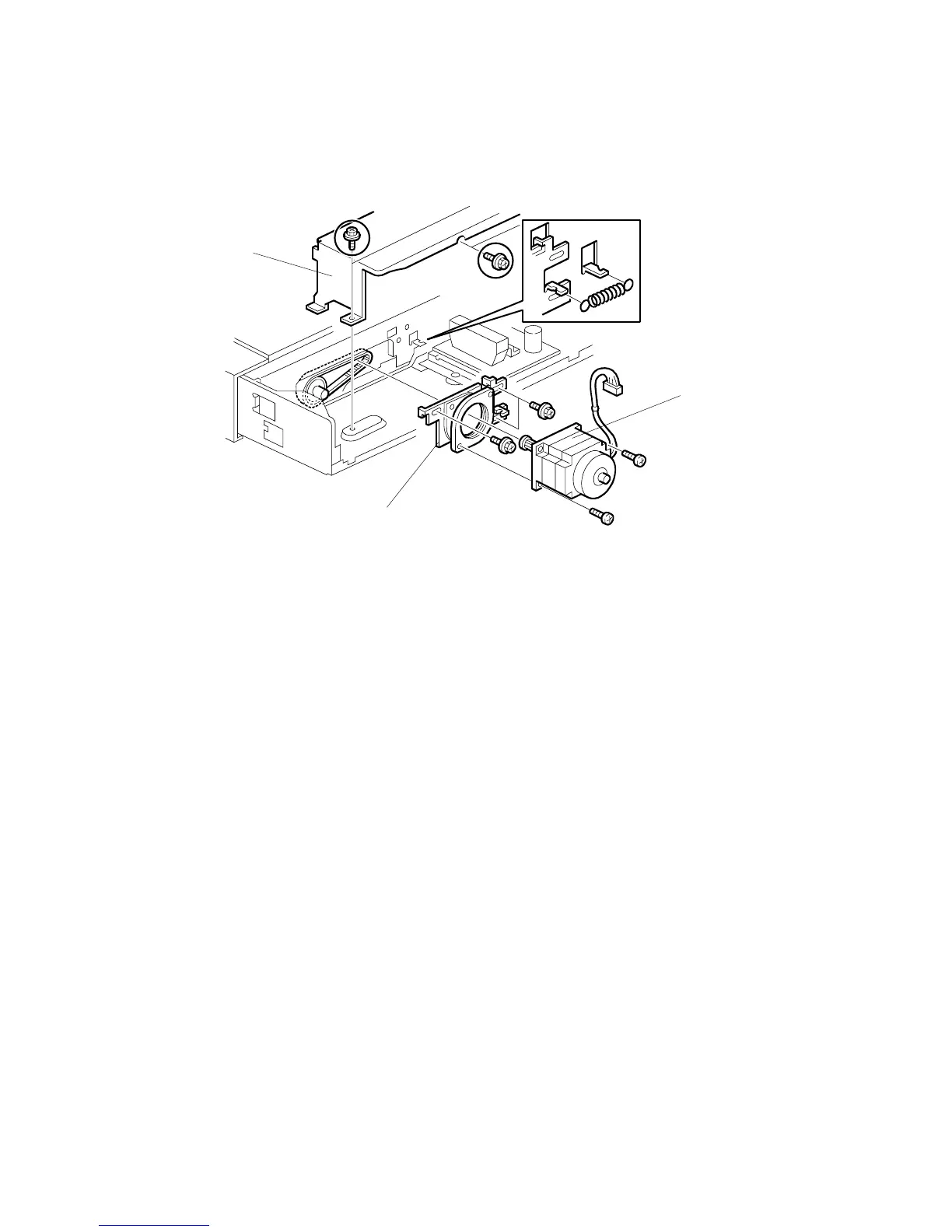

3.9.8 SCANNER MOTOR
1. ARDF ( 3.9.1)
2. Scanner rear cover (3.9.3)
3. Rear bracket [A] ( x5,  x2)
4. Scanner motor bracket [B] ( x3,  x1, spring x1, timing belt x1)
NOTE: Loosen motor bracket [B] ( x3) to release tension on belt (motor
slides side to side).
5. Scanner motor [C] ( x2,  x1)
6. Perform scanner and printer copy adjustments (3.21)
B195R914.WMF
[A]
[B]
[C]
