20 June 2005 PAPER FEED
3-51
Replacement
Adjustment

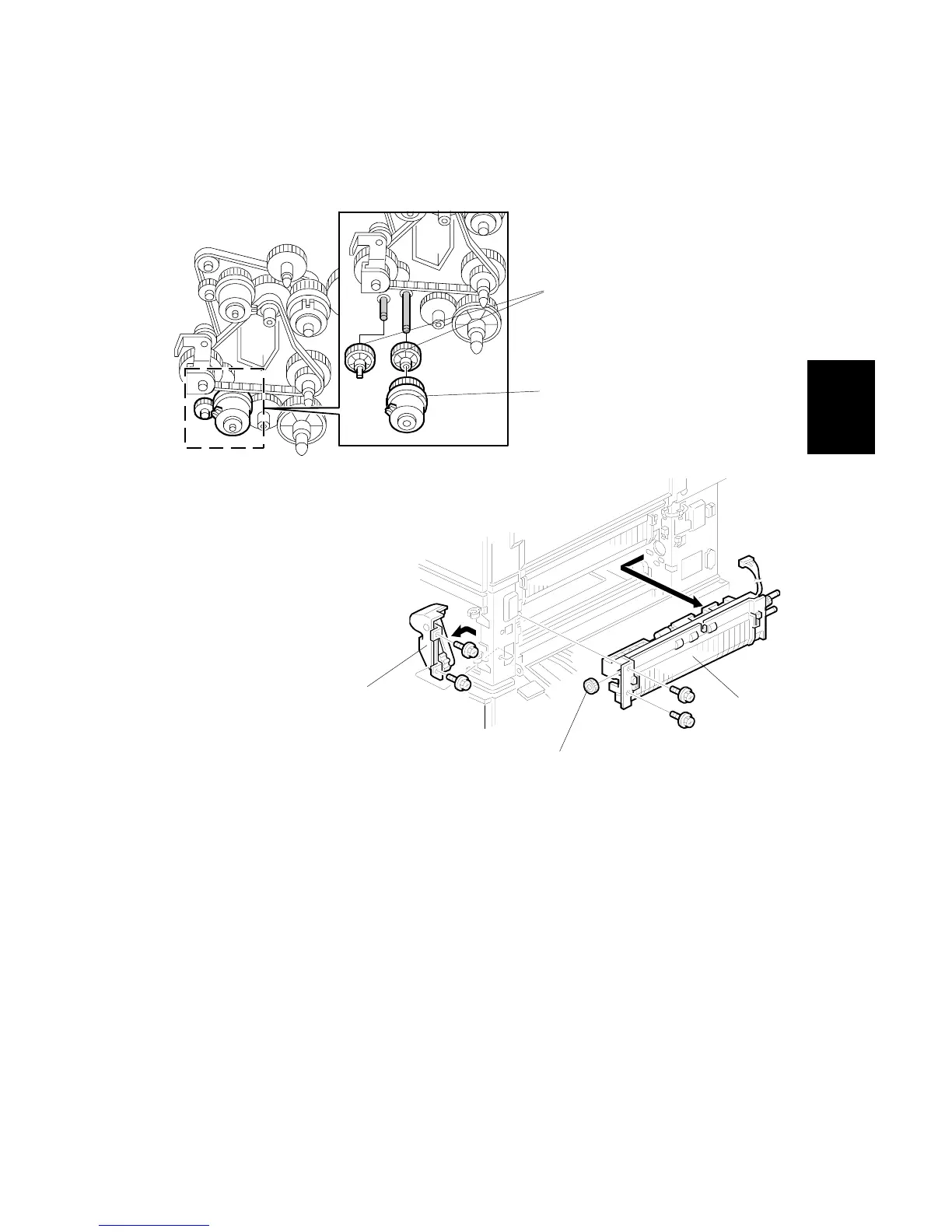

3.14.5 LOWER PAPER FEED UNIT FOR TRAY 2
1. Lower the paper trays
2. Right lower cover (3.14.2)
3. Remove the lower paper feed clutch [A] (3.14.3 )
4. Relay gears [B] (x3)
5. Cover [C] ( x2)
6. Gear [D] (x1)
7. Lower paper feed unit [E] ( x2,  x1)
B195R961.WMF
B195R962.WMF
[A]
[B]
[C]
[D]
[E]
