SERVICE PROGRAM MODE TABLES 20 June 2005
5-124
5.2.6 OUTPUT CHECK
NOTE: Motors keep turning in this mode regardless of upper or lower limit sensor
signals. To prevent mechanical or electrical damage, do not keep an
electrical component on for a long time.
Main Machine Output Check: SP5-804
1. Open SP mode 5-804.
2. Select the SP number that corresponds to the component you wish to check.
(Refer to the table on the next page.)
3. Press On then press Off to test the selected item.
NOTE: You cannot exit and close this display until you press off to switch off
the output check currently executing. Do not keep an electrical
component switched on for a long time.

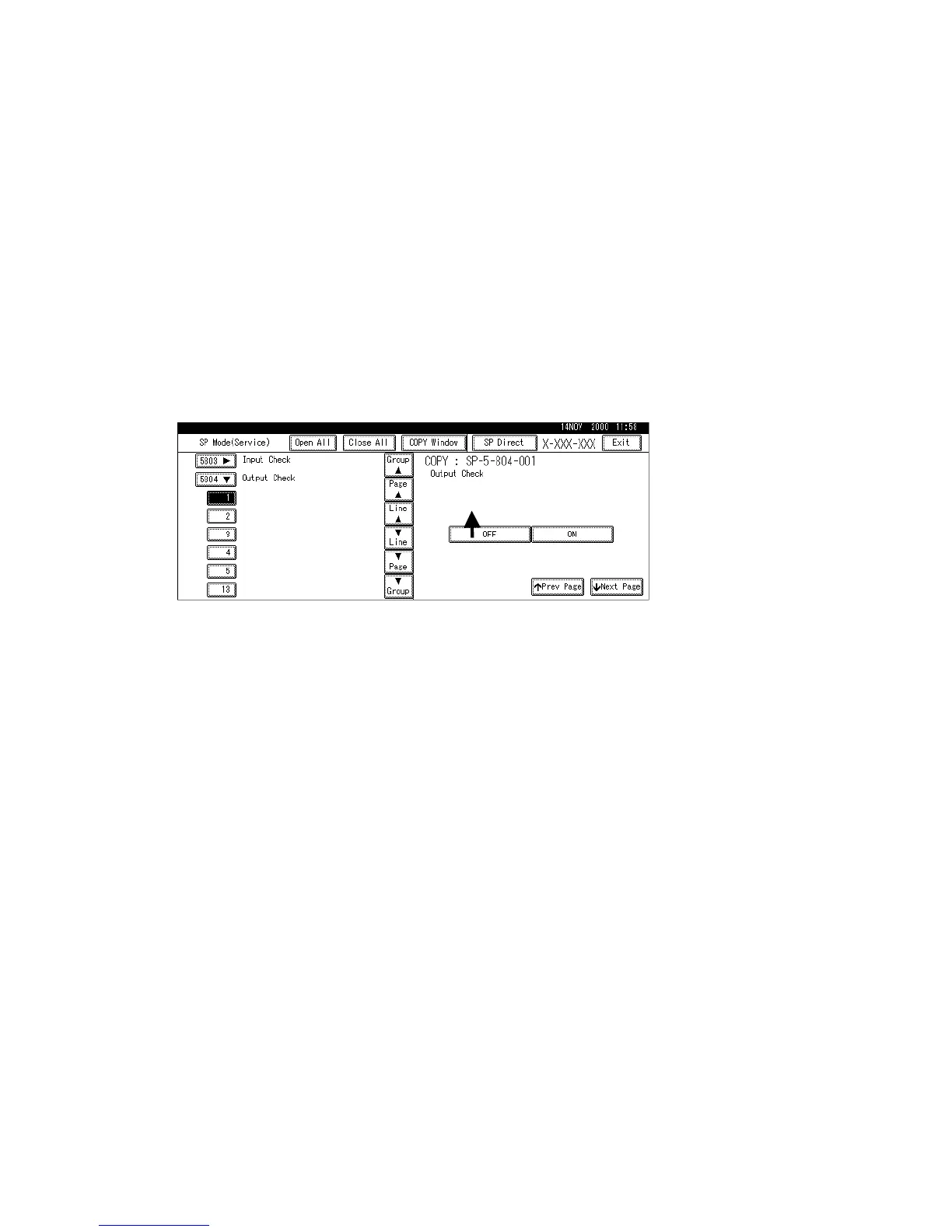

B135S902.WMF
