20 June 2005
SCANNER UNIT
3-15
Replacement
Adjustment
3.9.7

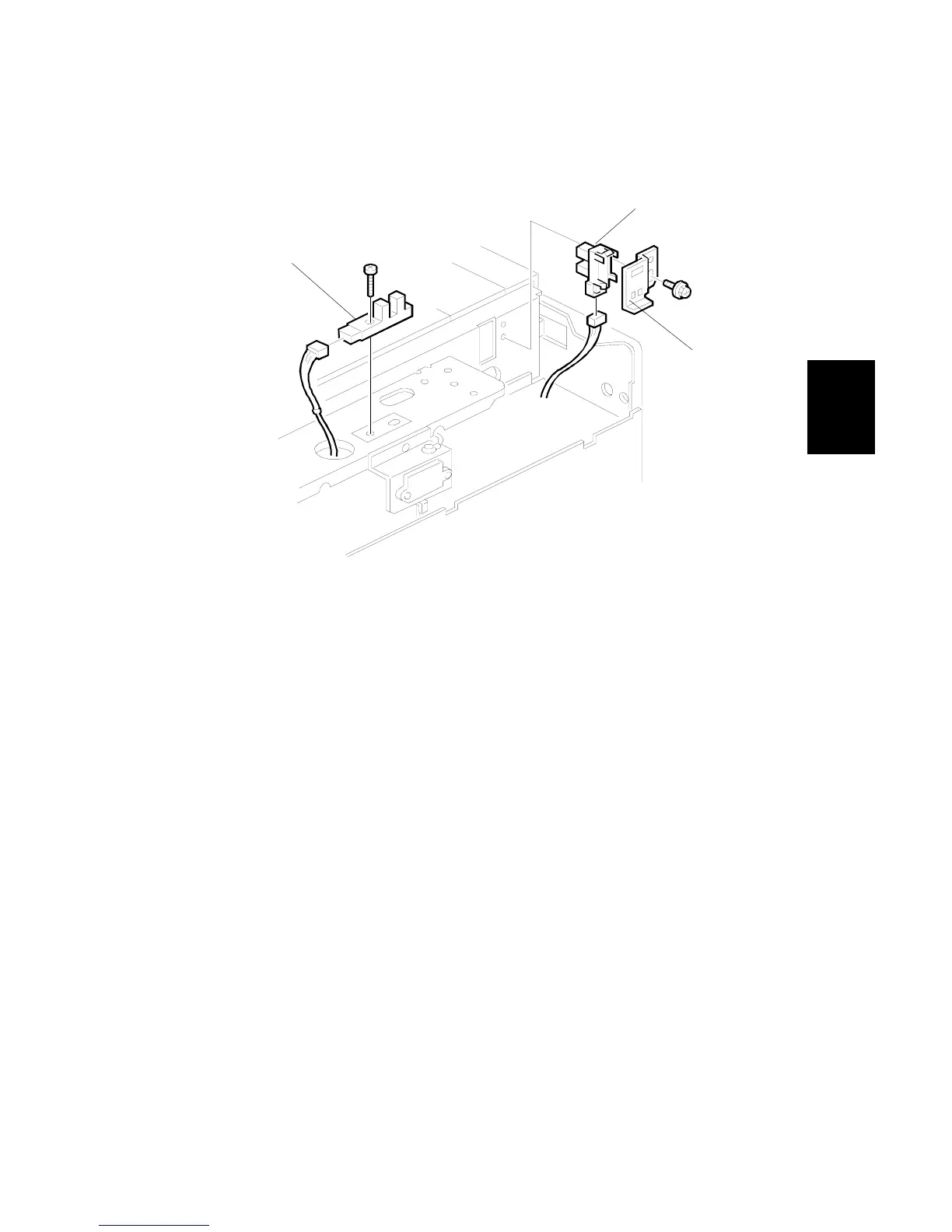

SCANNER HP SENSOR/PLATEN COVER SENSOR
1. ARDF
(
3.9.1)
2.
Scanner rear cover (
3.9.3)
3.
Scanner HP sensor bracket [A] (
x1)
4.
Scanner HP sensor [B] (
x1)
5.
Platen cover sensor [C] (
x1,
x1)
B195R913.WMF
[A]
[B]
[C]
