20 June 2005 PAPER FEED

3-53

Replacement

Adjustment

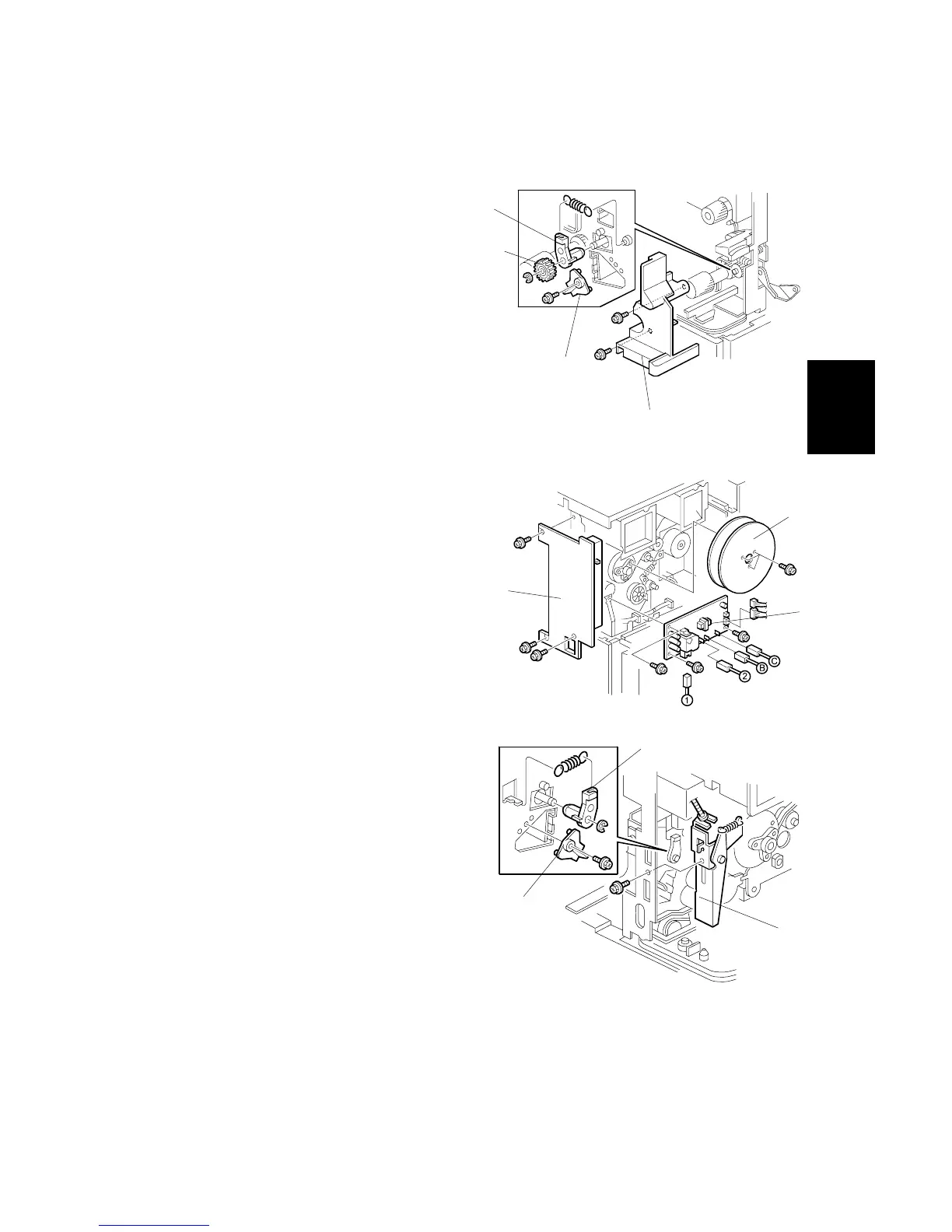

3.14.7 REGISTRATION SENSOR

1. Remove

• Front door ( 3-3)

• Rear upper cover ( 3.7.1)

• Right upper cover ( 3.5)

• Transfer belt unit (3.13.1

• PCU (3.11.1)

2. Development unit ( 3.12.1)

3. Inner cover [A] ( x2)

4. Front registration holder [B] ( x1)

5. Front registration roller gear [C] ( x1)

6. Registration roller bushing [D] (spring x 1)

7. High voltage power supply board [E]

( x3,  x6)

8. Flywheel [F] ( x3)

9. Right rear cover [G] ( x3)

10. Right cover switch bracket [H] ( x1)

11. Rear registration holder [I] ( x1)

12. Registration roller bushing [J] ( x1,

spring x1)

B195R998.WMF

B195R981.WMF

B195R982.WMF

[A]

[B]

[C]

[D]

[E]

[F]

[G]

[H]

[I]

[J]
