Ricoh A-C4 User Manual

20 June 2005 FUSING UNIT
3-65
Replacement
Adjustment
3.15.6 HOT ROLLER/PRESSURE ROLLER
1. Fusing unit ( 3.15)
2. Fusing upper and lower cover. ( 3.15.3)
3. Fusing lamps. (3.15.4)

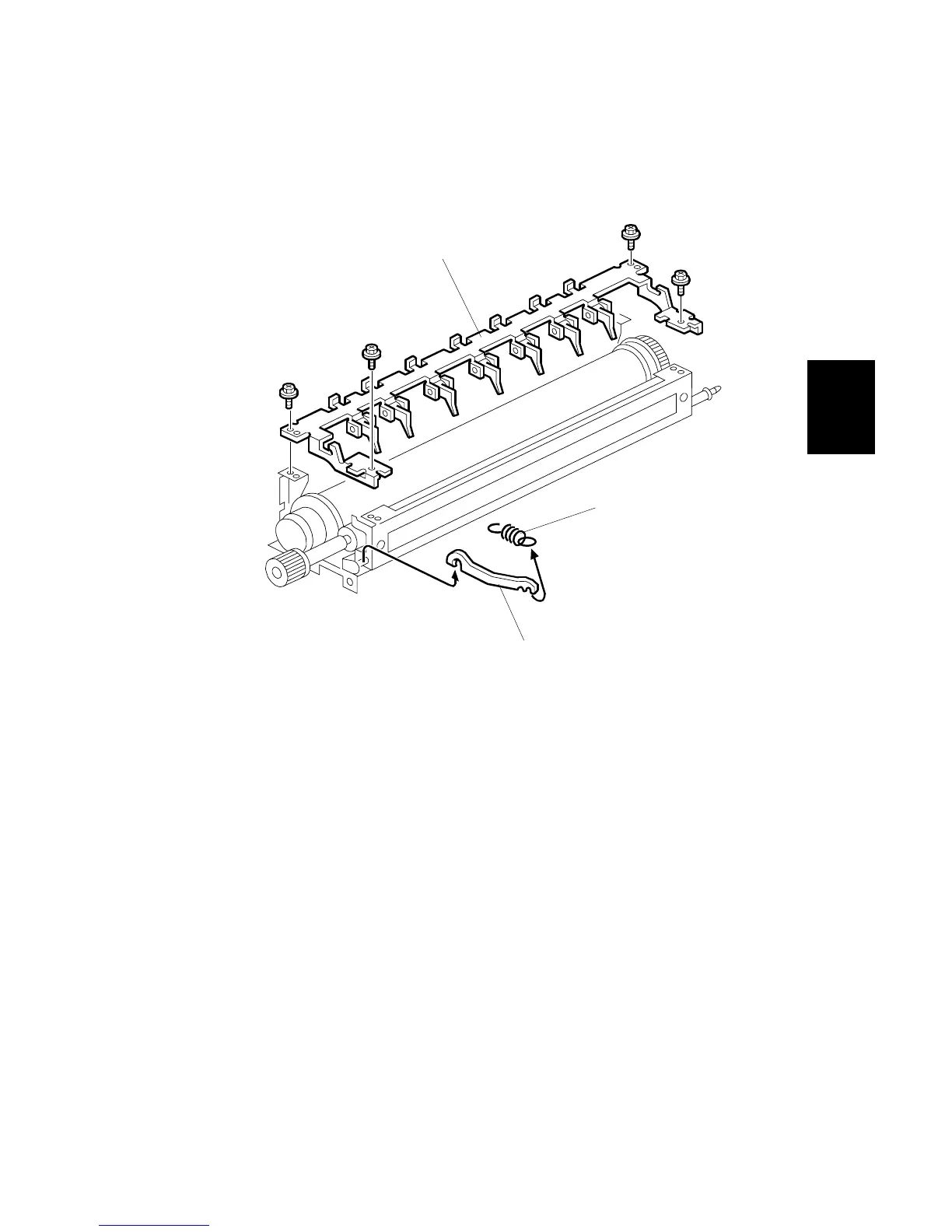

4. Springs x2 [A] (both sides)
5. Arms x2 [B] (both sides)
6. Pawl bracket [C] ( x4)
B195R997.WMF
[A]
[B]
[C]
