20 June 2005 FUSING UNIT
3-61
Replacement
Adjustment

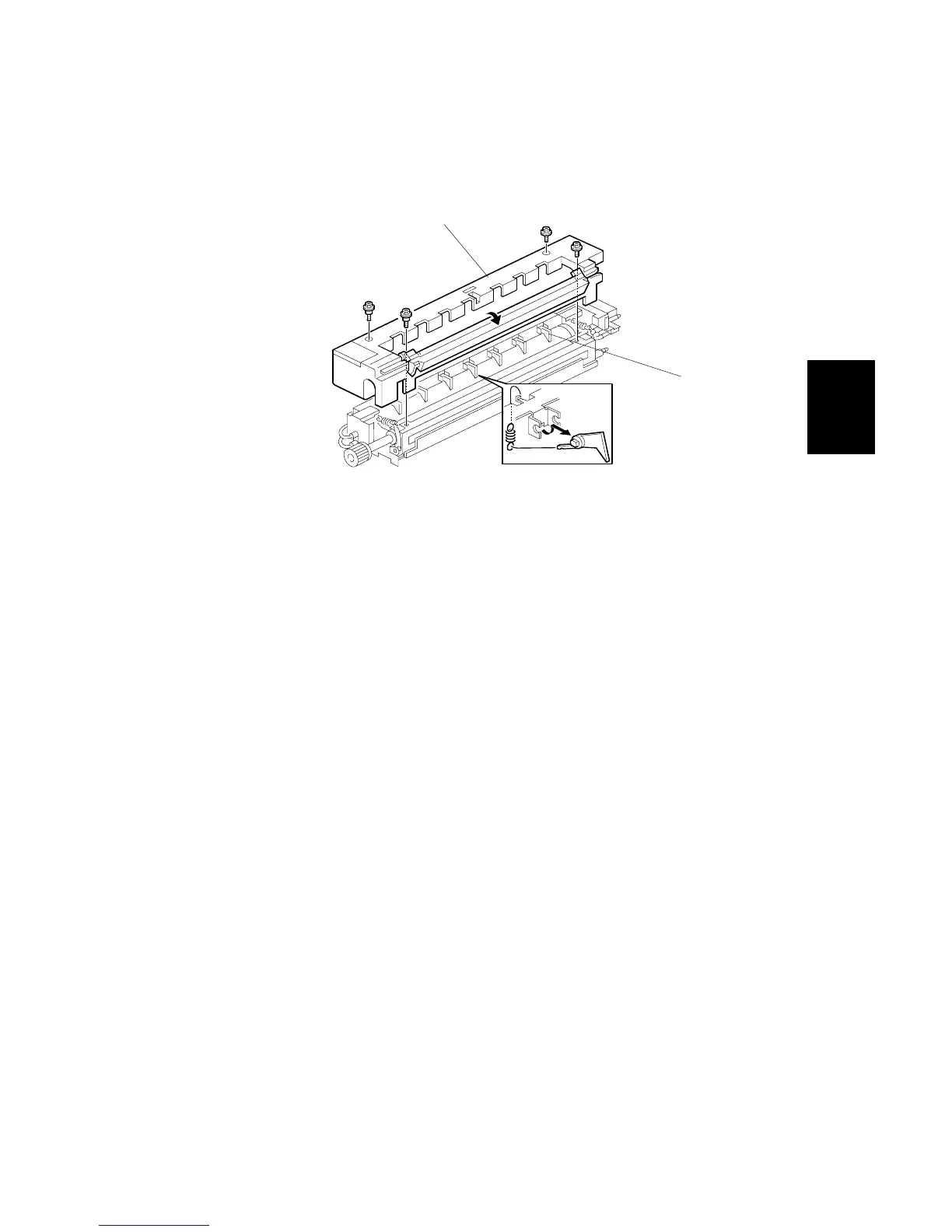

3.15.3 HOT ROLLER STRIPPERS
1. Fusing unit (3.15)
2. Fusing unit cover [A] ( x4)
NOTE: Note the positioning of the step screws x2 and the set screws x2.
3. Hot roller strippers x7 and springs x7
B195R991.WMF
[A]
[B]
