20 June 2005 FUSING UNIT
3-67
Replacement
Adjustment

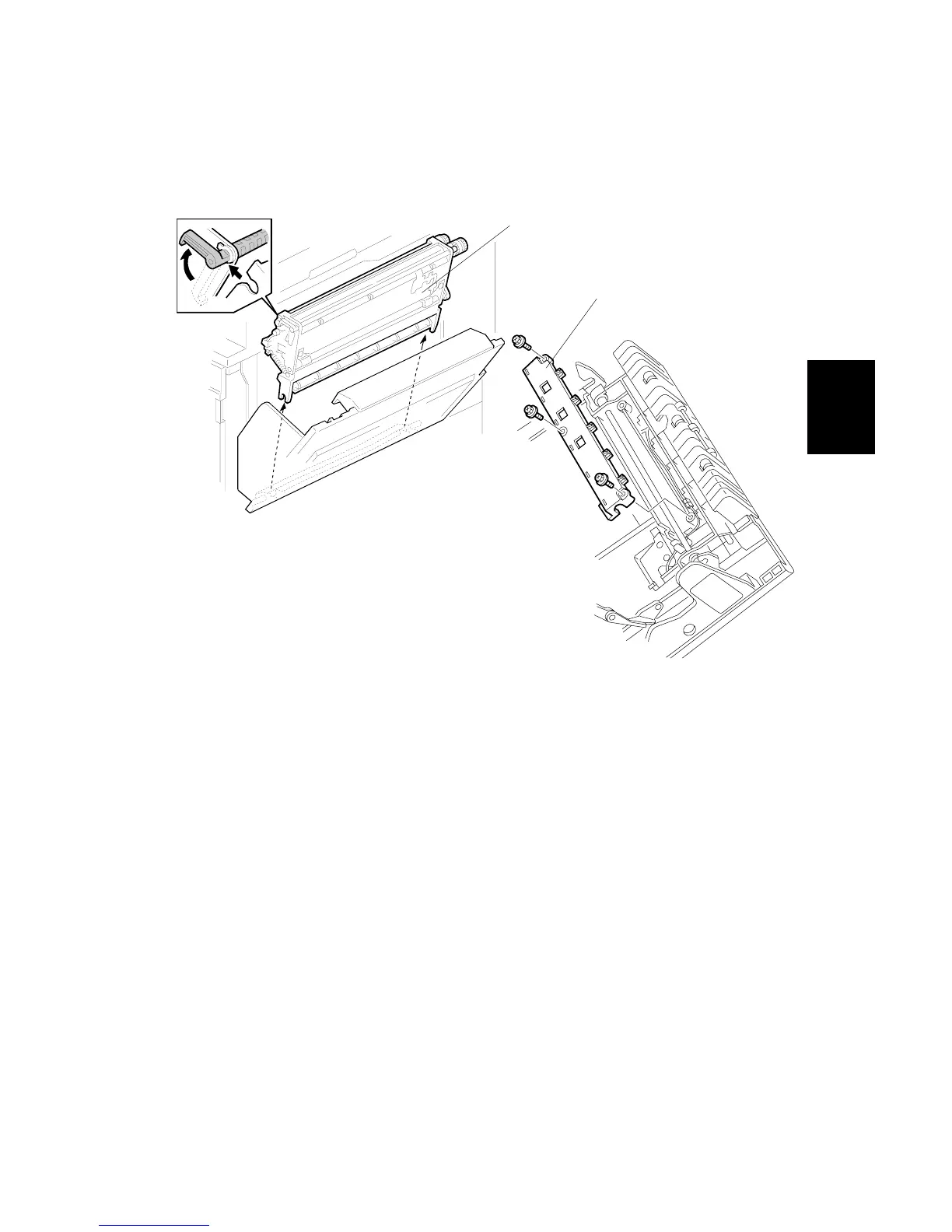

3.15.7 FUSING UNIT SIDE FAN
1. Open the duplex unit and right door.
2. Release the transfer unit [A] and remove it.
3. Remove the shaft cover [B] ( x 3).
B195R971.WMF
B195R972.WMF
[A]
[B]
