COPY ADJUSTMENTS: PRINTING/SCANNING 20 June 2005
3-96
3.21.3 ADF IMAGE ADJUSTMENT
Registration

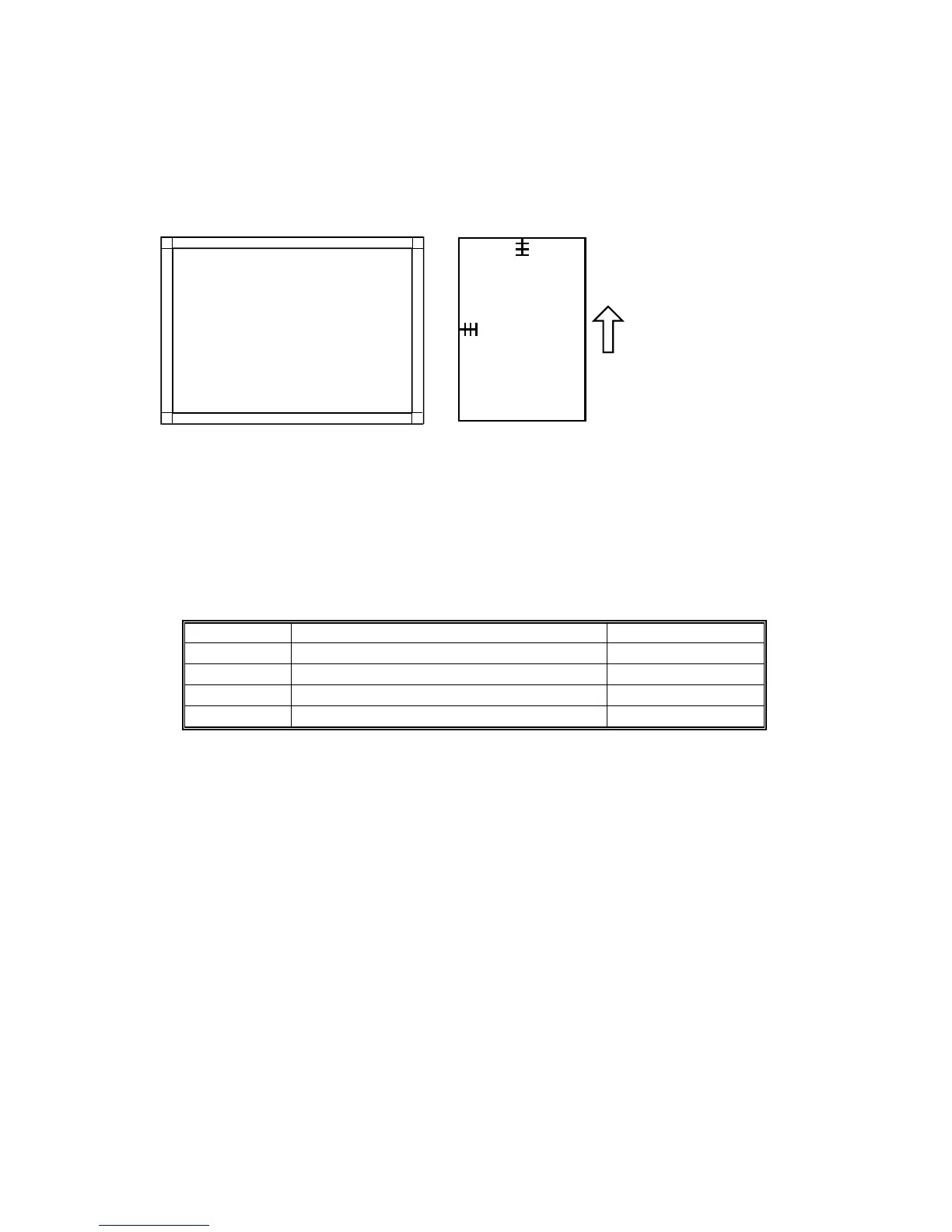

1. Make a temporary test chart as shown above using A3/DLT paper.
2. Place the temporary test chart on the ADF and make a copy from one of the
feed stations.
3. Check the registration, and adjust using the following SP modes if necessary.
SP Code What It Does Adjustment Range
SP6-006-1 Side-to-Side Registration
±3.0 mm
SP6-006-2 Leading Edge Registration (Simplex)
±3.0 mm
SP6-006-3 Leading Edge Registration (Duplex: Front)
±4.2 mm
SP6-006-4 Leading Edge Registration (Duplex: Back)
±4.2 mm
B195R9834.WMF
B
A
B195R9826.WMF
To Next Page
