MAIN MACHINE INSTALLATION 20 June 2005
1-8

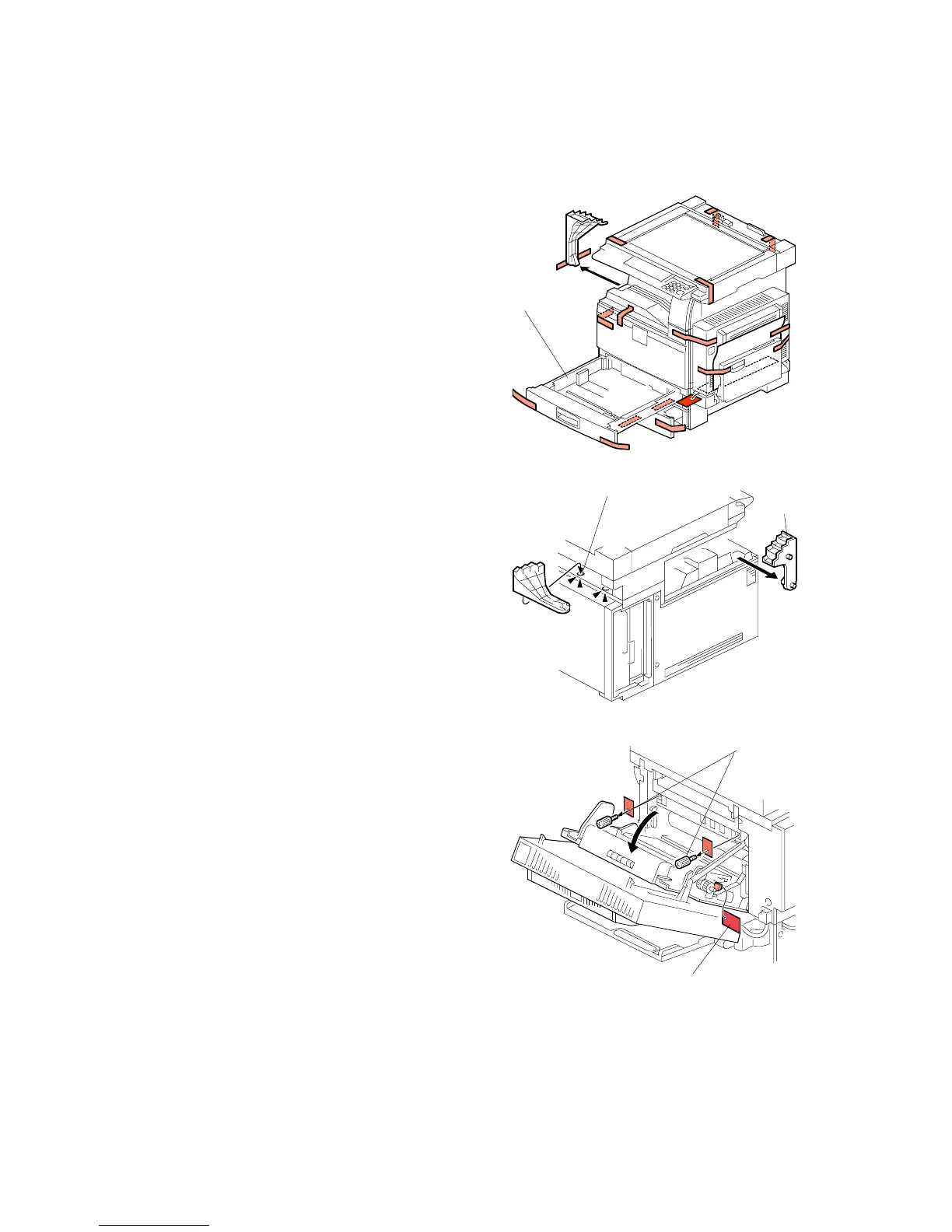

1.3.2 INSTALLATION PROCEDURE
1. Remove the main machine from the
box, and remove all shipping retainers
and tapes.
NOTE: Store all shipping retainers as
you remove them. You will need them
if the machine is moved to another
location in the future.
2. Pull out the paper trays and remove all
shipping materials [A].
3. Remove scanner cushion [B].
NOTE: Do not discard the cushion.
Store it inside the machine at [C]. You
should install it the next time you move
the machine.
4. Remove the middle front cover from
the 2nd tray.
5. On the right side of the machine, open
the by-pass tray, duplex unit, and
transfer right cover.
6. Remove the shipping screws [D] ( x2)
and tags.
7. Remove the other shipping tag [E].
NOTE: If the paper tray unit is to be
installed, do this now. (1.4)
B195I100.WMF
B195I101A.WMF
B195I102.WMF
[A]
[B]
[C]
[D]
[E]
