OVERVIEW 20 June 2005
6-4

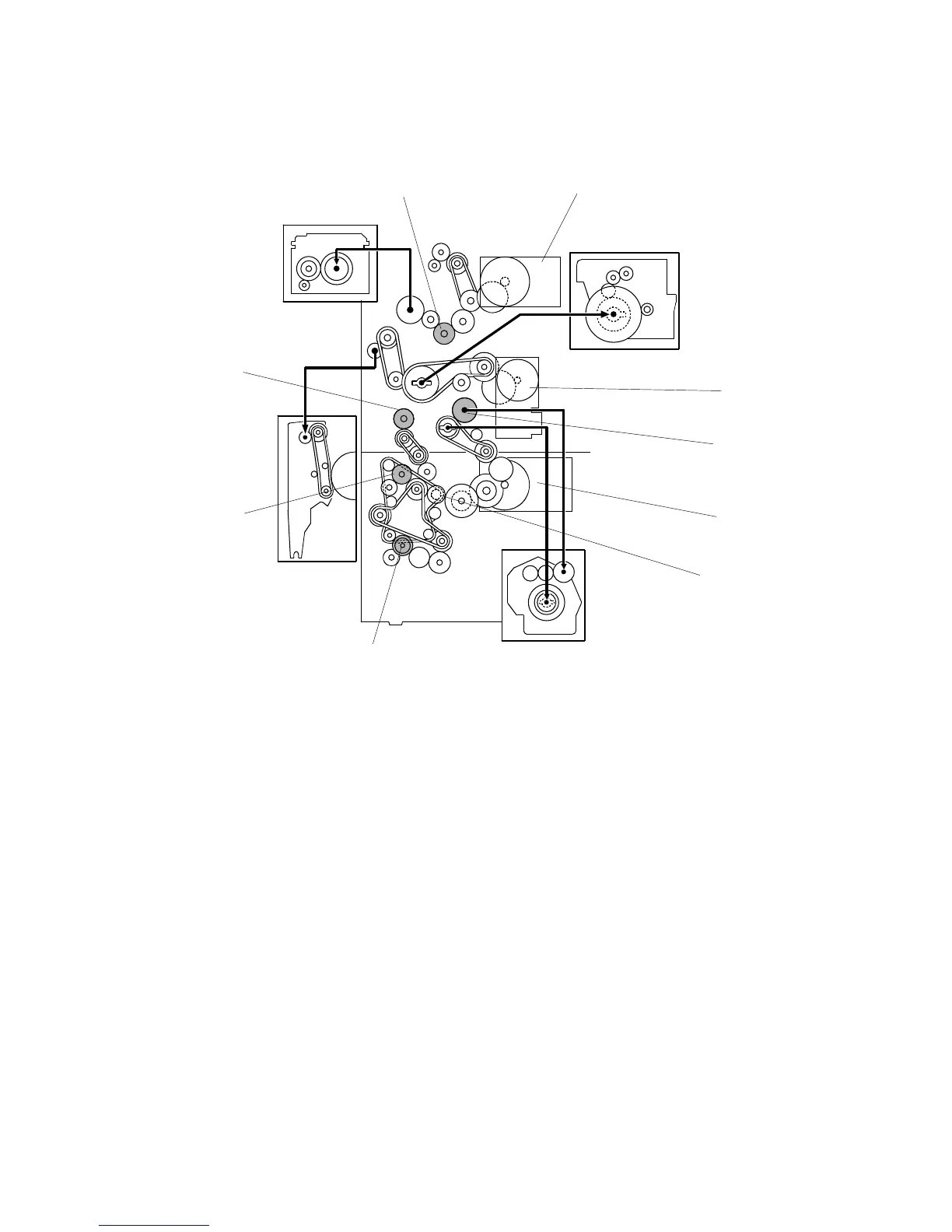

6.1.3 DRIVE LAYOUT
1 Transfer Belt Contact Clutch 6 Paper Feed/Development Motor
2 Registration Clutch 7 Development Clutch
3 Upper Paper Feed Clutch 8 Main Motor
4 Lower Paper Feed Clutch 9 Fusing/Exit Motor
5 Relay Clutch
In this machine, the development unit is provided with its own motor, separate from
the main motor.
B195D002A.WMF
Development
Transfer
PCU Drive
Fusing
1
2
3
4
5
6
7
8
9
