20 June 2005 PAPER FEED
6-73
Detailed
Descriptions
6.11.5 PAPER END DETECTION
If there is paper in the paper tray, the paper end feeler [A] is raised by the paper
stack, and the paper end sensor [B] is deactivates.
When the paper tray runs out of paper, the paper end feeler drops into the cutout
[C] in the tray bottom plate and the paper end sensor is activated.

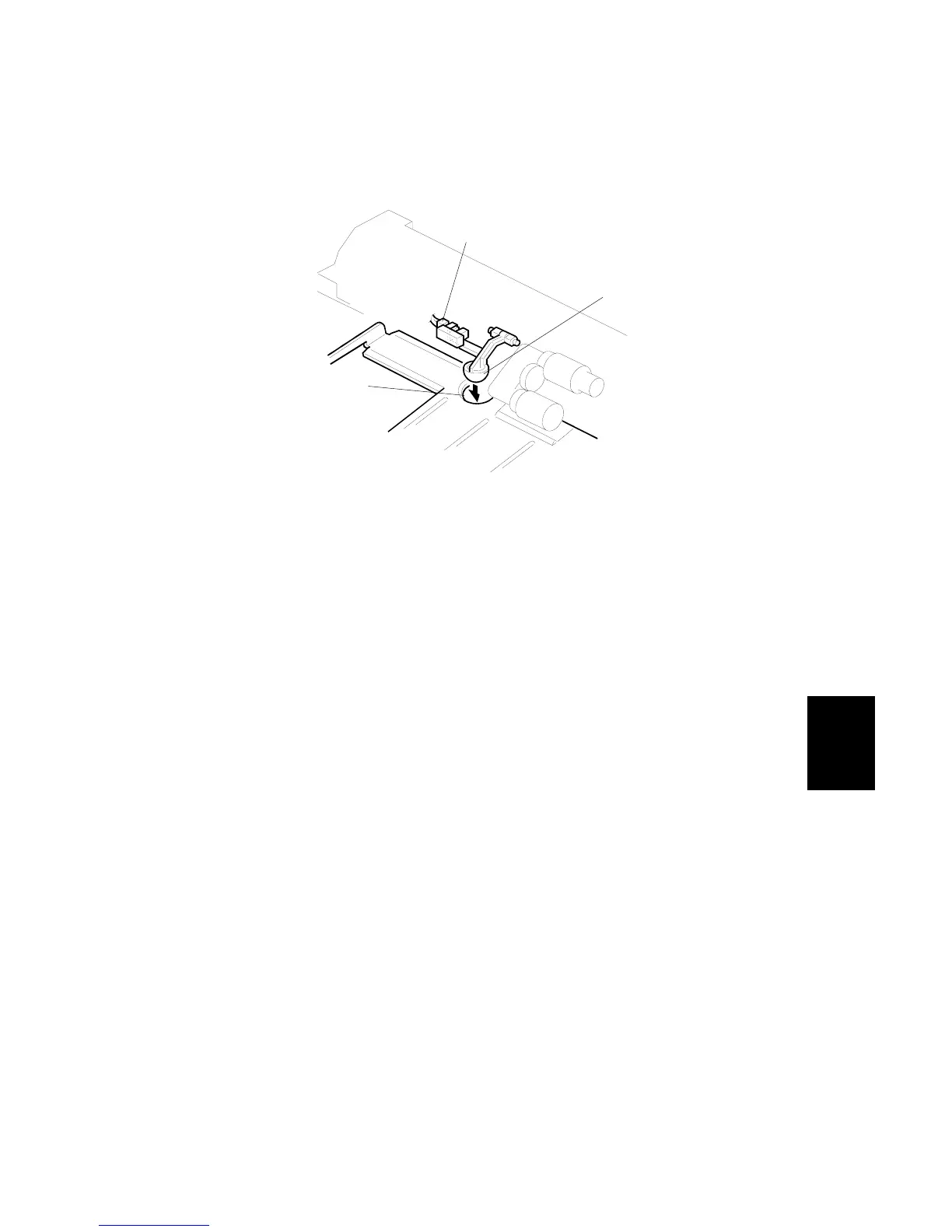

B195D954.WMF
[A]
[B]
[C]
