Ruijie RG-WLAN Series User Manual

Configuration Guide Configuring ACL
 in: Indicates that this ACL controls incoming IP packets of the interface.
out: Indicates that this ACL controls outgoing IP packets of the interface.
reflect: Indicates that the reflexive ACL is enabled.
Command
Mode
Interface configuration mode
Usage Guide
This command makes an IP ACL take effect on the incoming or outgoing packets of a specified interface.
Configuration Example
The following configuration example describes only ACL-related configurations.
 Configuring an IP ACL to Prohibit Departments Except the Financial Department from Accessing the Financial
Data Server
Scenario

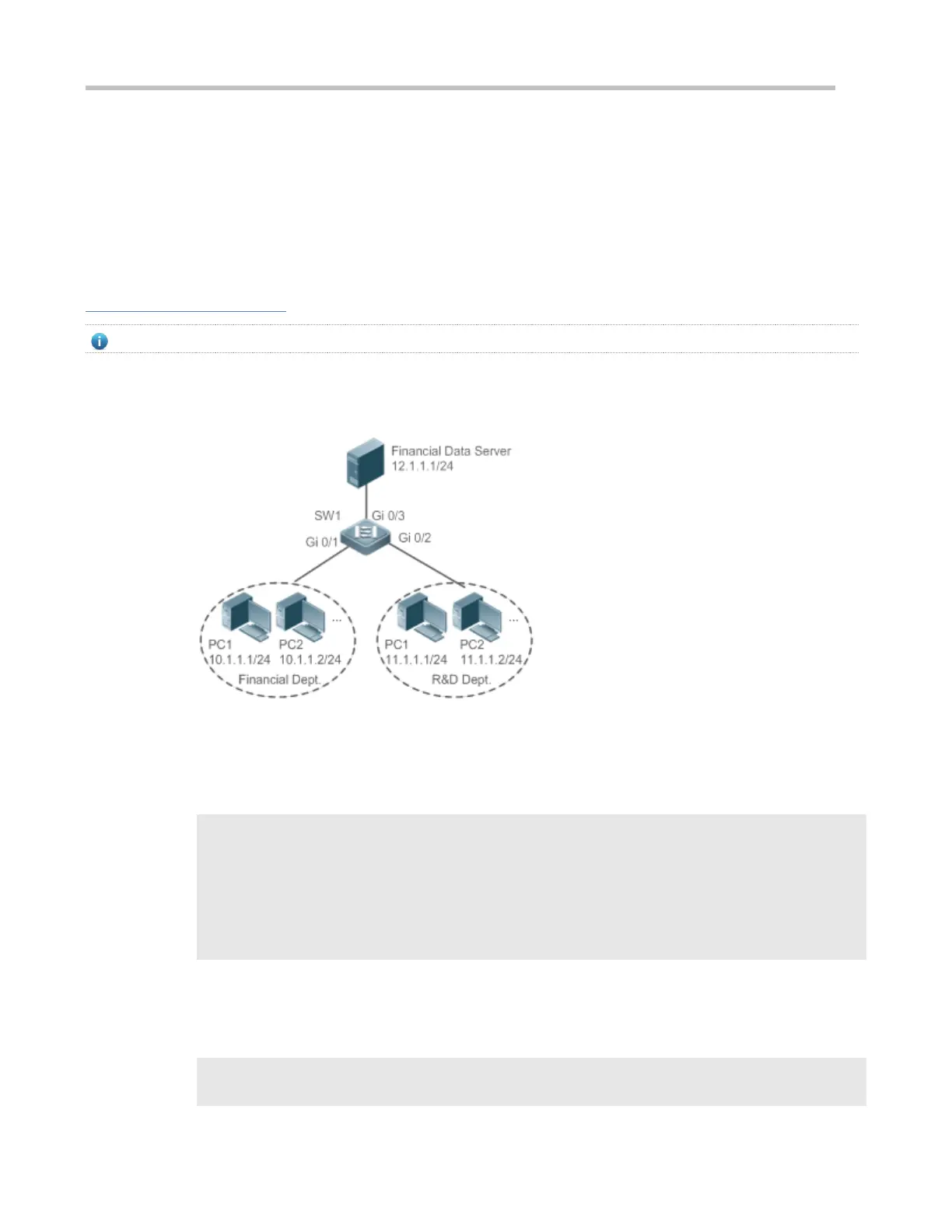

Figure 11-3
Configuration
Steps
 Configure an IP ACL.
 Add ACEs to the IP ACL.
 Apply the IP ACL to the outgoing direction of the interface connecting the financial data server.
SW1
sw1(config)#ip access-list standard 1
sw1(config-std-nacl)#permit 10.1.1.0 0.0.0.255
sw1(config-std-nacl)#deny 11.1.1.1 0.0.0.255
sw1(config-std-nacl)#exit
sw1(config)#int gigabitEthernet 0/3
sw1(config-if-GigabitEthernet 0/3)#ip access-group 1 out
Verification
 On a PC of the R&D department, ping the financial data server. Verify that the ping operation fails.
 On a PC of the financial department, ping the financial data server. Verify that the ping operation
succeeds.
SW1
sw1(config)#show access-lists
