CHECKING THE FUSES/
REPLACING THE HEADLIGHT BULBS
3-54
INSP
ADJ
WARNING
Never use a fuse with an amperage rating
other than that specified. Improvising or using
a fuse with the wrong amperage rating may
cause extensive damage to the electrical sys-
tem, cause the lighting and ignition systems
to malfunction and could possibly cause a fire.
4. Install:
•
Pannel
•
Seat

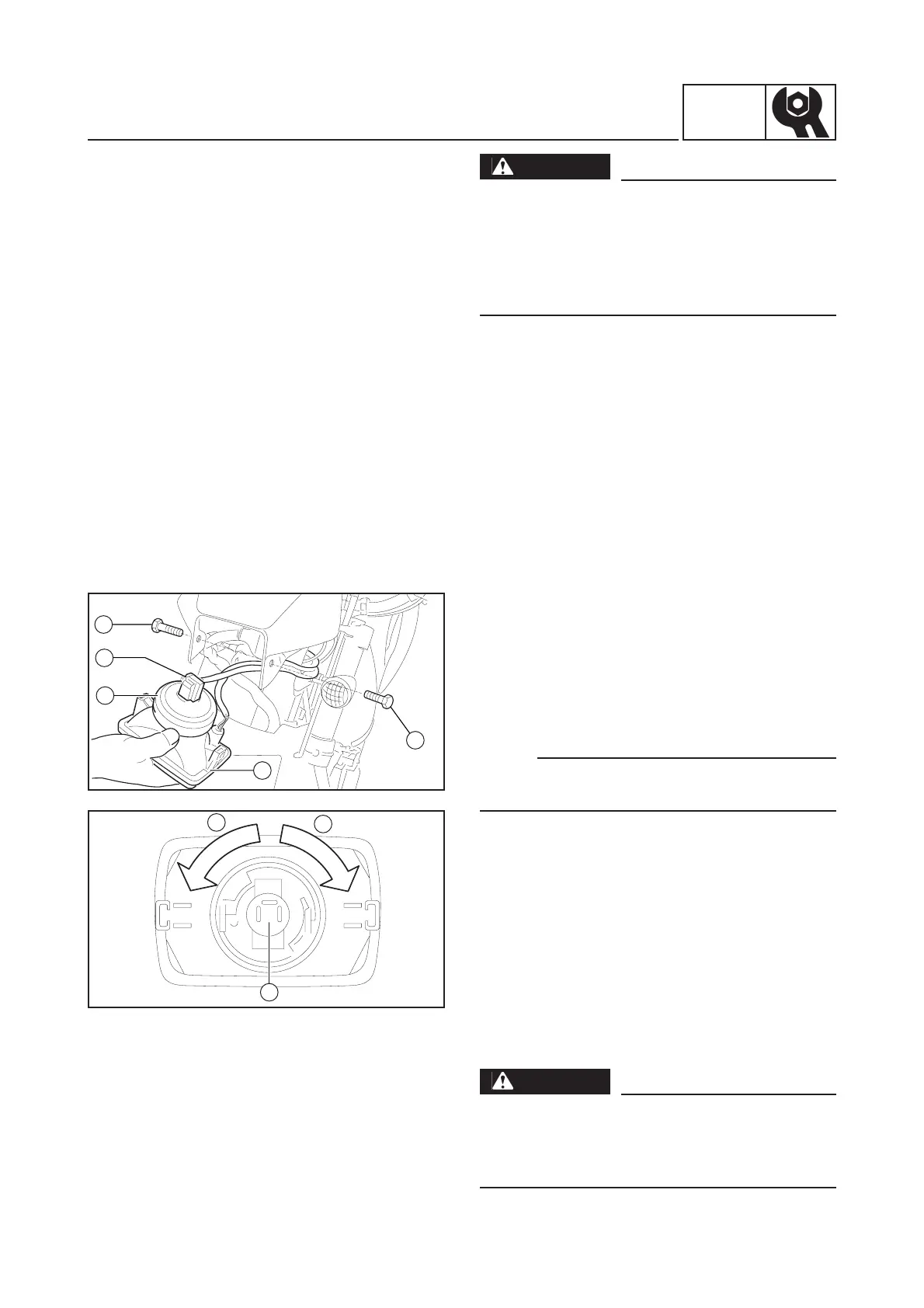

REPLACING THE HEADLIGHT BULBS
Low beam/high beam
1. Remove:
•
Cowling screws (1)
2. Remove:
•
Cowling (from the meter bracket)
NOTE:
Remove the cowling from the meter bracket by
lowering it to disengage it, and then lifting it up.
3. Remove:
•
Headlight (2)
4. Disconnect:
•
Headlight coupler (3)
5. Remove:
•
Headlight bulb cover (4)
6. Remove:
•
Headlight bulb holder (5) (by turning it
counterclockwise (a))
•
Headlight bulb
WARNING
Headlight bulbs get very hot. Therefore, keep
flammable products away from a lit headlight
bulb, and do not touch the bulb until it has
cooled down.
