ENGINE ASSEMBLY AND SETTING
5-52
ENG

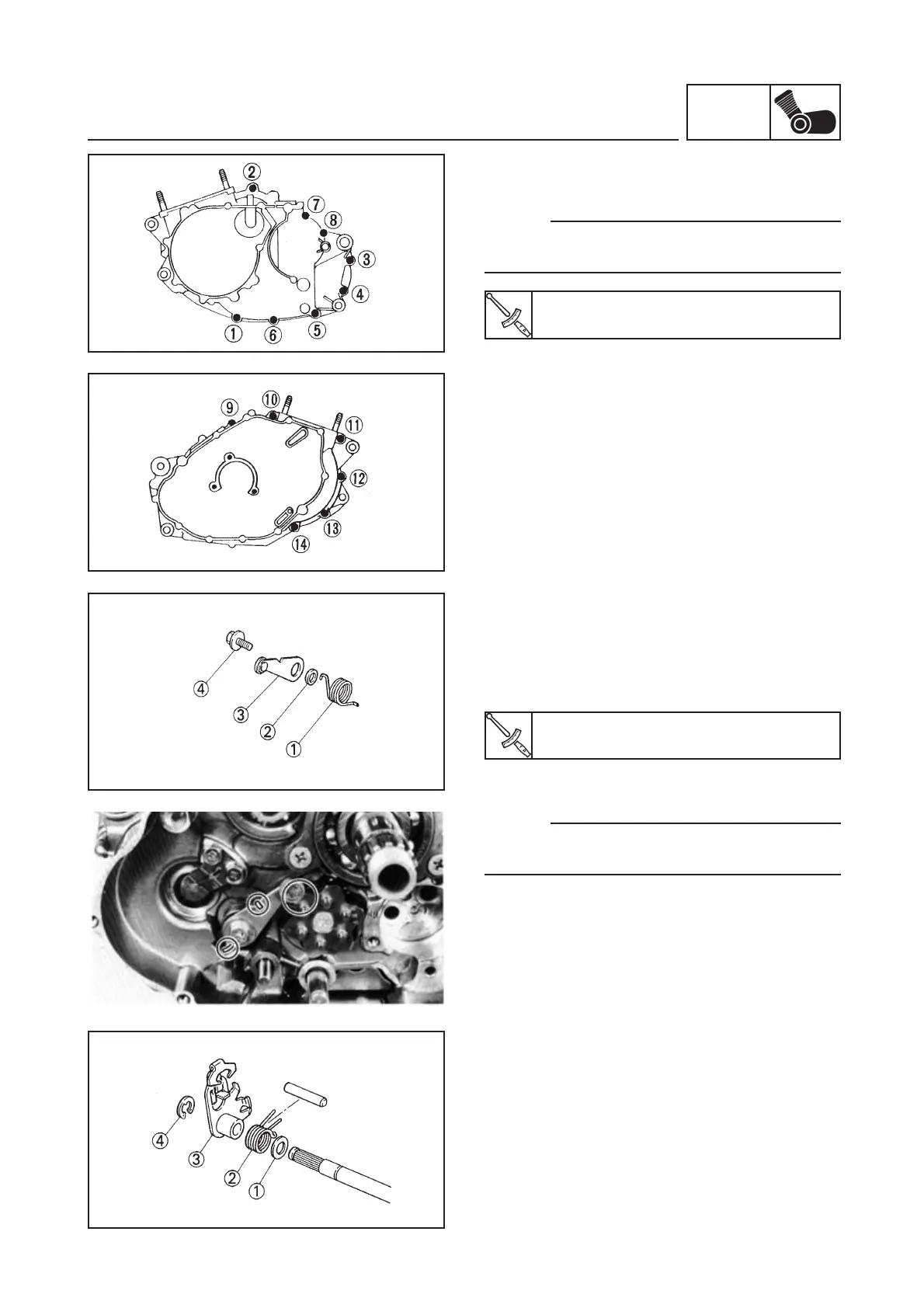

4. Tighten:
•
Screws (crankcase) (1) ~ (14)
NOTE:
Tighten the screws beginning with the one with
the lowest number.
Screw (crankcase):
10 Nm (1.0 mkg)
Stopper lever screw (4):
10 Nm (1.0 mkg)
5. Apply:
•
4-stroke engine oil
(to the connecting rod pin, the bearing and
the oil passage).
6. Check:
•
Gearbox and transmission functioning
Jerky functioning ➔ Replace.
SHIFT SHAFT AND OIL PUMP
1. Install
•
Spring (1)
•
Collar (2)
•
Stopper lever (3)
NOTE:
Place the stopper lever and the spring in the cor-
rect position.
2. Install:
•
Plate washer (1)
•
Spring (2)
•
Shift lever (3)
•
Circlip (4)
