Install the starter rim on the gear and hold
the gear firm.
•
When turning the gear rim in a clockwise
direction (A), the gear and rim must be
meshed. Otherwise, the gear is faulty and
must be replaced.
•
When the gear rim is turned in a anti-
clockwise direction (B), it must turn freely.
Otherwise, the gear is faulty and must be
replaced.
INSPECTION AND REPAIR
5-38
ENG

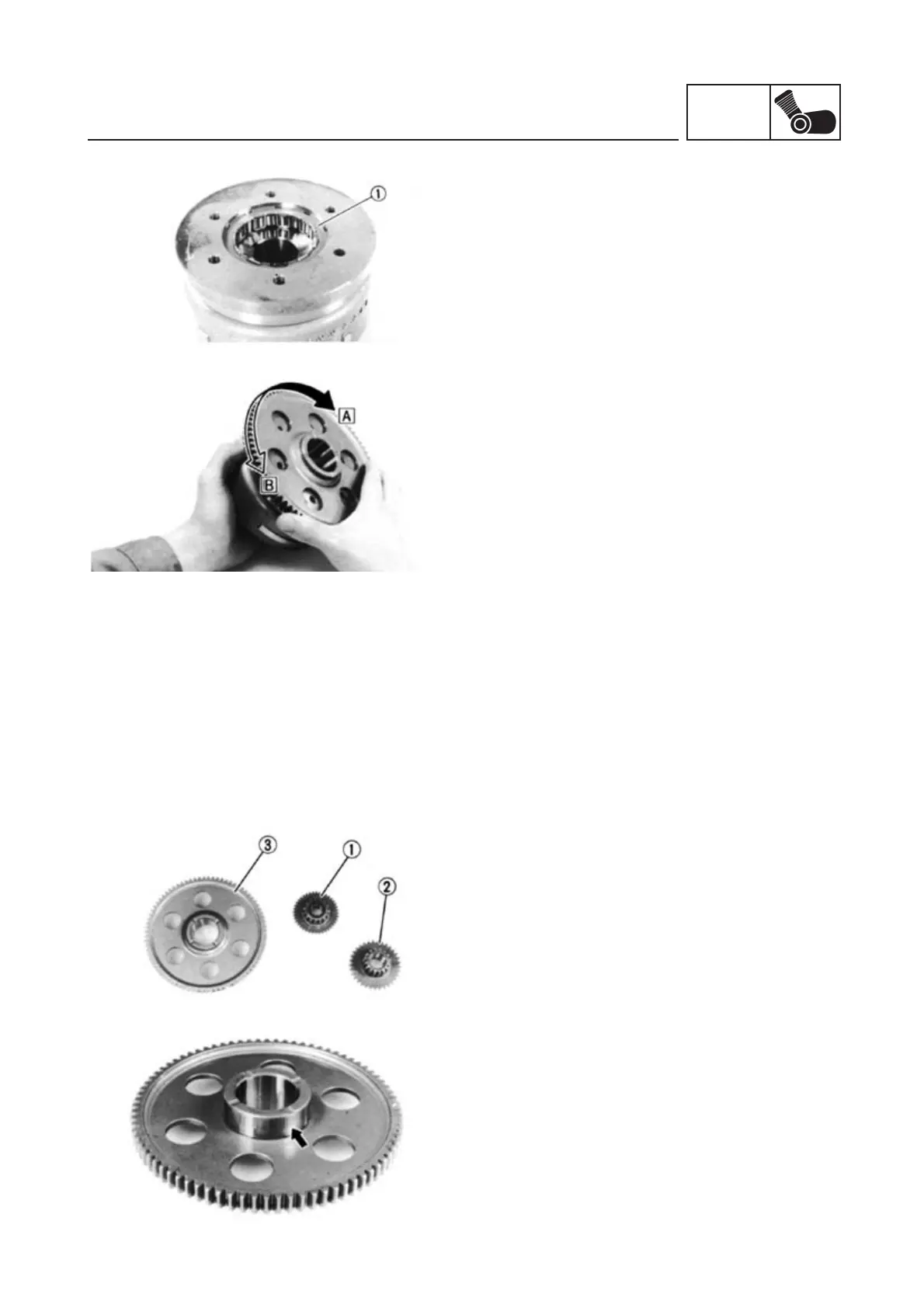

STARTER TRANSMISSION
1. Check:
•
Starter clutch functioning (1).
Turn the clutch in the direction indicated
by the arrow.
Irregular functioning/Damage ➔ Replace
the clutch.
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
2. Inspect:
•
Starter neutral gear teeth (1)
•
Starter neutral gear teeth (2)
•
Starter rim teeth (3)
Burrs/Shavings/Roughness/Wear ➔
Replace.
3. Inspect:
•
Starter rim (contact surfaces)
Pitting/Wear/Damage ➔ Replace.
