3-21

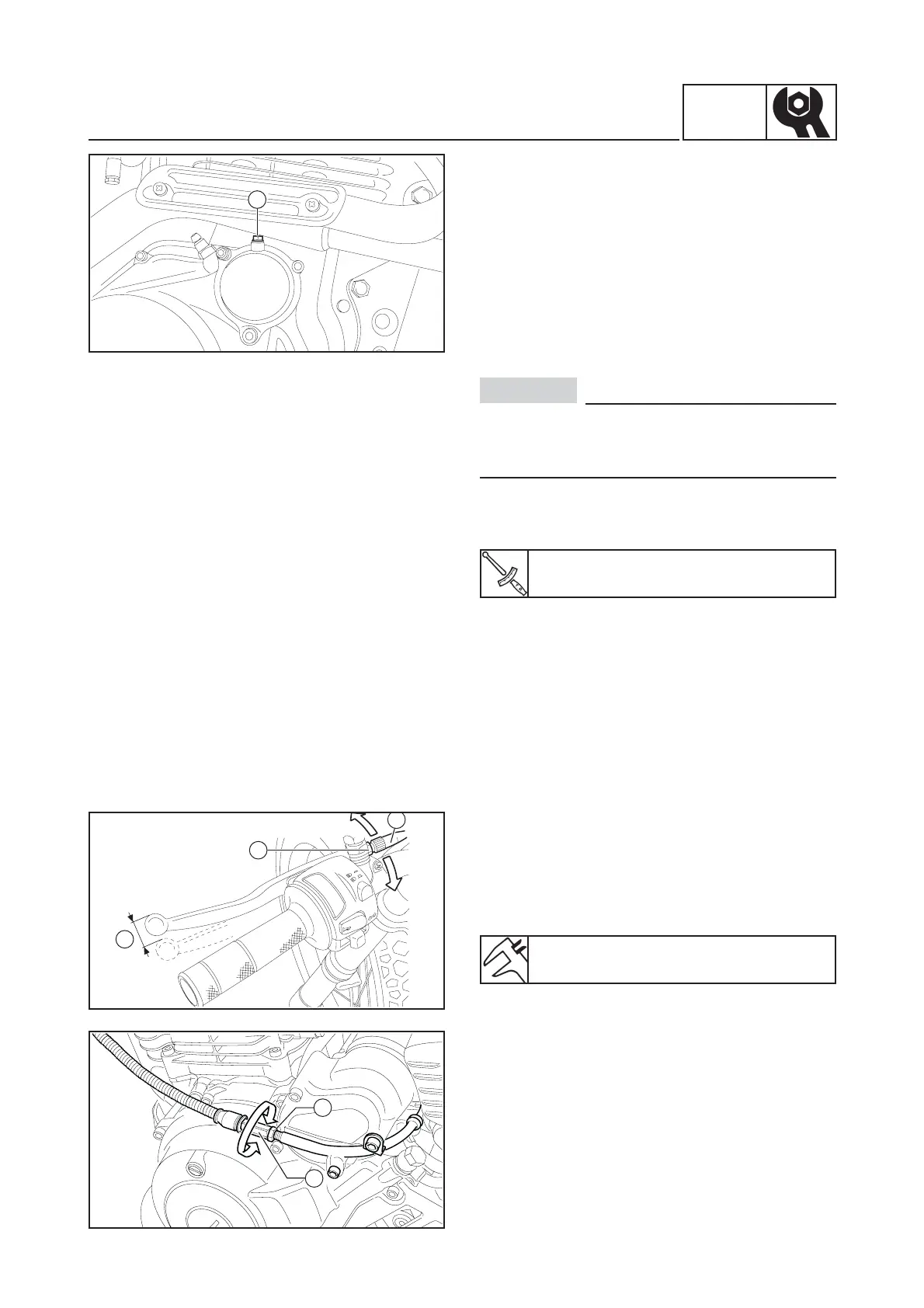

ENGINE OIL PRESSURE CHECK/
CLUTCH ADJUSTMENT
2
1
a
1
2
ENGINE OIL PRESSURE CHECK
1. Remove:
•
Bleeder screw (1)
2. Start the engine and keep it idling until oil
flows out of the bleed hole.
3. Inspect:
•
Conditions of oil at bleeder hole.
Oil leakage ➔ Oil pressure good.
No leakage ➔ Pressure insufficient.
If the oil does not come out after one minute,
stop the engine immediately to prevent
seizure.
4. Tighten:
•
Bleeder screw
CAUTION:
Bleeder screw:
5 Nm (0.5 kgm)
CLUTCH ADJUSTMENT
Cable free play adjustment
1. Check:
•
Clutch free play adjustment (a)
Out of specification ➔ Adjust.
Free play:
10 ~ 15 mm
2. Adjust:
•
Clutch cable free play
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
Adjustment:
•
Loosen lock nuts (1).
•
Turn the adjuster (2) either way to obtain cor-
rect free play.
•
Tighten lock nuts after adjustment.
1
