CHAS
REAR SHOCK ABSORBER
4-69

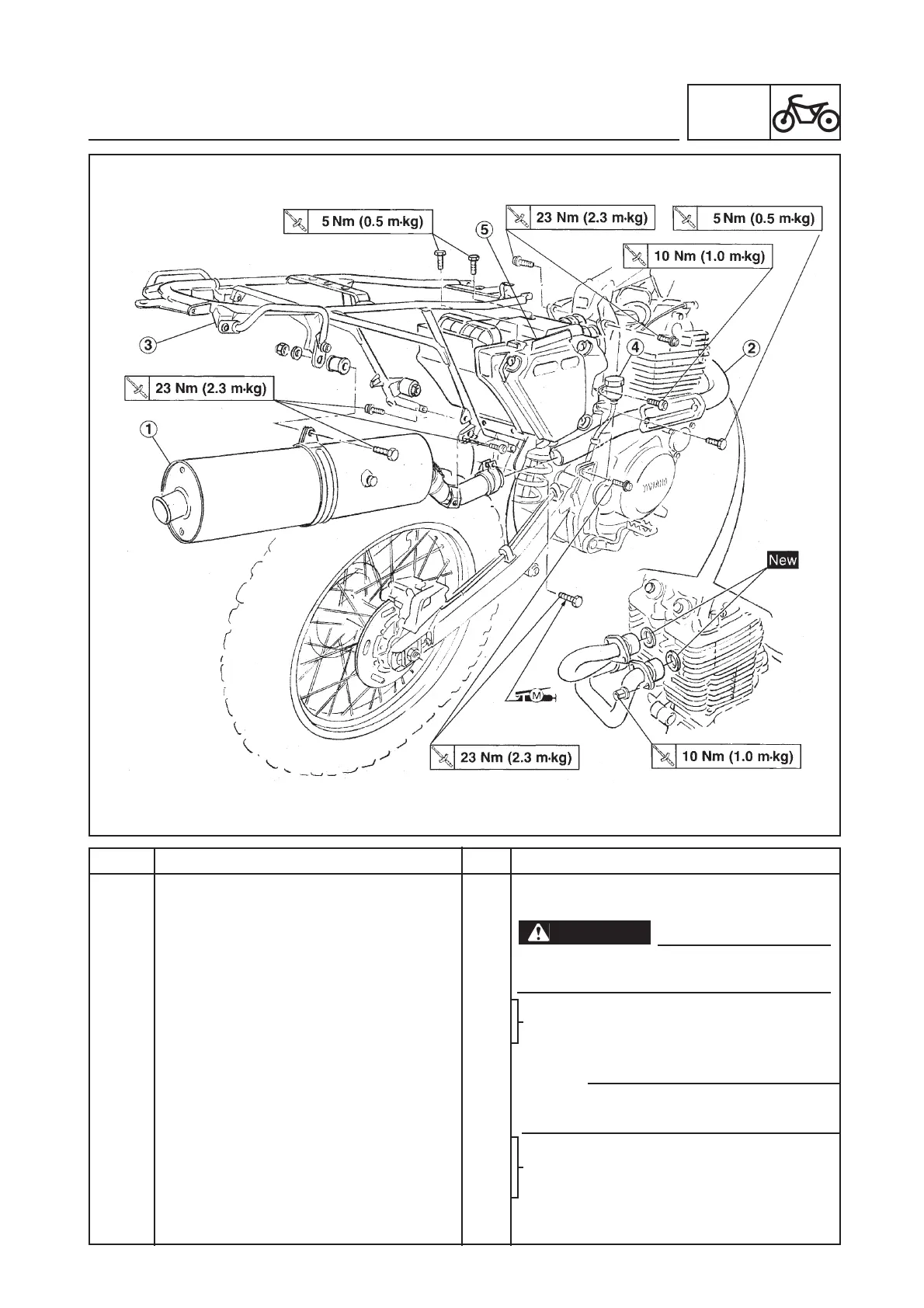

Order Job name/Part name Q.ty Remarks
Shock absorber removal Remove the parts in order.
WARNING
Securely support the motorcycle so
there is no danger of it falling over.
Seat
Refer to “SEAT, FUEL TANK AND REAR
Fuel tank
Rear cowling
COWLING” section in Chapter 3.
Battery leads 2 Disconnect.
NOTE:
First, disconnect the negative lead, then the
positive lead.
1 Muffler 1
2 Exhaust pipe assembly 1 Refer to “REAR SHOCK ABSORBER RE-
3 Rear frame 1 MOVAL” section.
4 Brake fluid reserve tank 1 Secure the brake fluid tank to the frame in
5 Air filter case 1 an upright position to avoid air entering the
hydraulic system.
To Next Page
