REAR BRAKE
4-32
CHAS

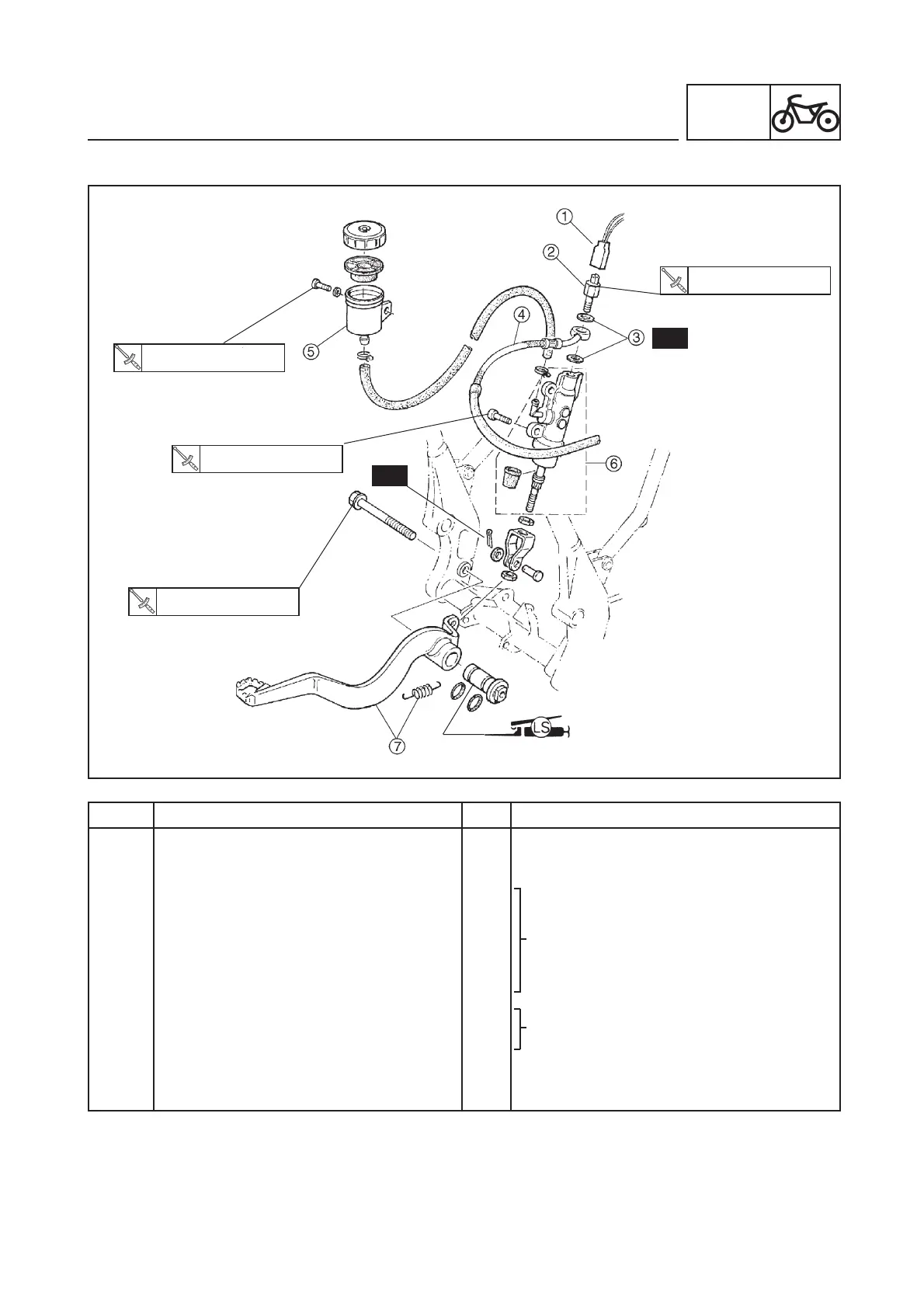

MASTER CYLINDER
Order Job name/Part name Q.ty Remarks
Master cylinder removal Remove the parts in order.
Brake fluid Drain.
1 Rear stop switch connector 1
2 Rear stop switch 1
3 Plain washer 2 Refer to “MASTER CYLINDER INSTALLA-
4 Brake hose 1 TION” section.
5 Brake fluid reserve tank 1
6 Brake master cylinder 1
Refer to “BRAKE PEDAL REMOVAL” sec-
7 Brake pedal/spring 1/1
tion.
Reverse the removal procedure for installa-
tion.
New
New
20 Nm (2.0 m
•
kg)
45 Nm (4.5 m
•
kg)
10 Nm (1.0 m
•
kg)
4 Nm (0.4 m
•
kg)
