2-22
SPEC

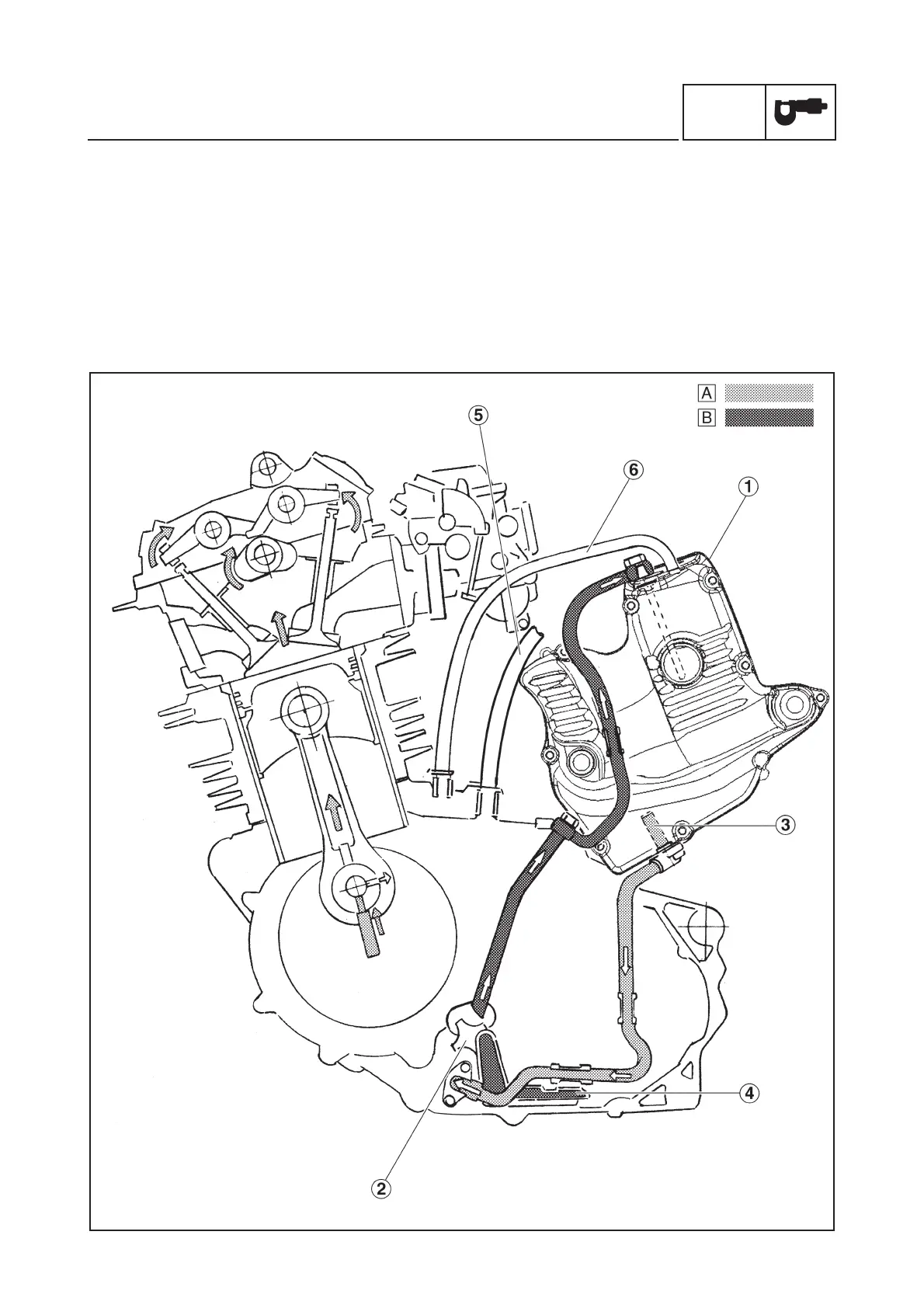

LUBRICATION LAYOUT
LUBRICATION LAYOUT
(1) Oil tank
(2) Oil pump
(3) Oil filter (oil tank)
(4) Oil strainer (engine)
(5) Oil vapour retrieval hose
(6) Oil blow-by retrieval hose
[A] DELIVERY
[B] RETRIEVAL
